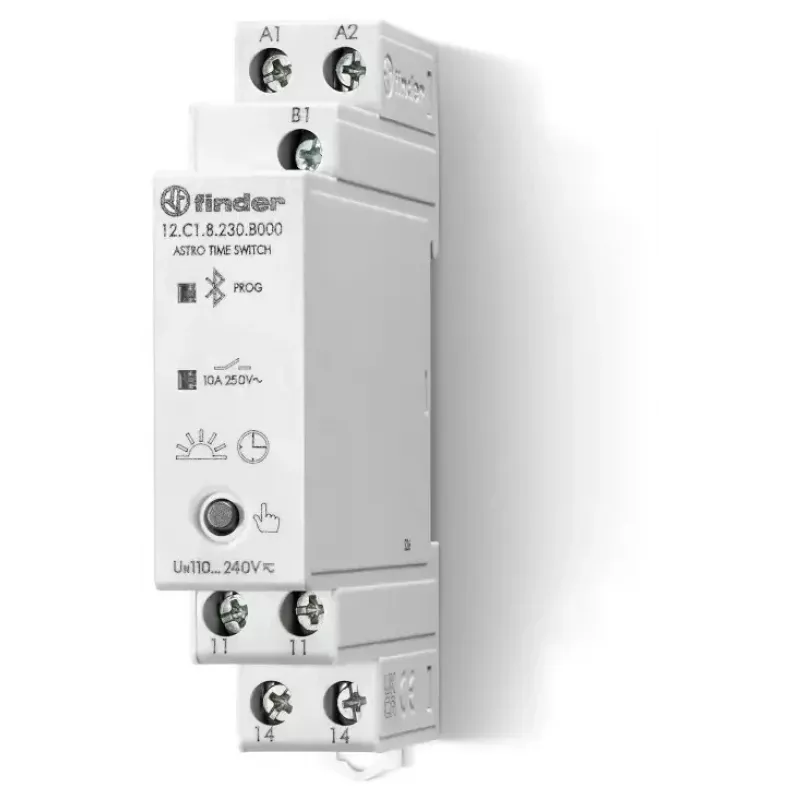

Finder 12.C1.8.230.B000 digitale astro-weekklok, 1 kanaal, 16 A, 230 V AC, DIN-rail

The Finder 12.C1.8.230.B000 is a digital astronomical weekly time switch designed for precise control of lighting, HVAC, and other electrical loads. With its built-in astro function, it automatically calculates sunrise and sunset times based on geographical coordinates, making it ideal for outdoor lighting and energy-saving applications. The device features a backlit LCD display and intuitive joystick programming, along with NFC connectivity for easy setup via the Finder Toolbox App.

Advantages

This time switch offers exceptional flexibility with 50 daily/weekly programs and 30 astronomical programs. The 6-year power reserve ensures settings are retained during power outages. The holiday program and manual override provide additional convenience. Its compact 2-module DIN rail design saves space in electrical panels.

Suitable for

• Outdoor lighting control (street, garden, facade)
• Heating and ventilation scheduling
• Industrial automation timing
• Energy management in commercial buildings

Key specifications

• Supply Voltage: 230 V AC (50/60 Hz)
• Number of Channels: 1
• Contact Configuration: 1 CO (Changeover)
• Max. Switching Current: 16 A
• Max. Switching Power (AC1): 4000 VA
• Mounting: DIN Rail (EN 60715), 2 modules
• Programming: Astronomical, Daily, Weekly, Pulse, Cycle
• Power Reserve: 6 years (replaceable battery)
• Number of Programs: 50 (Daily/Weekly) + 30 (Astronomical)
• Display: Backlit LCD
• Interface: Joystick, NFC (with Finder Toolbox App)
• Astro Function: Sunrise/Sunset with programmable offset
• Operating Temperature: -20°C to +50°C
• Protection: IP20 (terminals), IP40 (front panel)

Recommendations

For optimal performance, use with Finder Toolbox App for NFC programming. Ensure proper DIN rail mounting and observe local electrical codes. The device is suitable for both residential and commercial applications.
