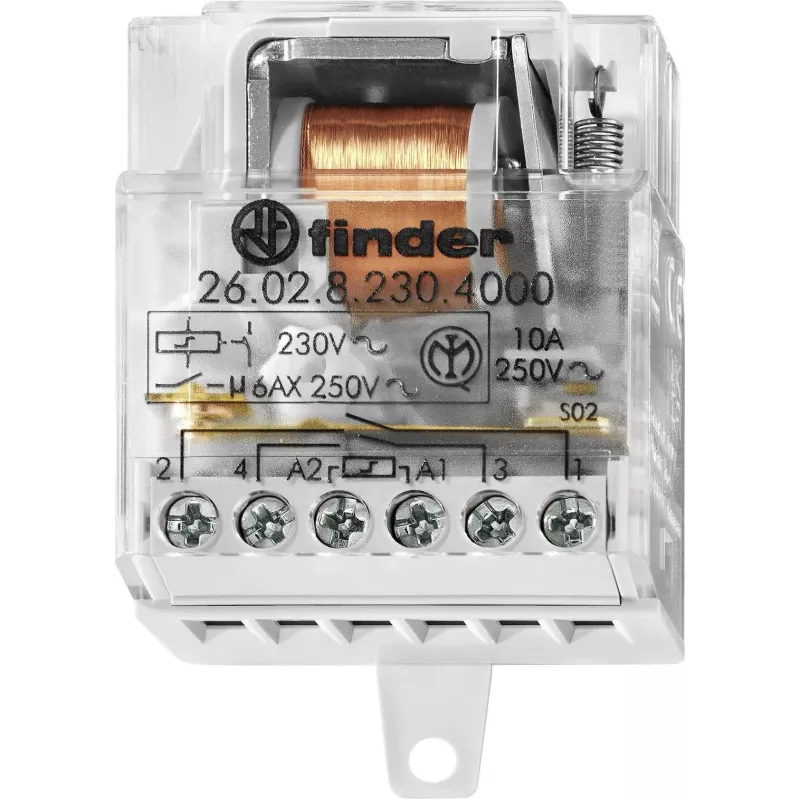

Finder 26.02.8.230.4000 impulsrelais 2NO 10A 230V AC DIN-rail

Impulse relay with 2 normally open contacts, rated for 10 A switching current at 250 V AC. The 230 V AC coil enables latching operation from multiple pushbuttons, maintaining state without continuous coil power.

Advantages

DIN rail mounting in a compact 17.5 mm housing. Silver nickel contacts provide reliable switching for resistive and lamp loads. Mechanical endurance of 1,000,000 cycles and electrical life of 100,000 cycles at rated load.

Suitable for

• Lighting control from multiple points
• Staircase timers and corridor lighting
• Control of small motors and contactors

Key specifications

• Coil voltage: 230 V AC (50/60 Hz)
• Contact configuration: 2 NO
• Rated current: 10 A (AC1)
• Max switching voltage: 250 V AC
• Max switching power: 2500 VA
• Lamp load: incandescent 1000 W, halogen 1000 W, fluorescent compensated 500 W
• Operating temperature: -40 to +40 °C
• Module width: 17.5 mm (1 module)

Recommendations

Use with illuminated pushbuttons; verify coil consumption of 15 VA for circuit sizing.
