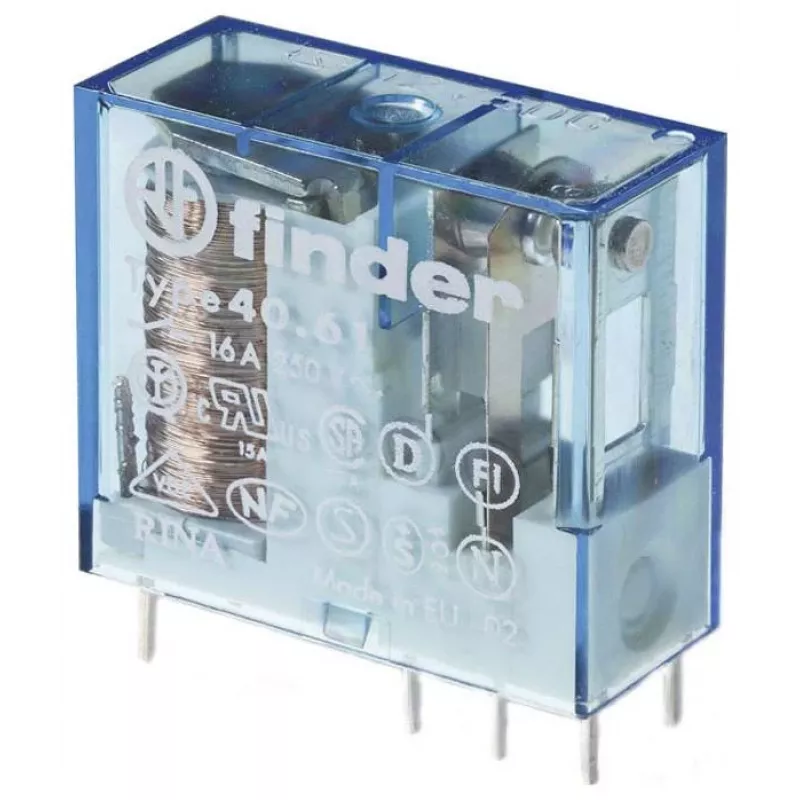

Finder 40.61.7.024.1001 PCB-relais 24V DC 1 CO 10A

The Finder 40.61.7.024.1001 is a PCB mount relay with a 24V DC coil and a single changeover contact rated for 10A, offering a compact solution for switching loads up to 250V AC. Its flux-proof construction (RT I) and wide operating temperature range make it suitable for demanding industrial applications.

Highlights

• 1 CO (SPDT) contact configuration
• 10A rated contact current
• 24V DC coil with 0.5W power consumption
• PCB mount with 5 pins
• Flux-proof (RT I) protection

In daily use

This relay is ideal for PCB-mounted control circuits where reliable switching is required. The AgNi contact material ensures long electrical life, while the high dielectric strength provides safe isolation between coil and contacts.

Full specifications

• Contact configuration: 1 CO (Changeover)
• Rated contact current: 10 A
• Rated contact voltage: 250 V AC
• Coil voltage: 24 V DC
• Coil power (DC): 0.5 W
• Contact material: AgNi (Silver Nickel)
• Mounting type: PCB (Printed Circuit Board)
• Terminal type: PCB Pins
• Dielectric strength (coil-contact): 5000 V AC
• Dielectric strength (open contacts): 1000 V AC
• Operating temperature range: -40 to +85 °C
• Electrical life (at rated load): 100,000 operations
• Mechanical life: 10,000,000 operations
• Protection degree: RT I (Flux proof)
• Approvals: UL, VDE, RINA, CSA
• Number of pins: 5
• Insulation resistance: >1000 MΩ
• Switching power (AC1): 2500 VA

Final note

A reliable PCB relay from Finder, engineered for consistent performance in control applications.
