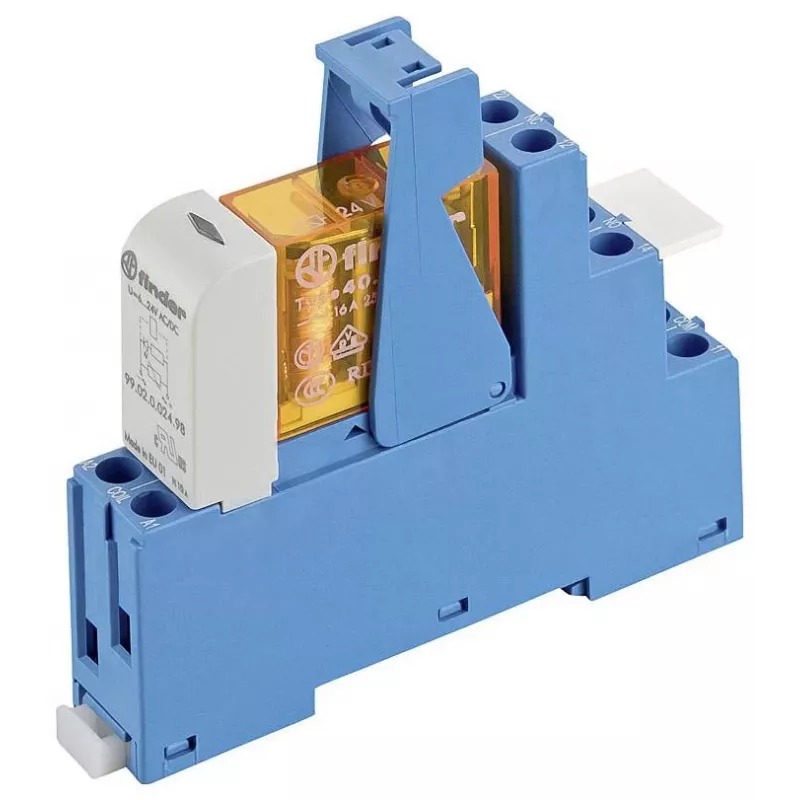

Finder 48.61.8.230.1060 interfacerelaismodule, 230 V AC spoel, 1 CO, 16 A

With a 6 kV impulse withstand voltage between coil and contacts, the Finder 48.61.8.230.1060 interface relay module delivers robust isolation in industrial control systems. This DIN-rail mountable unit handles 16 A switching current with a single changeover contact, making it suitable for demanding automation tasks.

Overview

The Finder 48.61 series relay module combines a 230 V AC coil with a 1 CO (SPDT) contact rated for 16 A at 250 V AC. The AgNi contact material ensures reliable switching of resistive loads up to 4000 VA. Designed for 35 mm DIN rail mounting, it offers IP20 terminal protection and operates across a wide temperature range from -40 to +70 °C.

What stands out

• High isolation: 6 kV impulse withstand voltage between coil and contacts
• Compact DIN-rail module with 16 A switching capability
• Wide operating temperature range: -40 to +70 °C
• Long mechanical life: 10 million cycles
• Silver-nickel contacts for reliable performance

Technical details

• Coil voltage: 230 V AC
• Contact configuration: 1 changeover (1 CO / SPDT)
• Rated switching current: 16 A (AC1)
• Rated switching voltage: 250 V AC
• Maximum switching voltage: 400 V AC
• Rated switching power: 4000 VA
• Contact material: AgNi
• Coil power consumption: 6 VA (0.8 W)
• Dielectric strength coil-contact: 6 kV (1.2/50 µs)
• Dielectric strength open contacts: 1000 V AC
• Electrical life: 100,000 cycles at 16 A / 250 V AC
• Mechanical life: 10,000,000 cycles
• Mounting: 35 mm DIN rail
• Protection degree: IP20 (terminals)
• Operating temperature: -40 to +70 °C

Our verdict

A reliable interface relay module with high isolation and robust switching performance, ideal for industrial automation and control panel applications.
