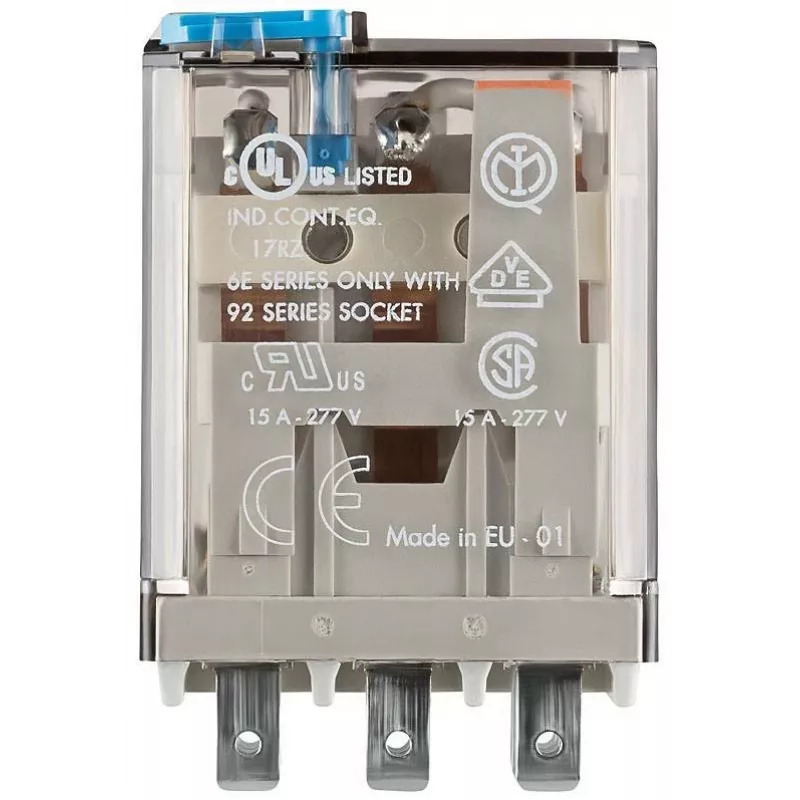

Finder 62.33.9.220.4300 steekvermogensrelais 220 V DC 16 A 3PDT

The Finder 62.33.9.220.4300 is a plug-in power relay with a 220 V DC coil and 3PDT contacts rated for 16 A, making it a robust choice for demanding switching applications. Its 11-pin socket mounting allows for easy installation and replacement in industrial control panels.

Highlights

• Coil voltage: 220 V DC
• Contact configuration: 3PDT (3 changeover)
• Rated current: 16 A
• Plug-in mounting with 11 pins
• Silver nickel (AgNi) contacts

In daily use

This relay handles high-current loads reliably, with a mechanical life of 5,000,000 operations and an electrical life of 100,000 operations at rated load. It operates within a temperature range of -40 to +70 °C, suitable for harsh environments.

Full specifications

• Coil voltage: 220 V DC
• Contact configuration: 3PDT (3 changeover)
• Rated current: 16 A
• Rated voltage (contacts): 250 V AC
• Contact material: AgNi (Silver Nickel)
• Coil power: 1.7 W
• Dielectric strength (coil-contacts): 2500 V AC
• Dielectric strength (open contacts): 1000 V AC
• Operating temperature range: -40 to +70 °C
• Electrical life: 100,000 operations
• Mechanical life: 5,000,000 operations
• Number of pins: 11

Final note

A reliable plug-in relay for high-current switching with a 220 V DC coil.
