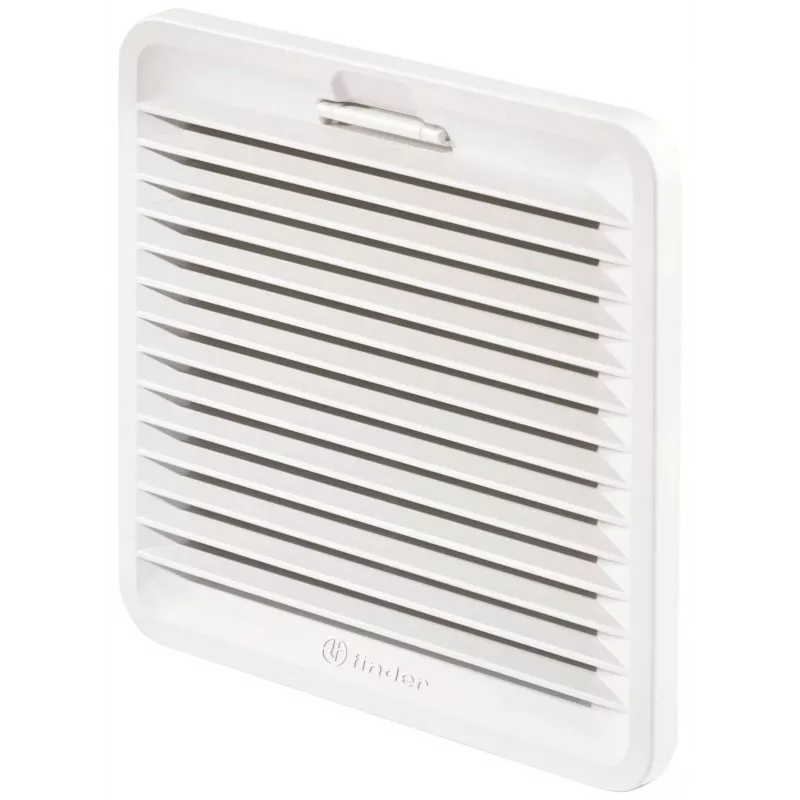

Finder 7F.02.0.000.5000 Uitlaatfilter voor schakelkastventilatoren van de serie 7F.20, G3, IP54, lichtgrijs

In control cabinets where heat builds up, the Finder 7F.02.0.000.5000 outlet filter keeps airflow clean and directed. It mounts onto the exhaust side of a 7F.20 series fan, trapping dust and fibers before they escape back into the room. Maintenance teams in industrial automation and building services rely on this filter to protect both the cabinet and the surrounding environment.

Key specifications

• Product type: Outlet filter
• Compatible fan series: Finder 7F.20
• Filter class: G3
• IP protection rating: IP54
• Frame material: ABS
• Filter media material: Synthetic fiber
• Colour: RAL 7035 (light grey)
• Mounting type: Snap-in / screw mounting
• Operating temperature range: -10 to +55 °C
• Cut-out dimensions (L x W): 124 x 124 mm
• External dimensions (L x W): 148 x 148 mm
• Depth from panel: 16 mm
• Flammability rating: UL 94 V-0
• Gasket material: Polyurethane foam
• Airflow direction: Exhaust
• Application: Control cabinet ventilation

Why choose it

The G3 filter media captures coarse particles, while the ABS frame withstands daily use. The IP54 rating means the filter resists dust and splashing water, keeping the cabinet interior clean. The included polyurethane foam gasket ensures a tight seal against the panel, preventing unfiltered air from bypassing the filter.

Ideal use cases

• Control cabinets in dusty industrial environments
• Enclosures with 7F.20 series exhaust fans
• HVAC and building automation panels
• Any application requiring filtered exhaust air

Good to know

The filter is designed for exhaust airflow, so it should be mounted on the outlet side of the fan. Its snap-in or screw mounting options allow quick installation or replacement. The light grey RAL 7035 colour blends with most control cabinets.
