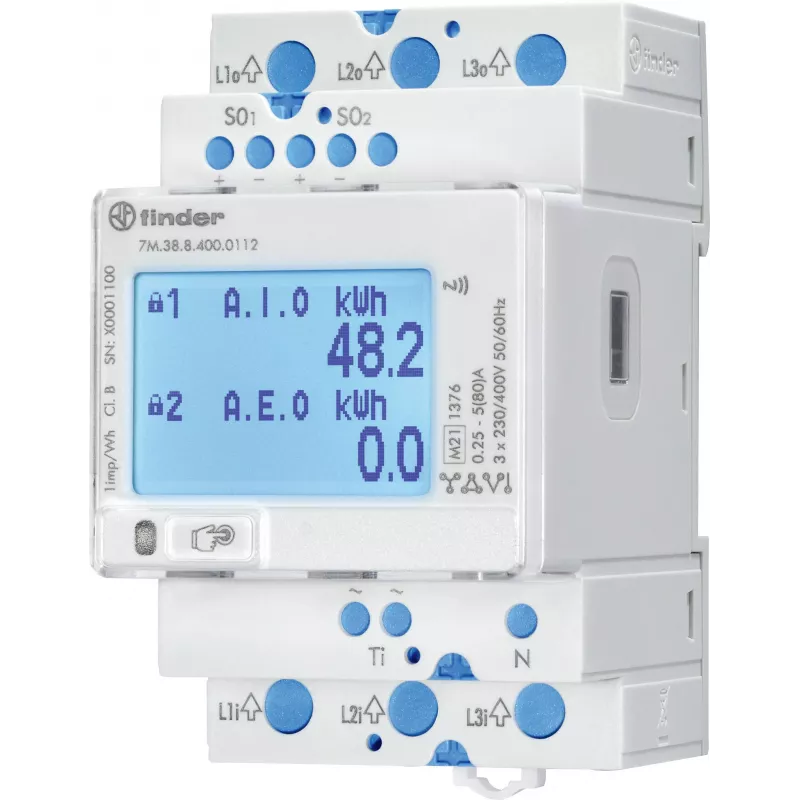

FINDER 7M.38.8.400.0112 driefasige digitale energiemeter 80 A, Modbus RTU, MID-gecertificeerd, DIN-rail

The FINDER 7M.38.8.400.0112 is a digital three-phase energy meter designed for direct connection up to 80 A. It measures active and reactive energy, voltage, current, power, power factor, frequency, and THD, with data accessible via Modbus RTU (RS485) and an S0 pulse output. Its backlit LCD and compact 4-module DIN rail housing make it suitable for sub-metering and energy management in industrial and commercial installations.

Highlights

• Direct measurement up to 80 A, no external current transformers required
• Modbus RTU (RS485) interface for integration with building management systems
• S0 pulse output (1000 imp/kWh) for remote reading or verification
• MID certified (Class B active energy) for billing applications
• Backlit LCD with 8 digits for clear reading in low light
• Compact 4-module DIN rail mounting (70 mm width)

In daily use

Install the meter on a DIN rail in a distribution board. Connect the three phases, neutral, and load conductors. The meter immediately displays total and partial energy consumption. For remote monitoring, connect the RS485 terminals to a Modbus master and poll the registers for real-time data. The S0 output can be wired to a pulse counter or building controller for demand-based control.

Full specifications

• Meter type: Digital three-phase energy meter
• Maximum current: 80 A
• Nominal voltage: 3x230/400 V AC
• Frequency: 50/60 Hz
• Accuracy class (active energy): Class B (EN 50470-3)
• Accuracy class (reactive energy): Class 2 (EN 62053-23)
• Display: LCD, backlit, 8 digits
• Communication interface: Modbus RTU (RS485)
• Pulse output: S0 (1000 imp/kWh)
• Measured parameters: Active energy, reactive energy, voltage, current, power, power factor, frequency, THD
• Mounting: DIN rail (EN 60715)
• Number of modules: 4 (70 mm)
• Protection degree (front): IP50
• Protection degree (terminals): IP20
• Operating temperature range: -25°C to +55°C
• MID certified: Yes (Module B + D)
• Starting current: 20 mA
• Max. cable cross-section: 25 mm² flexible, 16 mm² solid
• Power consumption: < 2 W / 10 VA per phase

Final note

This meter is suitable for direct connection in three-phase systems up to 80 A and provides reliable energy data for billing or monitoring.
