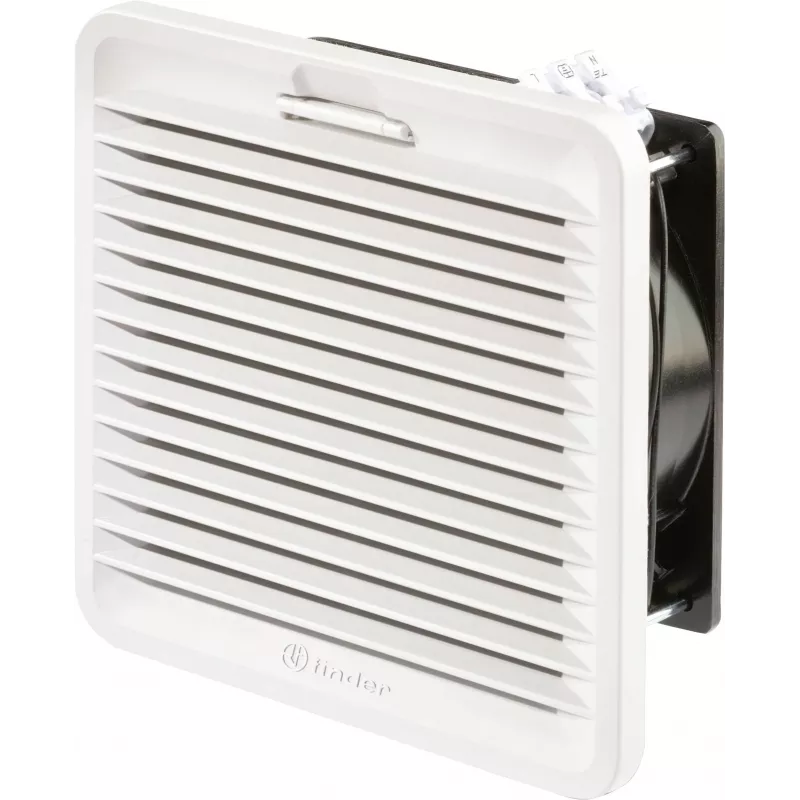

Finder filterventilator 55 m³/h 22 W blazend 7F.80.8.230.2055

With a free-air airflow rate of 55 m³/h and a 22 W power consumption, this Finder filter fan keeps enclosures cool and clean. The blowing airflow direction pushes filtered air outward, protecting internal components from dust and overheating.

Overview

The Finder 7F.80.8.230.2055 is a compact filter fan designed for snap-in mounting in electrical enclosures. It operates on 230 V AC at 50/60 Hz, making it suitable for a wide range of industrial and commercial applications. The fan features a standard filter mat that traps airborne particles, ensuring clean airflow and extending the life of enclosed equipment.

What stands out

• IP54 protection degree against dust and water splashes
• Snap-in mounting for quick and tool-free installation
• ABS plastic housing for durability and light weight
• Low noise level of 40 dB(A) for quiet operation
• Wide operating temperature range from -10 to +55 °C

Technical details

• Airflow rate (free air): 55 m³/h
• Rated voltage: 230 V AC
• Frequency: 50/60 Hz
• Power consumption: 22 W
• Noise level: 40 dB(A)
• Protection degree: IP54
• Operating temperature: -10 to +55 °C
• Airflow direction: blowing (outward from enclosure)
• Mounting type: snap-in
• Cut-out dimensions: 124 x 124 mm
• External dimensions (front): 150 x 150 mm
• Total depth: 77 mm
• Filter type: standard filter mat
• Housing material: ABS plastic
• Connection type: screw terminals

Our verdict

A reliable and efficient filter fan for enclosure climate control, offering solid airflow, IP54 protection, and easy installation.
