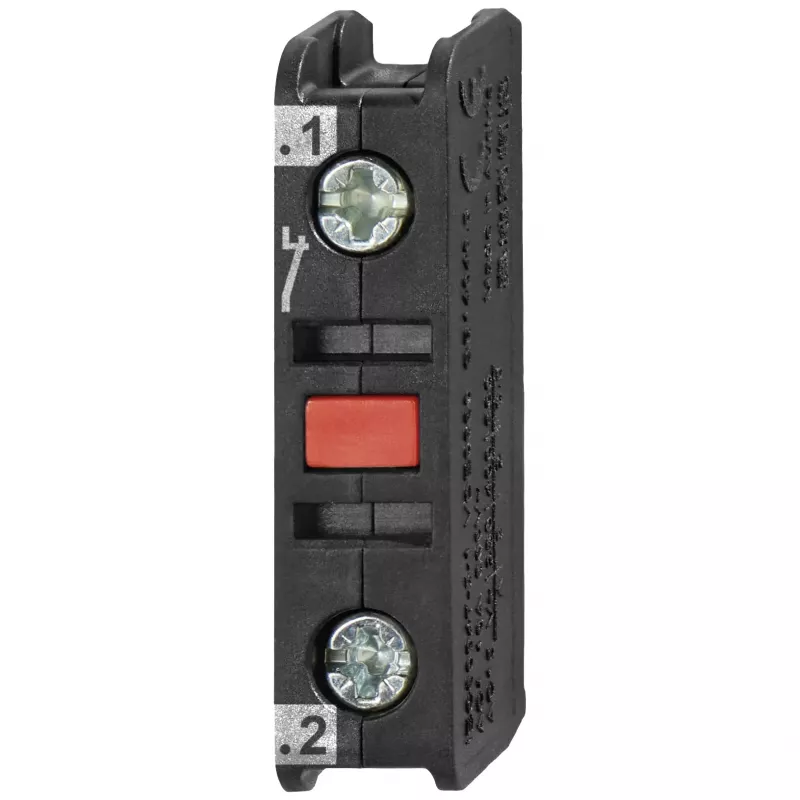

Finder hulpcontactblok voor 6K.13 en 6K.14 bewakingsrelais (06K.12)

For control panel builders and maintenance technicians working with Finder 6K.13 and 6K.14 monitoring relays, the 06K.12 auxiliary contact block adds a changeover contact to expand switching capability. It mounts directly to the side of the relay, providing a 6 A SPDT contact for signaling or control circuits.

Key specifications

• Contact configuration: 1 CO (SPDT)
• Rated current: 6 A
• Rated voltage: 250 V AC
• Contact material: AgNi
• Mounting: side mounting on 6K.13 or 6K.14
• Dielectric strength coil-contact: 4000 V AC
• Insulation voltage: 250 V
• Operating temperature: -40 to +70 °C
• Protection degree: IP20
• Electrical life: 100 x 10^3 cycles
• Mechanical life: 10 x 10^6 cycles
• Max switching power: 1500 VA (AC1)
• Max switching voltage: 400 V AC
• Terminal type: screw terminals

Why choose it

This auxiliary contact block is a genuine Finder accessory, ensuring perfect mechanical and electrical compatibility with the 6K.13 and 6K.14 relays. Its AgNi contacts provide reliable switching for demanding industrial environments, and the screw terminals allow secure wiring.

Ideal use cases

• Expanding the output contacts of monitoring relays in control panels
• Signaling status or alarm conditions in automation systems
• Interfacing with PLC inputs or other control devices

Good to know

The block is designed for side mounting and requires no additional tools beyond a screwdriver for installation. It operates within a wide temperature range, making it suitable for various industrial settings.
