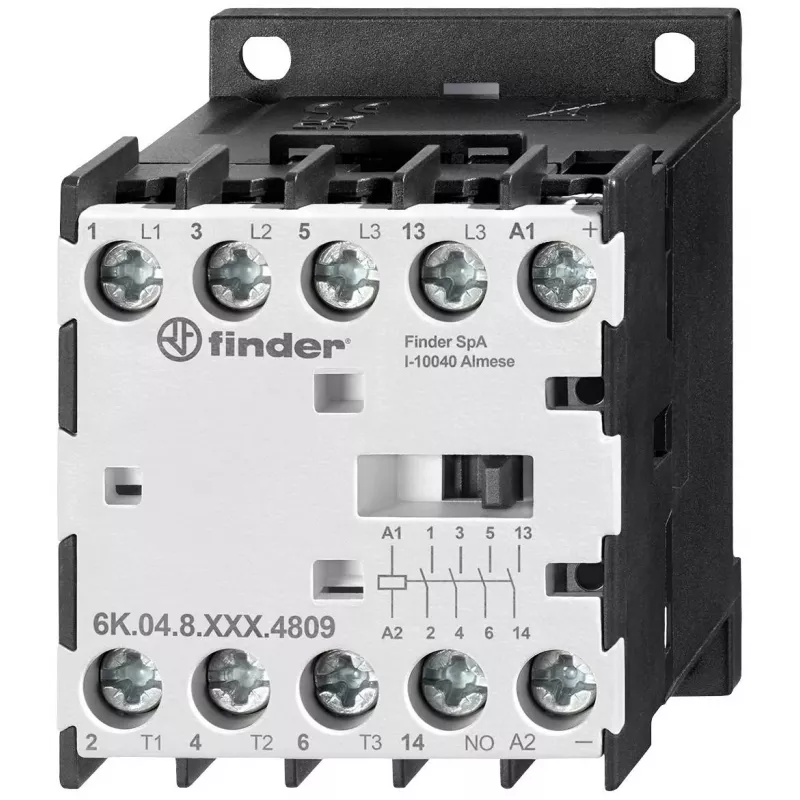

Finder mini-contactor 4 kW spoel 24 V AC (6K.04.8.024.4309)

The Finder 6K.04.8.024.4309 is a compact 4-pole mini contactor engineered for switching loads up to 4 kW in AC-3 duty. Its 24 V AC coil suits control circuits where low-voltage switching is required, and the 4 NO contact arrangement provides four independently controlled circuits in a single DIN-rail-mountable unit.

Highlights

• 4-pole, 4 NO main contacts
• 24 V AC coil, 50/60 Hz
• Rated 4 kW (AC-3, 400 V)
• 9 A rated operational current (AC-3)
• Mounts on 35 mm DIN rail or screws
• Screw terminals for secure wiring

In daily use

This contactor is suited for motor control and resistive loads in industrial control panels. The 20 A AC-1 rating allows use with heating or lighting circuits, while the AC-3 rating covers motor starting. Its compact footprint saves space, and the IP20 terminal protection is standard for panel-mounted devices.

Full specifications

• Number of poles: 4
• Main contact configuration: 4 NO
• Coil voltage: 24 V AC
• Rated power (AC-3, 400 V): 4 kW
• Rated operational current (AC-3, 400 V): 9 A
• Rated operational current (AC-1, 400 V): 20 A
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Frequency: 50/60 Hz
• Mounting: 35 mm DIN rail or screw
• Terminal type: screw terminals
• Operating temperature range: -25 to +60 °C
• Degree of protection: IP20 (terminals), IP40 (front)
• Electrical life (AC-3): 1.5 x 10^6 operations
• Mechanical life: 10 x 10^6 operations

Final note

The Finder 6K.04.8.024.4309 combines reliable switching with a compact design, making it a practical choice for control panel builders.
