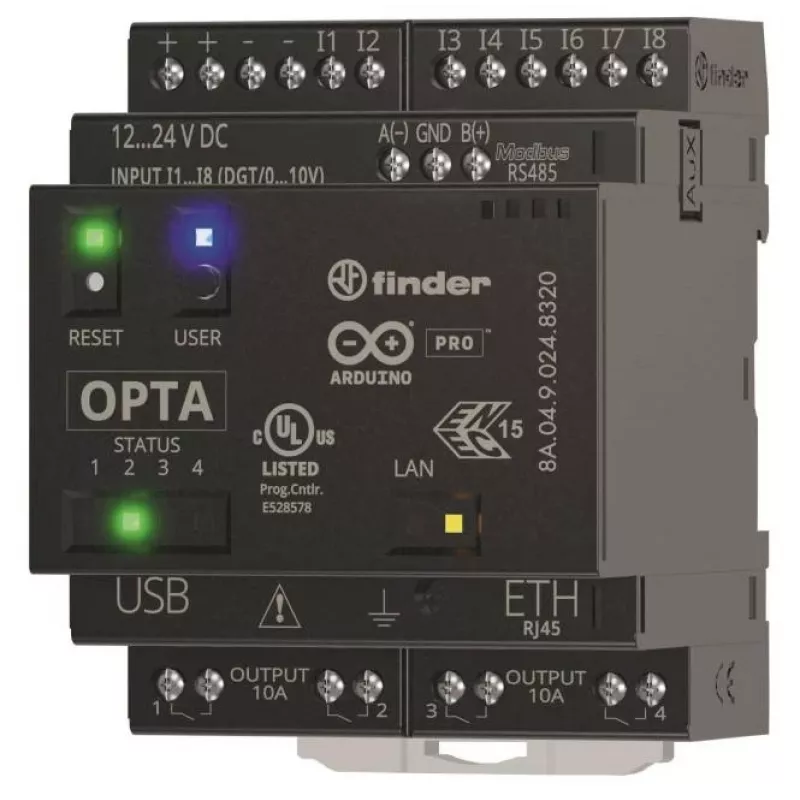

Finder Opta Advanced programmeerbare logic controller 8A.04.9.024.8320

The Finder Opta Advanced is a powerful programmable logic controller (PLC) designed for industrial automation and IoT applications. With its dual-core processor, versatile I/O, and multiple communication interfaces, it offers a flexible and reliable solution for controlling and monitoring processes.

Advantages

High-performance STM32H747XI dual-core processor ensures fast and efficient operation. Configurable inputs and relay outputs provide flexibility for various applications. Integrated Ethernet, USB-C, and RS485 enable seamless connectivity. Supports Arduino IDE and IEC 61131-3 programming environments for ease of use.

Suitable for

• Industrial automation and control systems
• Building management and smart infrastructure
• IoT edge computing and data acquisition
• Remote monitoring and control applications

Key specifications

• Supply voltage: 24 V DC
• 8 digital/analog inputs (configurable PNP/NPN)
• 4 relay outputs (NO, 6 A)
• Processor: STM32H747XI dual-core (Cortex-M7 & Cortex-M4)
• Memory: 2 MB Flash, 1 MB RAM
• Communication: Ethernet (RJ45), USB-C, RS485 (Modbus RTU/TCP)
• Real-time clock with battery backup
• Secure element (ATECC608B) for enhanced security
• DIN rail mounting (35 mm)
• Operating temperature: -20°C to +55°C
• Protection rating: IP20

Recommendations

For optimal performance, use with a 24 V DC power supply and configure inputs/outputs according to your application requirements. The integrated web server and Modbus support simplify integration into existing systems.
