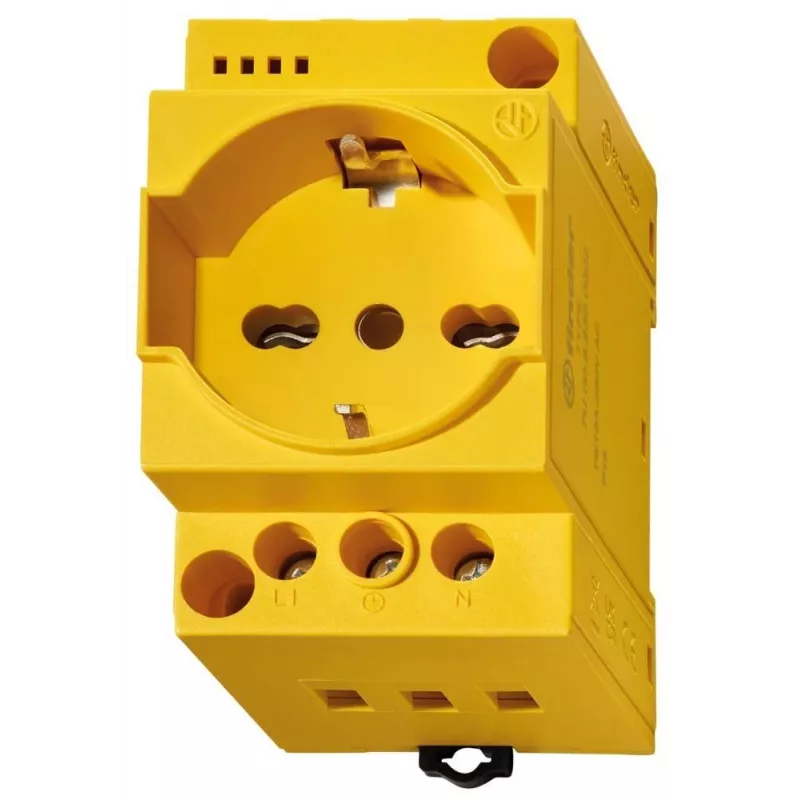

Finder schakelkast-stopcontact 7U.00.8.230.0002 geel

Control cabinet socket outlet with integrated fuse holder and LED indicator, designed for DIN rail mounting in electrical enclosures. Provides a convenient 230 V AC Schuko socket for maintenance and testing.

Advantages

Integrated fuse holder for 5x20 mm fuses protects connected equipment. LED indicator shows power status at a glance. Compact yellow housing is highly visible inside control cabinets.

Suitable for

• Control cabinet lighting and tools
• Temporary power for maintenance devices
• Industrial control panels

Key specifications

• Socket type: Schuko (Type F)
• Nominal voltage: 230 V AC
• Nominal current: 16 A
• Frequency: 50/60 Hz
• Mounting: DIN rail (EN 60715) or screw mount
• Connection: screw terminals, up to 2.5 mm²
• Housing material: thermoplastic
• Colour: yellow

Recommendations

Always install with a suitable 5x20 mm fuse (max 16 A) matching the load. Ensure the cabinet provides adequate ventilation.
