Flaem NEB.AID Duo aerosoltherapieapparaat

With a nebulization rate of 0.65 ml/min and a respirable fraction above 80% for particles under 5 µm, the Flaem NEB.AID Duo delivers medication deep into the airways efficiently.

Overview

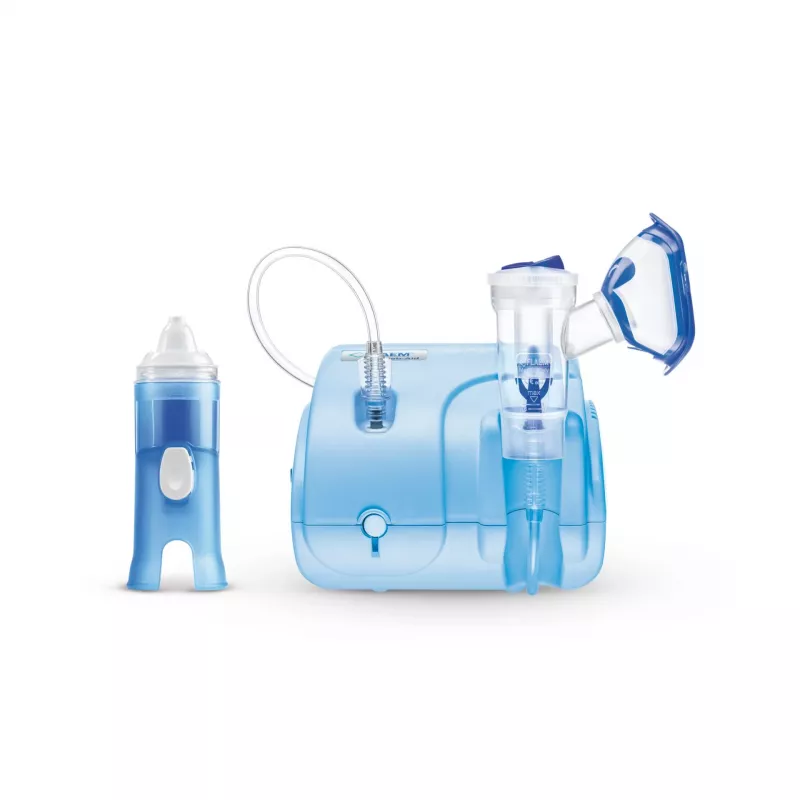

The Flaem NEB.AID Duo is a piston compressor nebulizer system designed for aerosol therapy. It includes two nebulizers, RF5 and RF7, to accommodate different treatment needs. The RF5 offers a finer particle size (MMAD 2.6 µm) with a rate of 0.35 ml/min, while the RF7 provides a higher output (0.65 ml/min) with MMAD 2.4 µm. Both nebulizers ensure a high respirable fraction, making the device suitable for effective respiratory treatment.

What stands out

• Dual nebulizer system: RF5 for fine particles, RF7 for faster delivery
• High respirable fraction: >75% (RF5) and >80% (RF7) of particles below 5 µm
• Large medication capacity: 8 ml maximum, 2 ml minimum
• Quiet operation at 55 dB(A) at 1 meter
• Complete accessory set: adult and pediatric masks, mouthpiece, nosepiece, air tube, and air filter

Technical details

• Technology: Piston compressor
• Operating pressure: 1.3 bar (max 2.5 bar)
• Air flow: 9 L/min
• Power supply: 230V ~ 50Hz
• Operating mode: Continuous
• Medical Device Class: IIa
• Compliance: EN 13544-1

Our verdict

The Flaem NEB.AID Duo offers versatility and efficiency in aerosol therapy, with two nebulizers to tailor treatment and a complete set of accessories for all ages.
