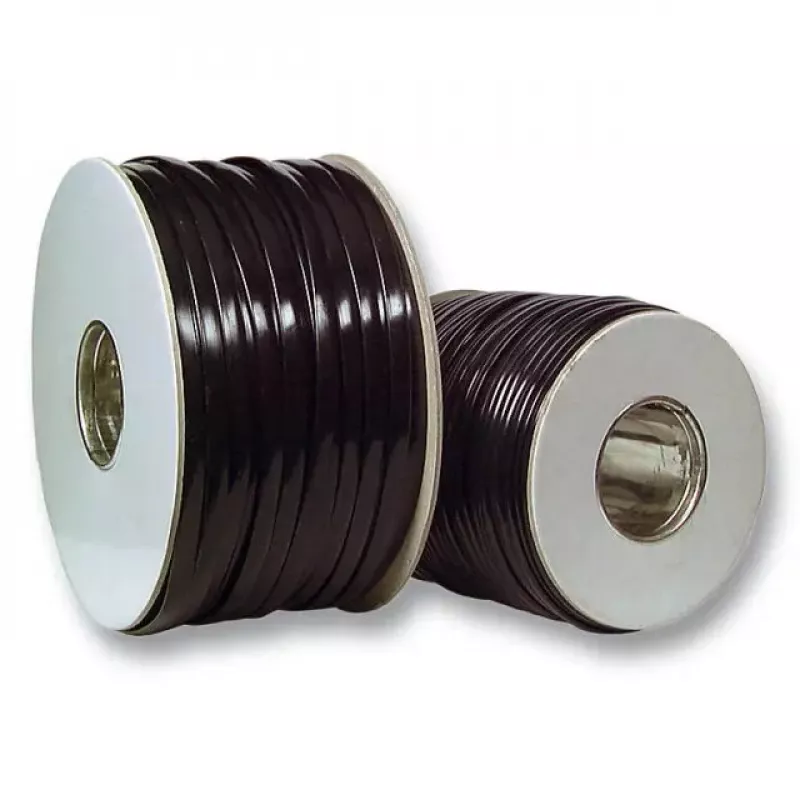

Flatcable EFB Elektronik 91104.100, zwarte PVC-mantel, 100 m lengte

EFB Elektronik 91104.100 is a 100 m ribbon cable with a black polyvinyl chloride (PVC) jacket. Intended for internal wiring, prototyping and signal or data routing in electronic assemblies, the flat multi-conductor design keeps conductors organised and simplifies routing in confined spaces. The PVC jacket provides basic mechanical protection and flexibility for installation. Colour numbering follows the German post office standard for conductor identification.

Advantages

The ribbon cable offers a compact, flat profile that makes it easy to route multiple conductors together. The PVC jacket gives basic abrasion resistance and bending flexibility suitable for internal electronic applications. Colour-coded conductor numbering according to German post office standard aids identification during assembly and testing. Supplied in a 100 m length for extended runs or repeated use in workshops and production.

Suitable for

• Internal wiring of electronic devices
• Prototyping and breadboard connections
• Signal and low-voltage data routing in assemblies
• Workshop spares and cable harnessing

Key specifications

• Length: 100 m
• Jacket material: Polyvinyl chloride (PVC)
• Outer colour: Black
• Product code (MPN): 91104.100
• EAN: 4049759054830
• Conductor identification: German post office colour numbering (1=white, 2=brown, 3=green, 4=yellow, 5=grey, 6=pink, 7=blue, 8=red, 9=black, 10=violett)
• Shielding: Unshielded

How to use

Cut the ribbon cable to the required length and separate or fan out conductors as needed for connectors, headers or soldering. Strip the conductor insulation at termination points with an appropriate tool, taking care not to nick the conductors. Route the flat cable along the shortest practical path inside the enclosure, avoid sharp bends with radii smaller than recommended for PVC-insulated wire, and secure the cable with suitable clamps or adhesive mounts to prevent strain on terminations.

Recommendations

Use this ribbon cable for low-voltage signal and data applications inside equipment; avoid exposure to corrosive chemicals, high temperatures beyond PVC ratings, or outdoor installation. For sensitive signals or environments requiring EMI protection, select a shielded cable alternative.
