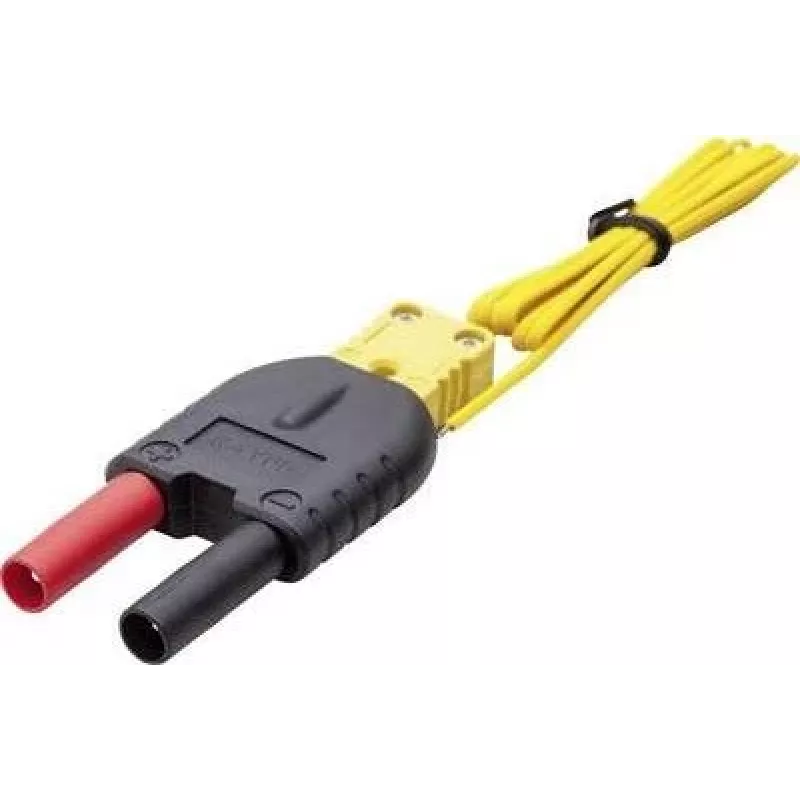

FLIR TA60 K-type thermokoppel-adapter met banaanstekkers

K-type thermocouple adapter that converts standard K-type thermocouple signals for use with multimeters and other devices featuring 4mm banana jack inputs. The adapter provides a direct connection between a K-type probe and measurement equipment with temperature function.

Advantages

Durable ABS plastic housing in black and yellow ensures reliable performance in demanding environments. High impedance input preserves signal integrity from the thermocouple. Instantaneous response time since the adapter adds no delay to the measurement.

Suitable for

• Multimeters with 4mm banana jack inputs and temperature measurement capability
• Temperature measurement applications using K-type thermocouples
• Field service and laboratory environments

Key specifications

• Adapter type: K-Type Thermocouple Adapter
• Input connector: Standard K-Type Thermocouple (Female)
• Output connectors: Dual Banana Plugs (4mm)
• Housing material: Durable ABS Plastic
• Colour: Black/Yellow
• Operating temperature: -10 to 50°C (14 to 122°F)
• Storage temperature: -20 to 60°C (-4 to 140°F)
• Operating humidity: <80% RH non-condensing
• Maximum input voltage: 30V DC (between banana plugs)
• Safety rating: CAT II 30V
• Certifications: CE

Recommendations

Use with compatible K-type probes and multimeters to ensure accurate temperature readings. Verify meter input specifications before connection.
