Fluke i200 AC stroomtangadapter, 0,5 tot 200 A, 10 mV/A uitgang 664755

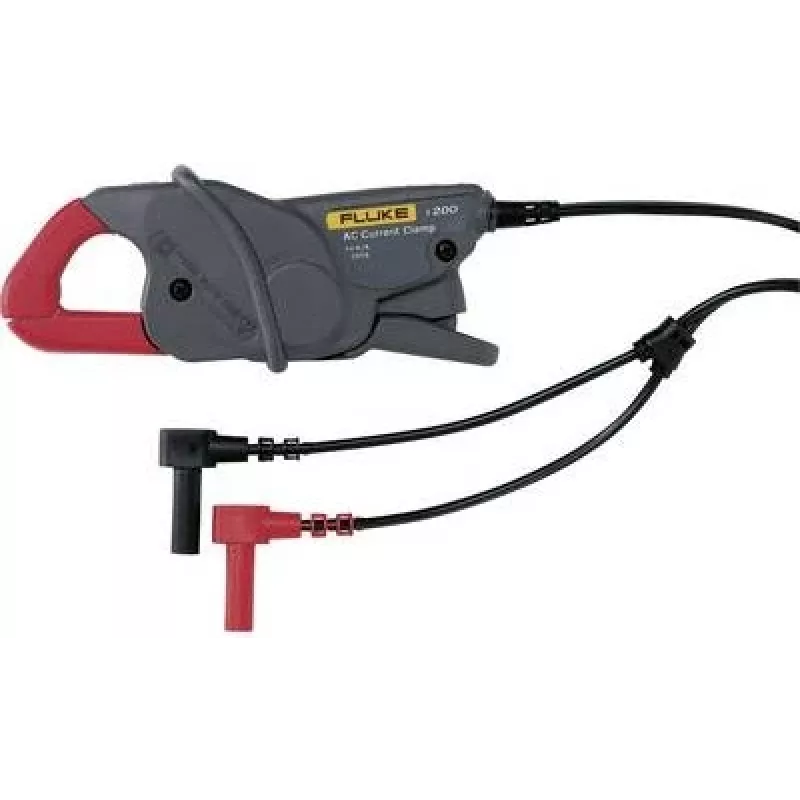

The Fluke i200 is a compact AC current clamp adapter that extends the measurement capabilities of digital multimeters. It converts AC current from 0.5 A to 200 A into a safe millivolt signal (10 mV/A) for direct reading on a multimeter with 4 mm banana inputs. The clamp features a 20 mm jaw opening to accommodate conductors without breaking the circuit.

Advantages

Passive design requires no batteries, ensuring reliable operation whenever needed. The 1.5% + 0.5 A basic accuracy (45-65 Hz) provides dependable measurements for troubleshooting and maintenance. The 1.5 m cable gives flexibility when working in tight panels.

Suitable for

• Measuring AC current in distribution panels and motor circuits
• Verifying load currents without disconnecting wires
• Use with Fluke and other multimeters with 4 mm banana jacks

Key specifications

• Current range: 0.5 A to 200 A AC RMS
• Output signal: 10 mV/A AC
• Basic accuracy (45-65 Hz): 1.5% + 0.5 A
• Frequency range: 45 Hz to 400 Hz
• Maximum conductor diameter: 20 mm
• Safety rating: CAT III 600 V, CAT II 600 V
• Cable length: 1.5 m
• Power source: Passive (no battery required)

Recommendations

For electricians and technicians who need a reliable, battery-free current clamp for routine AC current measurements, the Fluke i200 offers a practical solution with proven Fluke durability.
