Fluke i410 AC-stroomtang 1-400A, 1mV/A, CAT III 600V, bananenplug, 1,6m kabel, rood/geel 617727

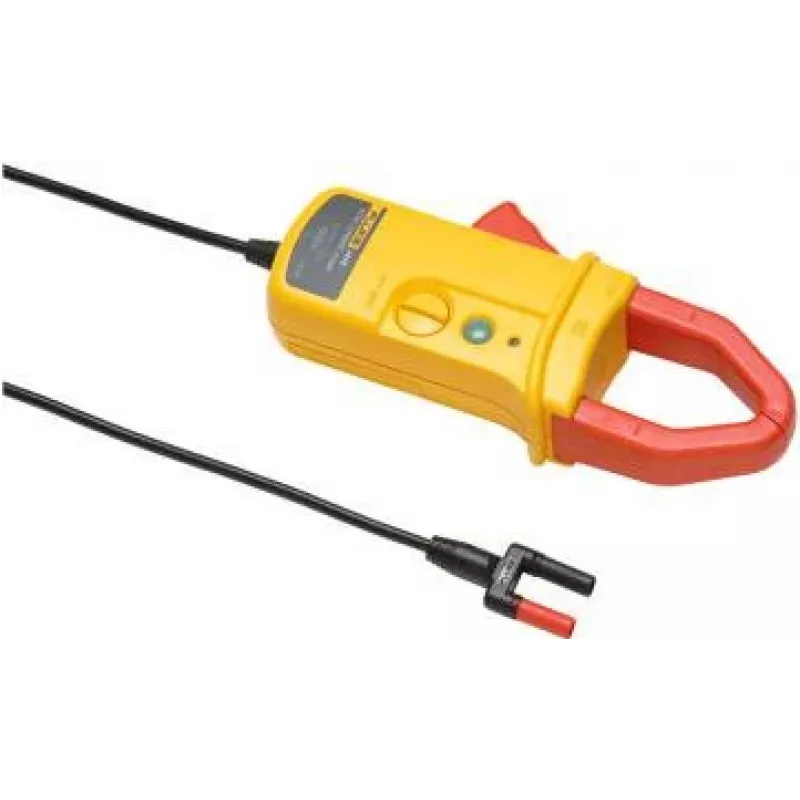

The Fluke i410 current clamp measures AC current from 1 A to 400 A without breaking the circuit, outputting 1 mV per amp for direct connection to a multimeter's banana jacks. Its 32 mm jaw opening accommodates large conductors, and the CAT III 600V safety rating suits industrial and commercial electrical work.

Highlights

• AC current measurement: 1 A to 400 A
• Output: 1 mV/A AC for direct multimeter reading
• Jaw opening: 32 mm for large conductors
• Safety rating: CAT III 600V
• Passive design: no battery required
• Cable length: 1.6 m with shrouded banana plugs

In daily use

The i410 is a practical tool for electricians and technicians who need to measure AC current in panels, motors, and distribution systems. Connect it to a compatible multimeter, clamp around the conductor, and read the current directly. The red/yellow housing is easy to spot in a tool bag, and the flexible cable allows positioning in tight spaces.

Full specifications

• Measurement type: AC current
• Current range: 1 A to 400 A AC
• Output signal: 1 mV/A AC
• Basic accuracy (1-100 A): 2% ± 5 digits
• Basic accuracy (100-400 A): 2.5% ± 5 digits
• Frequency range: 5 Hz to 20 kHz
• Jaw opening: 32 mm (1.25 in)
• Safety rating: CAT III 600V
• Connector type: shrouded banana plugs
• Cable length: 1.6 m
• Max conductor diameter: 32 mm
• Operating temperature: -10 °C to 50 °C
• Storage temperature: -20 °C to 60 °C
• Humidity: 0% to 85% RH (non-condensing)
• Overload protection: 600V RMS
• Power source: passive (no battery required)
• Compatibility: multimeters with 4 mm banana input jacks
• Colour: red/yellow

Final note

The Fluke i410 delivers reliable AC current measurements with a simple 1 mV/A output, making it a versatile addition to any multimeter toolkit.
