Flutlicht Brennenstuhl 1171250342 30 W LED zwart IP65

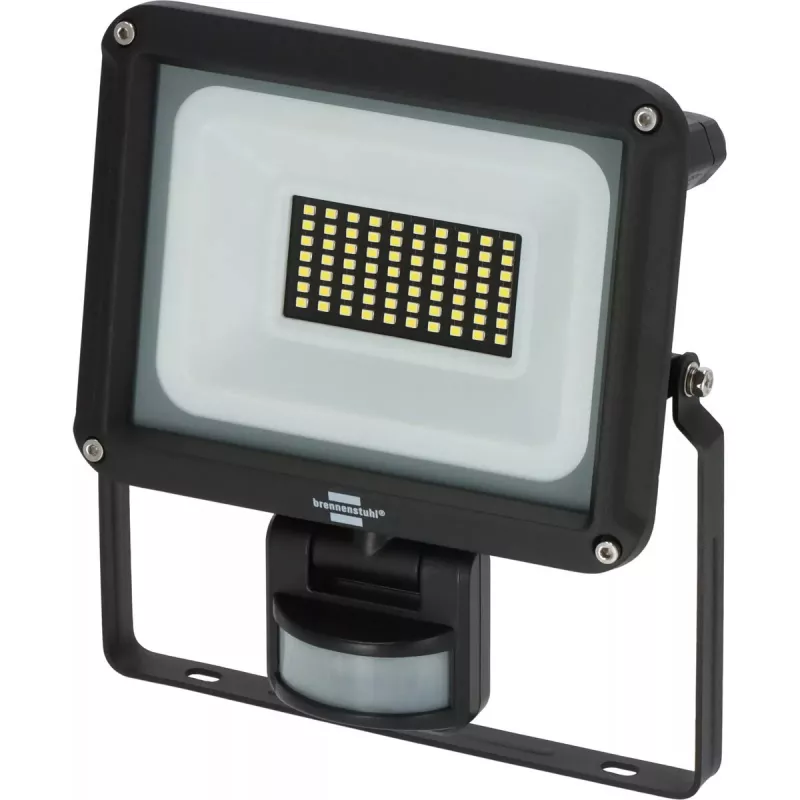

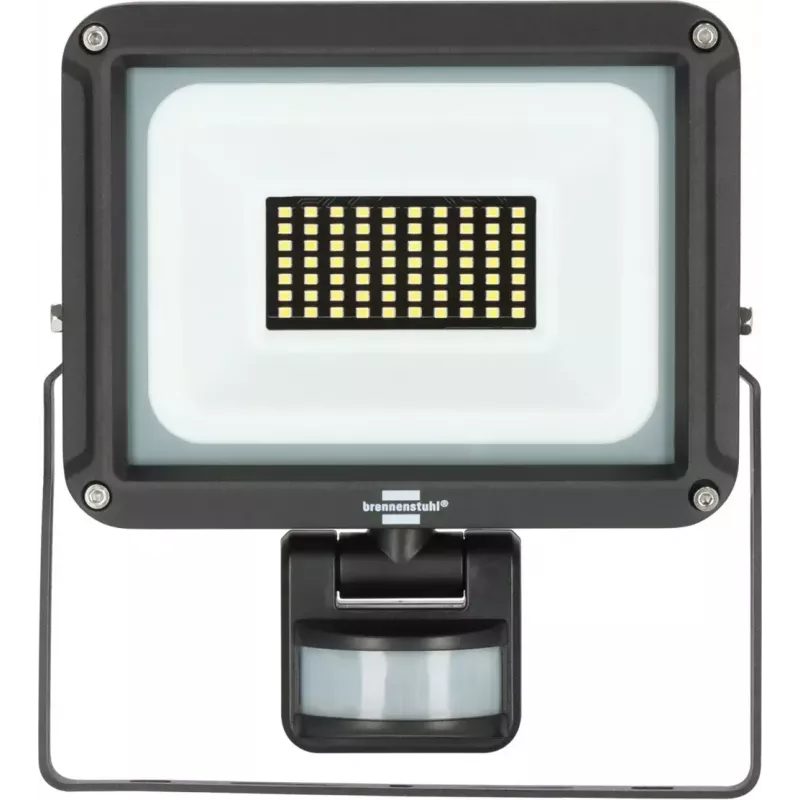

The Brennenstuhl Floodlight 1171250342 is a 30 W LED wall-mounted spotlight designed for indoor and outdoor use. It features an IP65-rated metal housing and a safety glass front, delivering 3450 lm at a cool 6500 K colour temperature. An integrated infrared motion detector with adjustable twilight switch provides automatic activation within a detection range of up to 10 m and a 180° coverage angle. The compact construction and durable materials make this floodlight suitable for entrance areas, driveways and carports.

Advantages

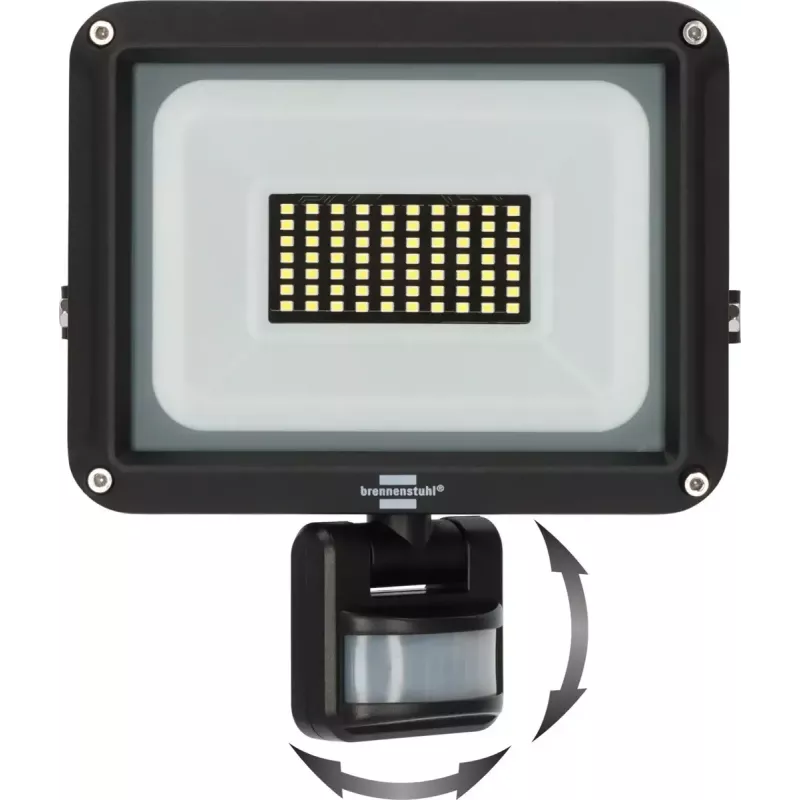

The floodlight combines high luminous efficacy with weatherproof IP65 protection and a robust metal body. The safety glass front adds impact resistance while the Everlight SMD LEDs ensure long service life and even light diffusion for large-area illumination. The rotatable motion detector allows flexible positioning and the switch-on time can be set from 10 seconds to approximately 5 minutes.

Suitable for

• Entrance areas and porches
• Driveways and carports
• Building facades and outdoor work areas
• Indoor spaces requiring motion-activated lighting

Key specifications

• Power: 30 W
• Luminous flux: 3450 lm
• Colour temperature: 6500 K
• Protection class: IP65 (dustproof and jet-proof)
• Motion detector: infrared, rotatable, detection range up to 10 m, 180° coverage
• Front cover: safety glass
• Brand / MPN / EAN: Brennenstuhl / 1171250342 / 4007123684977

How to use

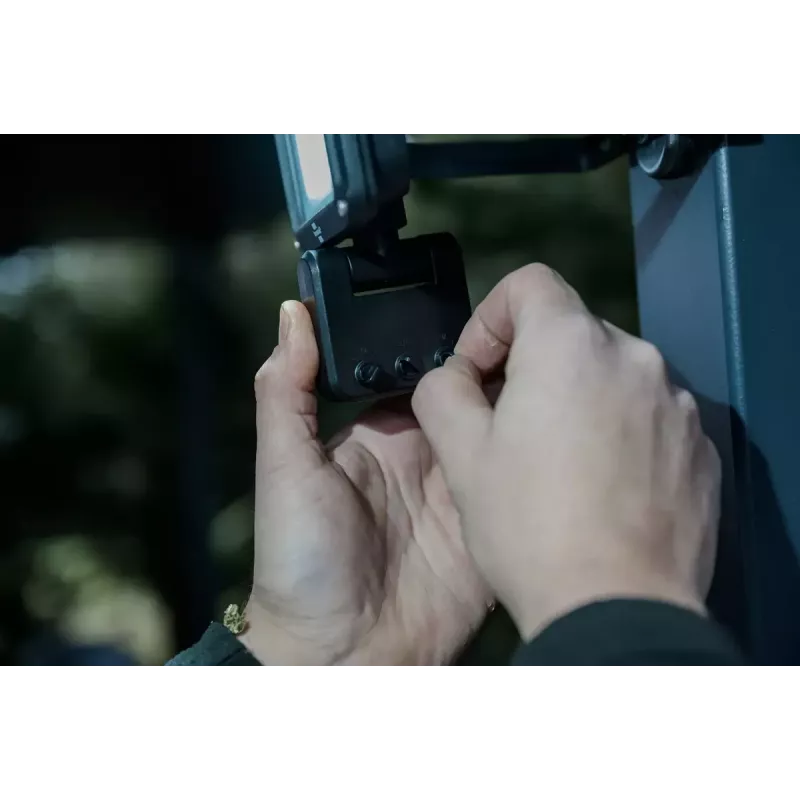

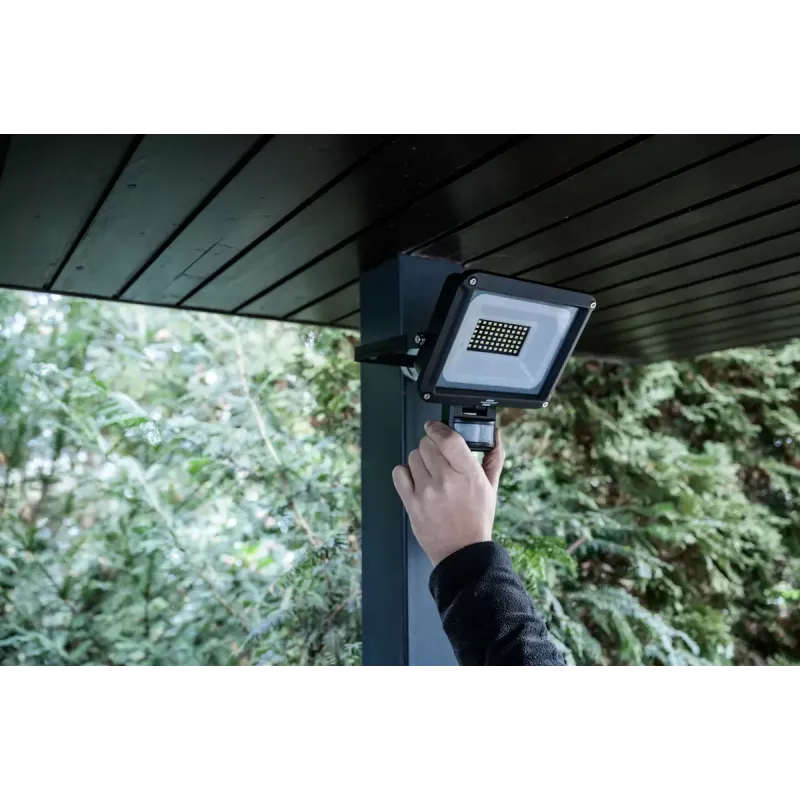

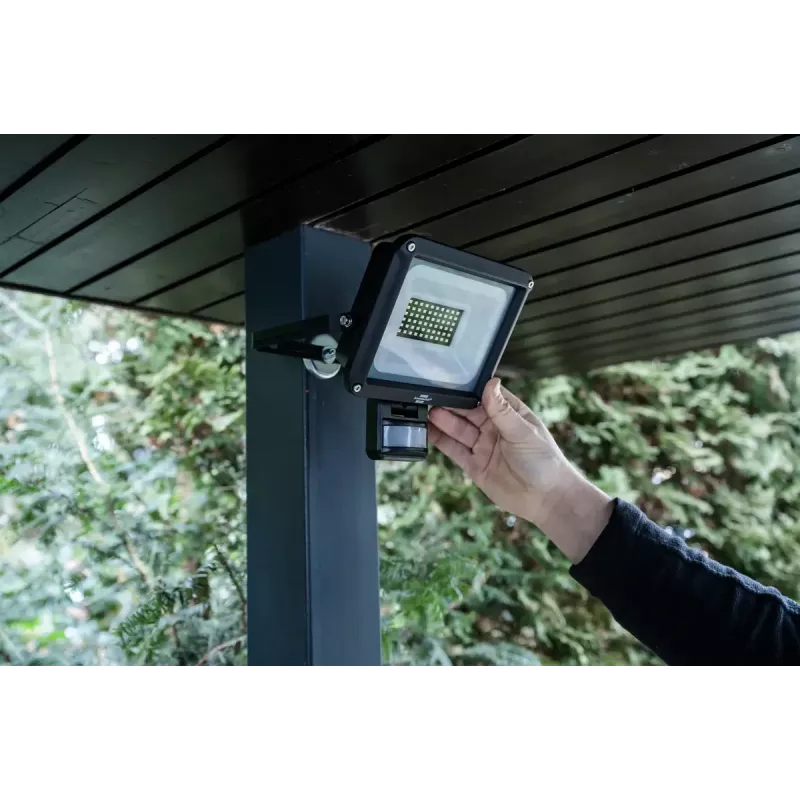

Install the floodlight on a vertical surface following local electrical regulations and ensure the supply is switched off before wiring. Aim and rotate the infrared motion detector horizontally and vertically to cover the desired area. Set the twilight switch and the switch-on time to the required sensitivity and duration (10 seconds to ~5 minutes). After installation, test the sensor at different distances up to 10 m to confirm correct coverage.

Recommendations

Mount the luminaire at a height and angle that avoid direct exposure of the sensor to moving foliage or nearby heat sources to reduce false triggers. Clean the safety glass periodically to maintain optimal light output and check sealing points to preserve IP65 protection.
