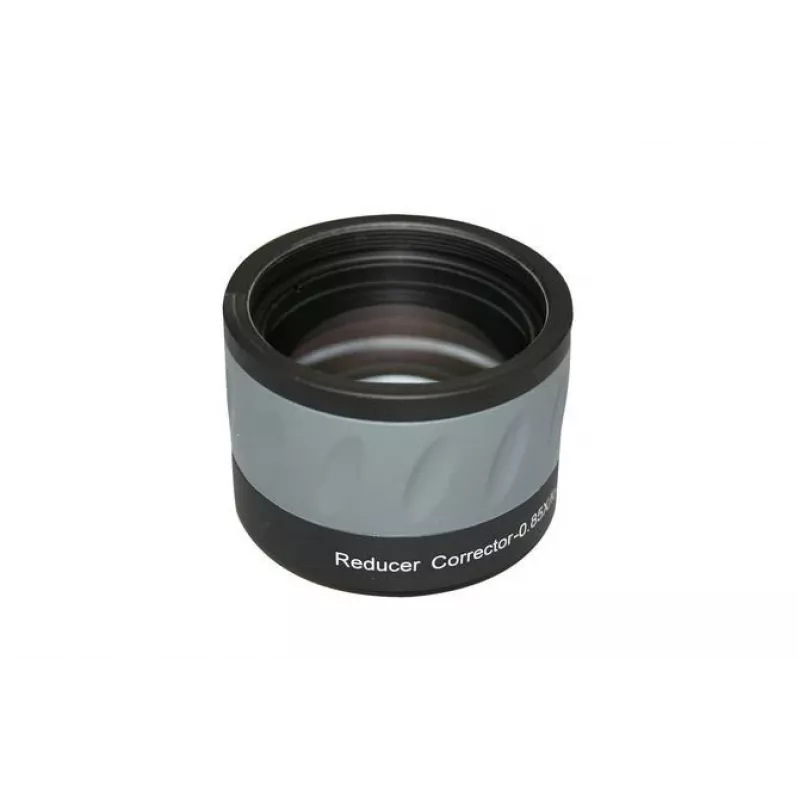

Focal reducer Skywatcher ED80 0,85x voor Sky-Watcher ED80 refractortelescopen

The Focal reducer Skywatcher ED80 0.85x for Sky-Watcher ED80 refractor telescopes reduces the effective focal length by a factor of 0.85, delivering a wider true field of view and a faster focal ratio when used with the Sky-Watcher ED80 optical tube. Designed to fit between the telescope focuser and the camera or eyepiece, this reducer preserves the ED80 optical train while improving framing for extended deep-sky objects and decreasing required exposure times for astrophotography. The mechanical interface and optical spacing are optimized for the ED80 refractor to maintain image quality across the field.

Advantages

The focal reducer widens the field of view and shortens the focal ratio, allowing larger areas of the sky to be captured in a single frame and enabling shorter exposures for the same signal level. It is optically matched to the ED80 refractor to limit aberrations and maintain sharpness toward the edges of the image when used at the recommended backfocus. The unit installs between the focuser and camera or eyepiece, providing a straightforward mechanical connection without modifying the telescope.

Suitable for

• Wide-field astrophotography of extended nebulae, star fields and large galaxies
• Visual observation when a wider true field is required
• Imaging sessions where reduced exposure time is beneficial
• Use with dedicated astronomy cameras and DSLR/mirrorless cameras

Key specifications

• Reduction factor: 0.85x (reduces focal length to 85% of original)
• Compatibility: designed for use with ED80 refractor optical tube
• Optical configuration: multi-element design optimized for ED glass optics
• Mounting position: placed between focuser and camera/eyepiece with defined backfocus
• Effect: wider field of view and faster effective focal ratio for imaging

How to use

Attach the focal reducer to the telescope by inserting it between the focuser drawtube and your camera adapter or eyepiece holder, ensuring correct mechanical engagement. Set the recommended backfocus distance for the ED80 refractor to achieve optimal image quality; consult the telescope documentation for the exact spacing value. After mounting, perform a collimation or framing check and focus carefully using live view or a focusing aid. For imaging, set exposure parameters considering the faster focal ratio and verify that stars remain round across the frame; adjust spacing slightly if necessary.

Recommendations

Use with cameras that allow precise focus and spacing control; confirm the proper backfocus distance for your specific ED80 setup to minimize field curvature and off-axis aberrations. When capturing wide fields, check for vignetting and, if present, use appropriate flat-field calibration frames during processing.
