Garmin BC 50 Night Vision draadloze achteruitrijcamera 30 fps 160°

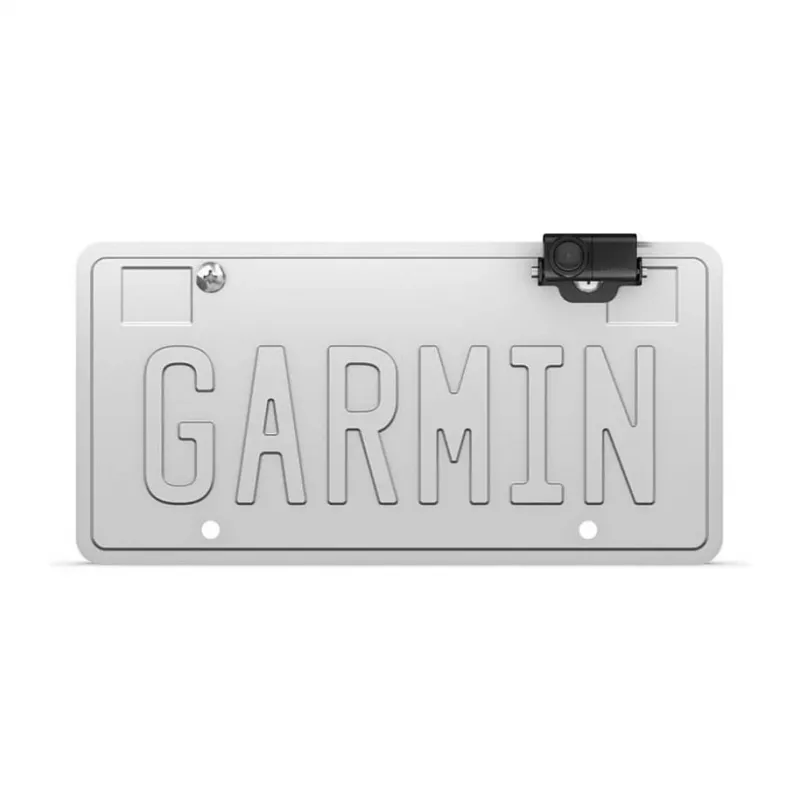

The Garmin BC 50 Night Vision is a wireless backup camera designed to improve rear visibility during reversing maneuvers. It mounts to a license plate or with the included bracket and transmits video to a compatible Garmin navigator. The camera offers NightGlo™ illumination for low-light use, up to 720p HD resolution when paired with a compatible display, a 160° field of view and a rugged IP67 weather-resistant design. The unit measures approximately 43.2 mm × 22.2 mm × 18.5 mm and provides a true working wireless range of up to 50' (with an optional 50' extension cable, range can extend to 100').

Advantages

NightGlo™ illumination lights the area behind the vehicle up to about 20' for improved visibility at night. The camera transmits video at up to 30 fps and supports up to 720p HD when connected to a compatible Garmin navigator, producing a clear, wide 160° view of the rear. Its IP67-rated enclosure offers protection against dust and temporary immersion, and the wireless design reduces the need for long video cables in many installations. Two mounting options are included — license plate and bracket — to suit different vehicles and installation needs.

Suitable for

• Passenger cars and SUVs that need improved rear visibility
• RVs, trucks and trailers with longer body or towing configurations
• Low-light or night-time reversing where added illumination is required
• Installations where a wireless feed to a compatible Garmin navigator is preferred

Key specifications

• Model: Garmin BC 50 Night Vision (MPN 010-02610-00)
• Video frame rate: 30 fps
• Field of view: 160°
• Resolution: up to 720p HD (when paired with compatible Garmin navigator)
• Wireless range: up to 50' (approx. 15 m); up to 100' with optional 50' extension cable
• Ingress protection: IP67
• Dimensions (W × H × D): 43.2 mm × 22.2 mm × 18.5 mm
• Power: requires connection to a switched power source (e.g., reverse light circuit); professional installation recommended
• EAN: 0753759277505

How to use

Mount the camera to the license plate or use the supplied bracket to position it on the rear of the vehicle. Connect the transmitter and power cable to a switched power source such as the vehicle’s reverse light circuit so the camera powers on when the vehicle is put into reverse. Pair the wireless transmitter with a compatible Garmin navigator following the device pairing instructions, then verify the image and adjust the camera angle as needed for optimal rear coverage.

Recommendations

For reliable operation and correct wiring to the vehicle’s electrical system, professional installation is recommended. If your vehicle or trailer configuration requires extended range, consider the optional 50' extension cable to increase transmission distance up to 100'. Ensure compatibility with your Garmin navigator model to achieve the stated HD resolution and frame rate.
