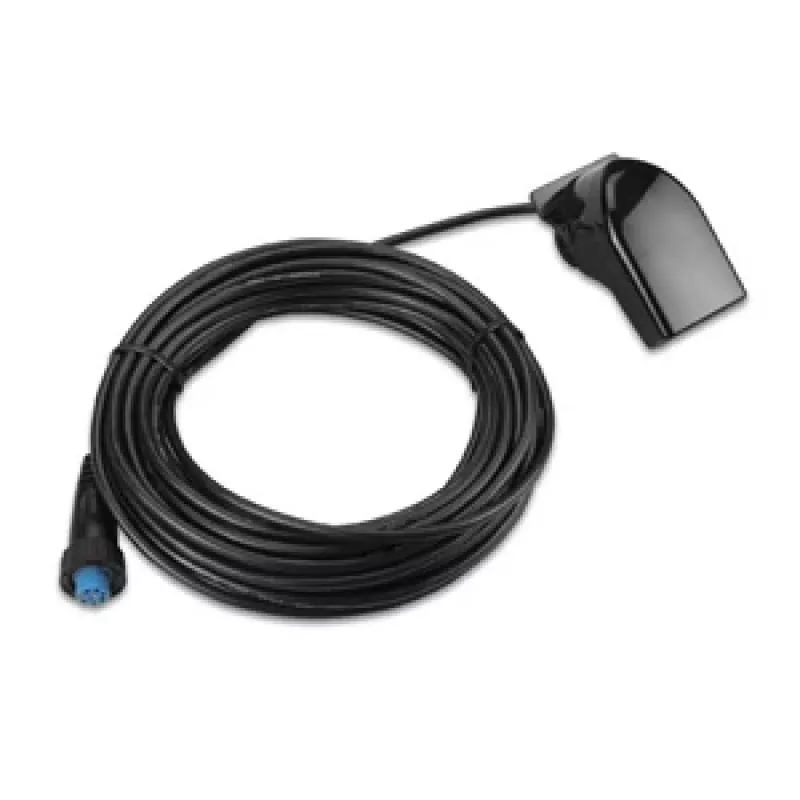

Garmin dual-beam transducer voor spiegelmontage, 8-pins, 77/200 kHz, 500 W

The Garmin Dual Beam Transom Mount Transducer is an 8-pin, 500 W transducer with operating frequencies of 77/200 kHz and beam widths of 45/15 degrees. It replaces the transducer included with echo™ series fishfinders and mounts on a transom with an adjustable angle from 0 to 70 degrees.

Key features

• Dual beam transducer
• 8-pin connector
• 500 W power
• Operating frequency: 77/200 kHz
• Beam width: 45/15 degrees
• Transom mount with tilt angle from 0 to 70 degrees
• Replaces the transducer included with echo™ series fishfinders
• Mounting instructions included with the transducer kit

Specifications

• Brand: Garmin
• MPN: 010-10249-40
• Power: 500 W
• Frequency: 77/200 kHz
• Beam width: 45/15 degrees
• Mounting: transom, tilt angle 0–70 degrees
• Connector: 8-pin
