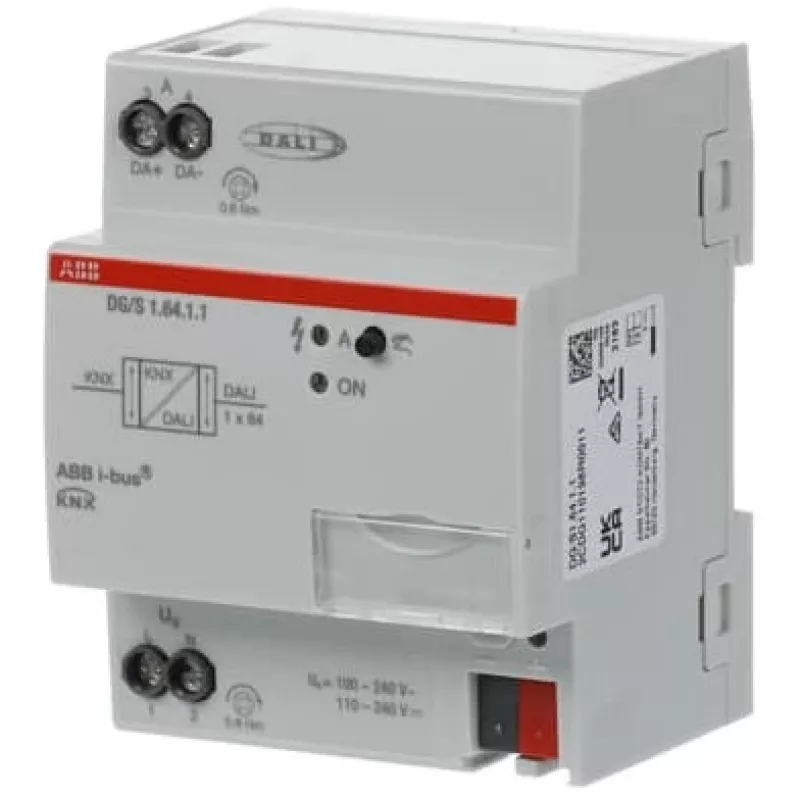

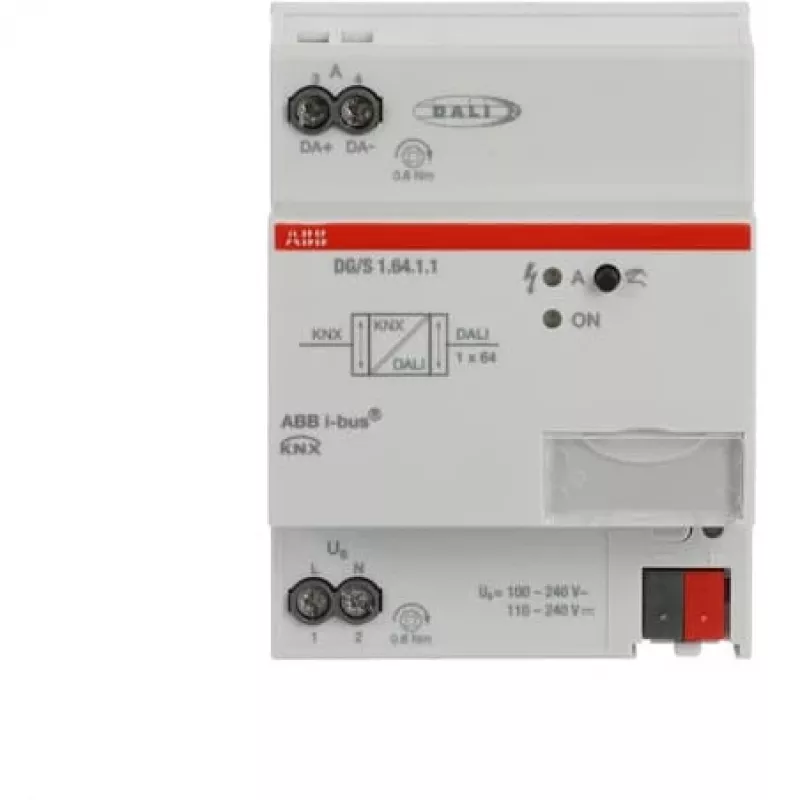

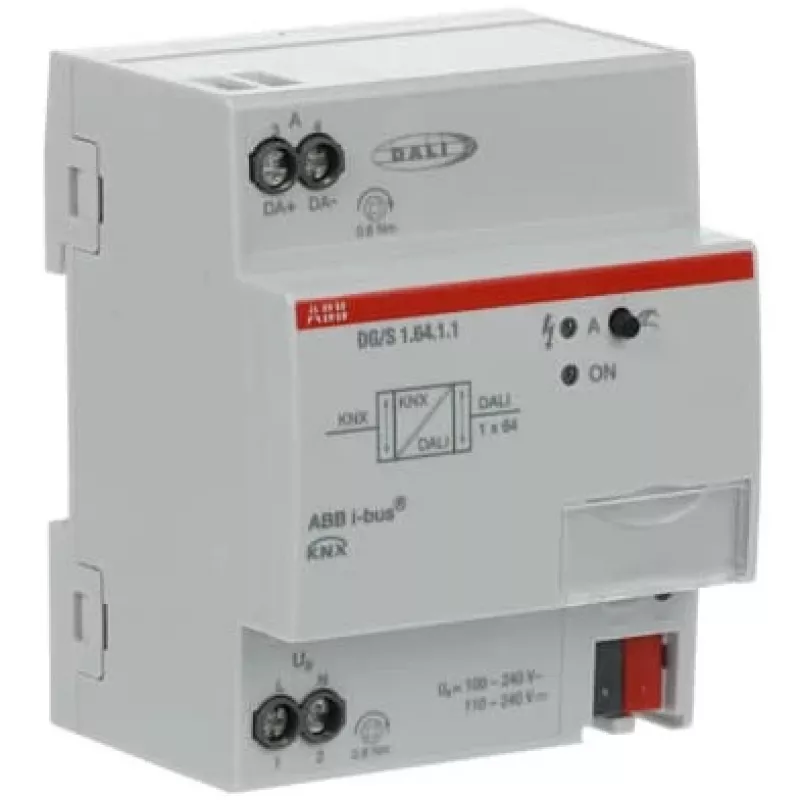

Gateway/controller ABB 2CDG110198R0011, IP20, 264 V ingang, 70×63,5×90 mm, grijs

ABB 2CDG110198R0011 is a Single‑Master DALI controller with integrated DALI power supply, certified to DALI‑2 (EN 62386). Housed in a grey IP20 enclosure sized 70 × 63.5 × 90 mm, it connects to ABB i‑bus KNX and accepts up to 264 V input. The device provides one DALI output supporting up to 64 DALI participants and supports control of standard DALI device types (e.g., DT6, DT8) via EN 62386‑102 commands. Emergency converter functions (DT1 acc. EN 62386‑202) and a range of fault and status feedback options are included.

Advantages

The gateway/controller offers integrated DALI power supply and KNX communication for centralised control of lighting. It supports up to 64 DALI participants, 16 lighting groups and 16 scenes, plus broadcast control. Built‑in emergency converter support allows triggering of emergency tests (function and duration) via KNX. Several functional modes such as slave, staircase, force, block and scene are available, and extensive fault and error reporting simplifies monitoring and maintenance.

Suitable for

• Integration into KNX‑based building automation systems
• Controlling up to 64 DALI luminaires in commercial or public buildings
• Projects requiring centralised scene and group lighting control
• Installations needing emergency lighting testing and monitoring via KNX

Key specifications

• Manufacturer: ABB, model 2CDG110198R0011
• Certification: DALI‑2 (EN 62386)
• Inputs: up to 264 V
• Dimensions: 70 × 63.5 × 90 mm
• Protection rating: IP20
• DALI outputs: 1 output, up to 64 participants
• Groups/scenes: 16 lighting groups, 16 scenes
• Emergency: DT1 support per EN 62386‑202 (self‑contained emergency converter)
• Supported device types: standard DALI devices (e.g., DT6, DT8) via EN 62386‑102

How to use

Mount the ABB 2CDG110198R0011 in an appropriate enclosure or on DIN‑rail where IP20 protection is acceptable. Connect the KNX bus and mains supply (up to 264 V) according to the installation manual and local regulations. Wire the DALI output to the DALI line with up to 64 devices. Configure device addresses, groups and scenes through the KNX commissioning tool and set emergency converter parameters if emergency lighting functions are required. Monitor status and fault messages via KNX to verify proper operation.

Recommendations

Use the device in indoor electrical installations with IP20 requirements; ensure DALI cabling follows EN 62386 recommendations. Perform commissioning and emergency tests through the KNX system and keep the ABB installation manual at hand for wiring and safety instructions.
