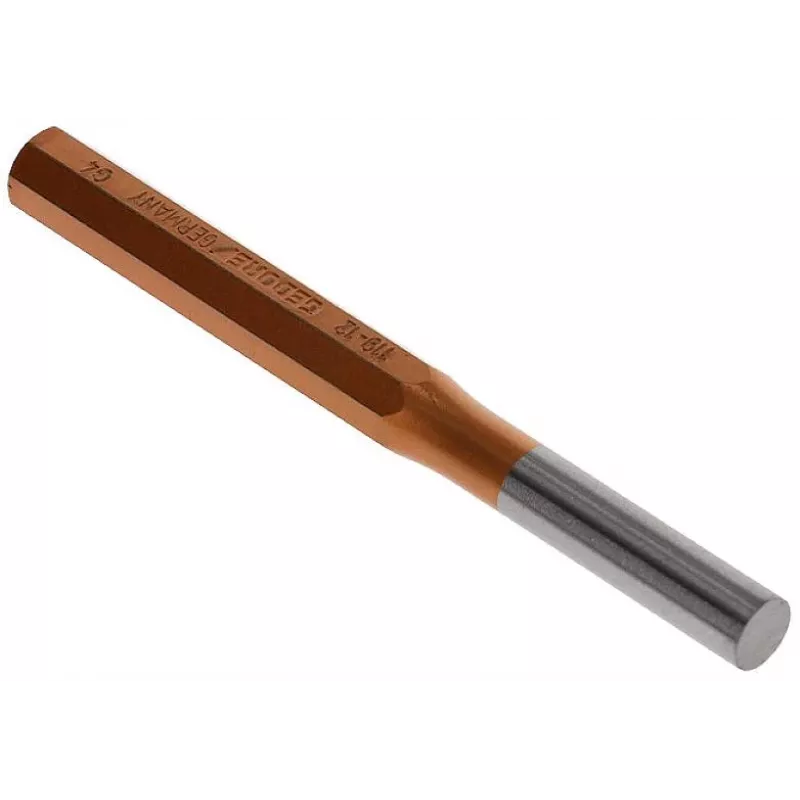

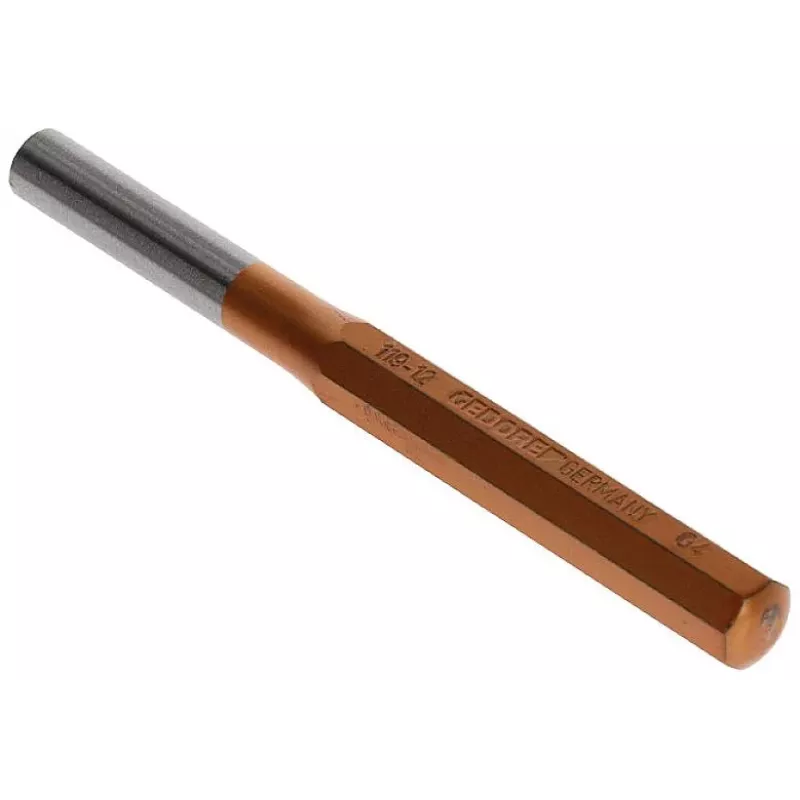

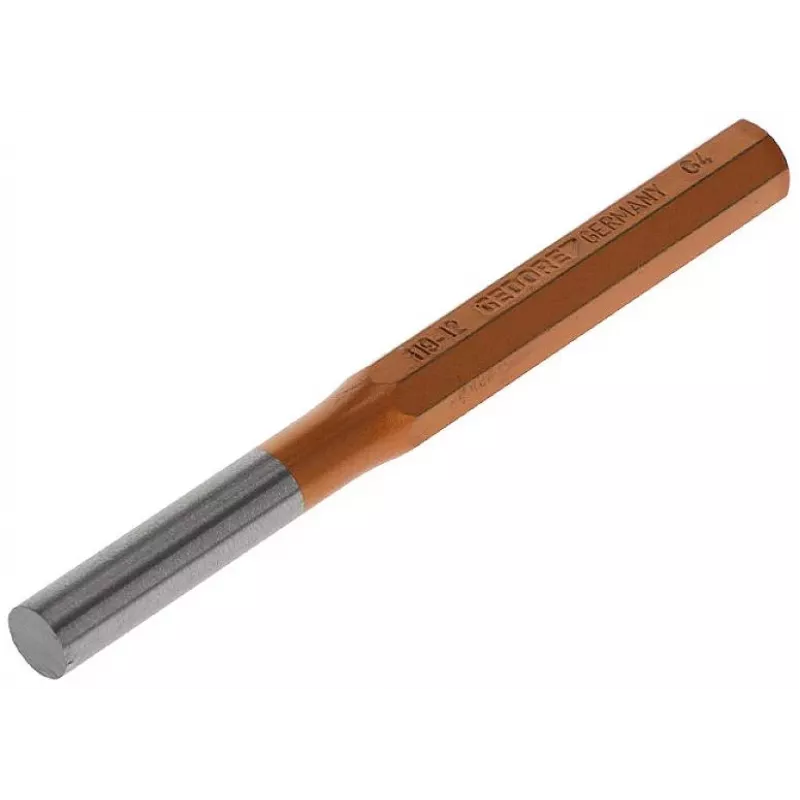

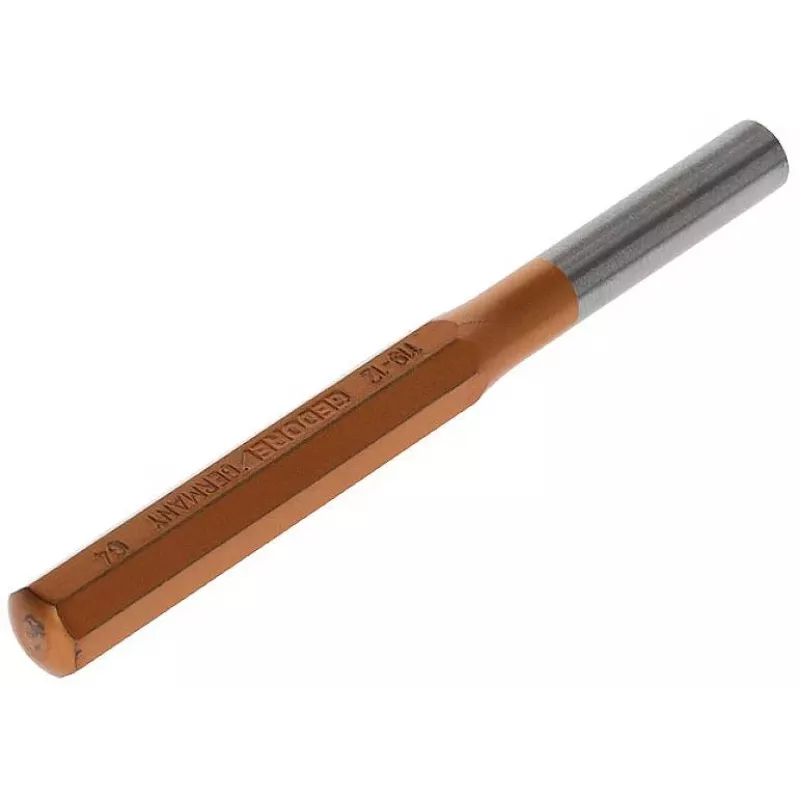

GEDORE 119-12 splitpenpons 12 mm doorpons DIN 6450 vorm C 8759960

For automotive technicians and machine fitters driving out pins, rivets, and fasteners, the GEDORE 119-12 drift punch delivers precise impact force with a 12 mm tip. The cylindrical head and hardened working end withstand high-impact use, while the lacquered shaft resists corrosion.

Key specifications

• Tip diameter: 12 mm
• Overall length: 150 mm
• Shank diameter: 14 mm
• Material: GEDORE Vanadium steel 61CrSiV5
• Heat treatment: Hardened and tempered
• Finish: Shaft lacquered blue, working end bright
• Standard compliance: DIN 6450 Form C
• Manufacturing method: Forged

Why choose it

The forged vanadium steel construction provides high impact resistance and durability, making it suitable for demanding workshop environments. The lacquered shaft offers corrosion protection, and the bright working end allows clear visibility of the striking area.

Ideal use cases

• Driving out pins and rivets in automotive repair
• Removing fasteners in machinery maintenance
• Aligning holes in metalworking

Good to know

Part of the GEDORE 119 series, this drift punch is manufactured in Germany and meets DIN 6450 Form C requirements for pin punches.
