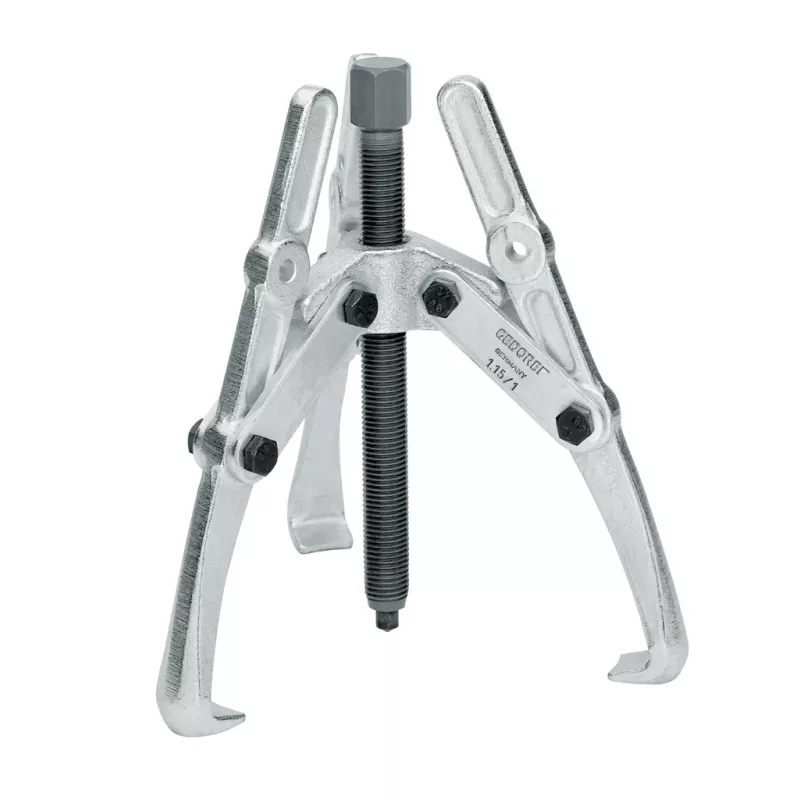

GEDORE 3-armige universele trekker 130x140 mm (8006190)

Mechanics and maintenance technicians use the GEDORE 3-arm puller to remove gears, bearings, pulleys, and flywheels from shafts. The 130 mm spreading width and 140 mm clamping depth cover common automotive and industrial components.

Key specifications

• Number of jaws: 3
• Max. spreading width (external): 130 mm
• Max. clamping depth: 140 mm
• Puller type: Universal puller
• Jaw reversibility: Yes (internal & external pulling)
• Spindle thread size: G 1/2"
• Spindle length: 140 mm
• Spindle hexagon drive: 17 mm
• Material: GEDORE Vanadium Steel 31CrV3
• Construction method: Forged
• Centring tip: Hardened
• Corrosion protection: Galvanized / Phosphated
• Jaw design: Slim, self-gripping
• Product weight: 1.8 kg
• Series: GEDORE 8006 Series

Why choose it

Forged vanadium steel construction provides high strength and durability. The slim, self-gripping jaws ensure a secure hold, while the hardened centring tip protects the shaft end. Galvanized/phosphated finish resists corrosion.

Ideal use cases

• Removing gears, bearings, pulleys, and flywheels
• Internal and external pulling applications
• Automotive and industrial maintenance

Good to know

The reversible jaws allow the puller to be used as an internal or external puller without additional accessories. The spindle thread G 1/2" is compatible with standard GEDORE accessories.
