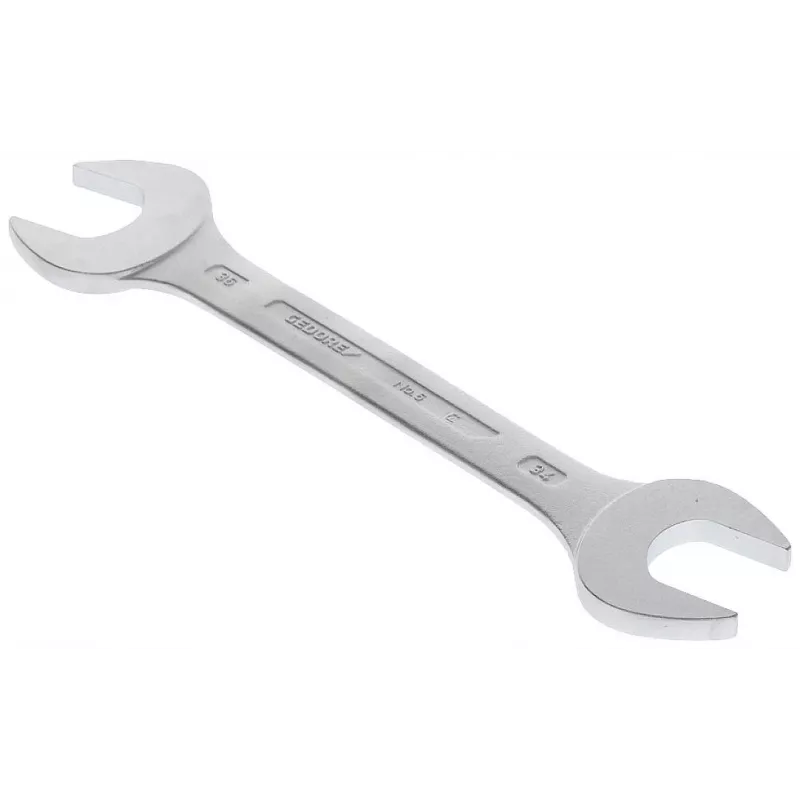

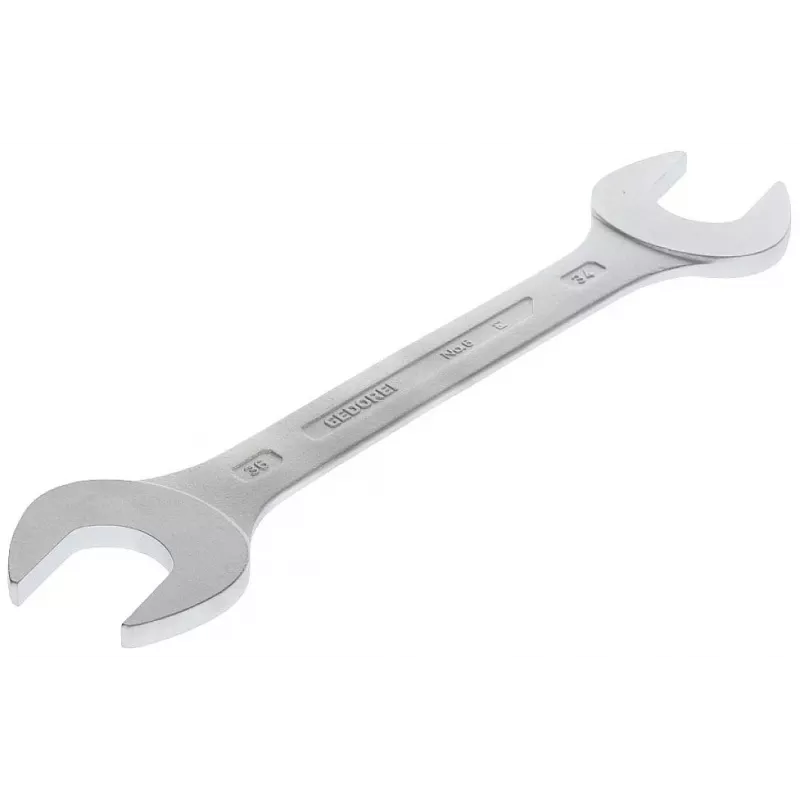

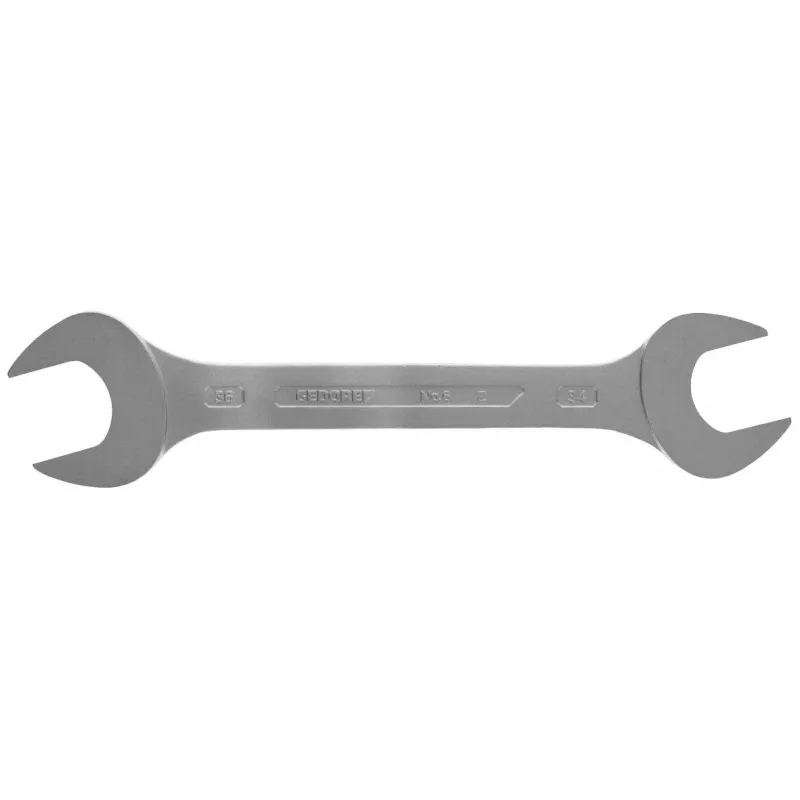

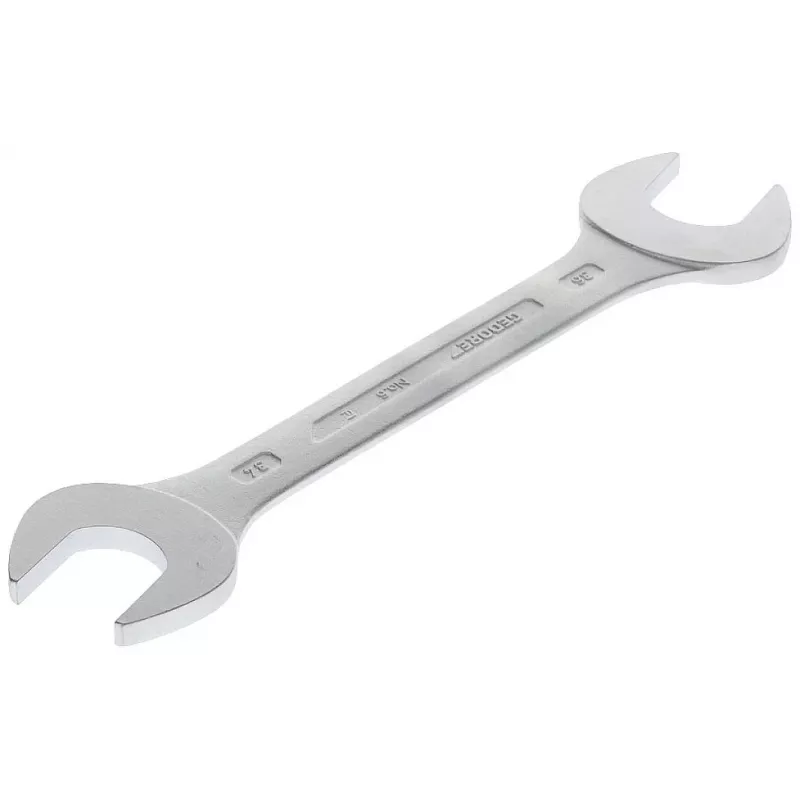

GEDORE 6069600 dubbelringsleutel 34x36 mm DIN 3110

This GEDORE double open-end wrench is built for heavy-duty industrial and automotive fastening where two large metric sizes are needed in one tool. The 34 mm and 36 mm openings are drop-forged from chrome-vanadium steel and matt chrome-plated for corrosion resistance, while the 15° angled heads and slim profile allow access in confined spaces.

Highlights

• Double open-end design: 34 mm and 36 mm openings in one wrench
• Drop-forged chrome-vanadium steel with matt chrome plating
• 15° head angle for better clearance and torque application
• Complies with DIN 3110, ISO 3318, ISO 1085, ISO 10102
• Slim heads for confined spaces and high bending strength

In daily use

The 380 mm overall length provides ample leverage for tightening or loosening large fasteners. The open-end design allows quick engagement from the side, and the chrome finish resists rust and makes cleaning easy. Suitable for mechanical, industrial, and automotive work where 34 mm and 36 mm nuts and bolts are common.

Full specifications

• Wrench type: Double open-end wrench
• Opening size 1: 34 mm
• Opening size 2: 36 mm
• Overall length: 380 mm
• Head width (34 mm side): 72 mm
• Head width (36 mm side): 76 mm
• Head thickness (34 mm side): 13.5 mm
• Head thickness (36 mm side): 14.5 mm
• Material: Chrome-vanadium steel
• Finish: Matt chrome-plated
• Head angle: 15°
• Standard compliance: DIN 3110, ISO 3318, ISO 1085, ISO 10102
• Manufacturing process: Drop forged
• Corrosion resistance: Yes

Final note

A robust, precision-forged wrench for professionals who need reliable performance on large fasteners.
