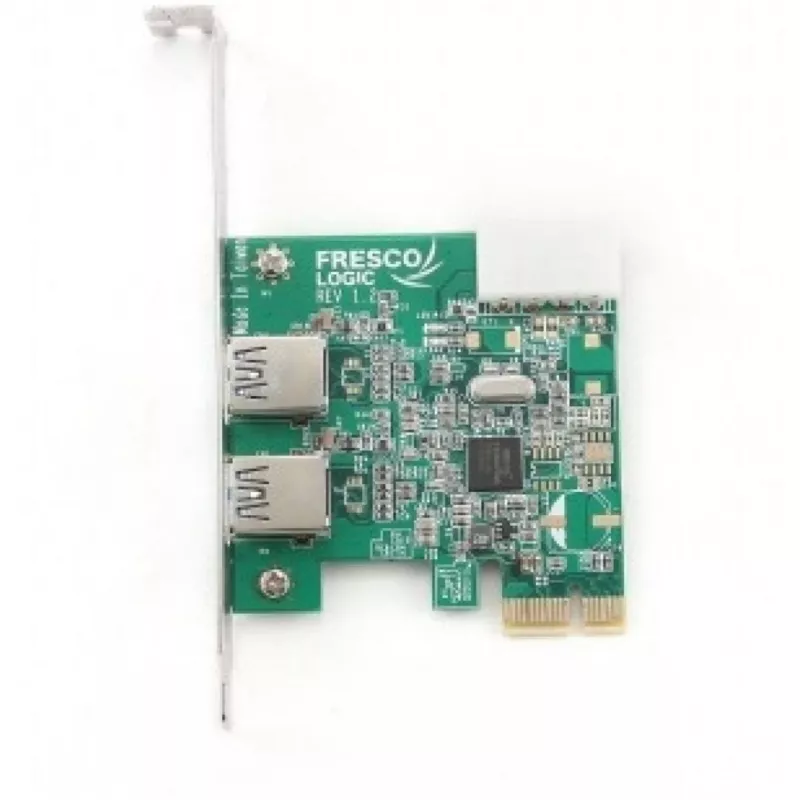

Gembird UPC-30-2P USB 3.2 Gen 1 PCI Express x1 adapterkaart met 2 USB-A-aansluitingen

The Gembird UPC-30-2P is a high-performance USB 3.2 Gen 1 expansion card designed to add two USB Type-A ports to your desktop computer via a PCI Express x1 slot. With data transfer rates up to 5 Gbps, this card is ideal for connecting external hard drives, SSDs, and other high-speed peripherals. It is backward compatible with USB 2.0 and USB 1.1 devices, ensuring broad compatibility.

Advantages

Upgrade your system with two additional USB 3.2 Gen 1 ports without replacing your motherboard. The card supports hot-swapping, allowing you to connect and disconnect devices without restarting your computer. It includes a SATA 15-pin power connector for reliable power delivery to connected devices.

Suitable for

• Desktop computers requiring additional USB ports
• Users needing high-speed data transfer for external storage
• Systems with limited built-in USB 3.0 connectivity

Key specifications

• Host Interface: PCI Express x1 (PCIe 2.0)
• USB Standard: USB 3.2 Gen 1 (5 Gbps)
• Number of USB Ports: 2
• Connector Type: USB Type-A (Female)
• Chipset: Renesas uPD720202
• Power Connector: SATA 15-pin
• Form Factor: Standard Profile
• Operating Systems: Windows XP/Vista/7/8/10 (32/64-bit), Linux
• Compliance: RoHS

Recommendations

For optimal performance, connect USB 3.0/3.1 devices to the card's ports. Ensure your power supply has an available SATA power connector. The card is compatible with standard PCIe x1, x4, x8, and x16 slots.
