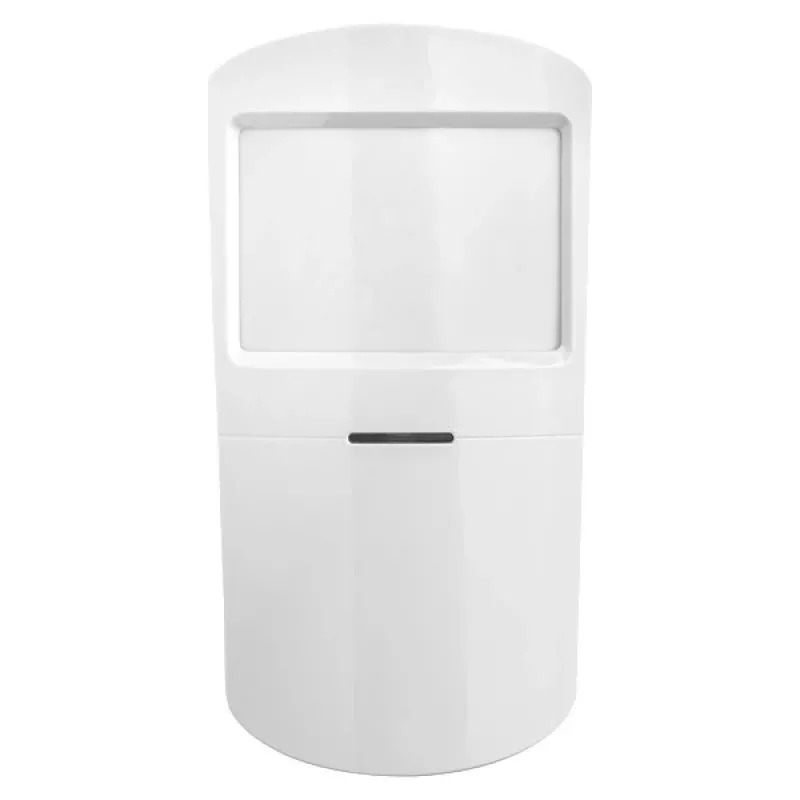

Genevo EVOPIR-NX-WH draadloze PIR-bewegingsmelder 868 MHz, wit

The Genevo EVOPIR-NX-WH is a high-performance wireless Passive Infrared (PIR) motion detector designed for the Genevo EVO Series alarm systems. Operating at 868 MHz, it offers reliable detection with a range of up to 12 meters and a 90-degree angle. Its advanced 78-zone, 7-layer lens ensures precise motion sensing while minimizing false alarms. The detector is powered by a single CR123A lithium battery with a lifespan of up to 3 years, making it ideal for long-term, maintenance-free security.

Advantages

Easy installation at 2.2-2.5 meters height, wall or corner mount. Front and rear tamper protection against sabotage. LED indicator for alarm, tamper, and low battery status. Complies with EN 50131 Grade 2 security standards for professional-grade protection.

Suitable for

• Residential and commercial security systems
• Integration with Genevo EVO Series alarm panels
• Indoor use in controlled environments (Class II)

Key specifications

• Detection Technology: Passive Infrared (PIR)
• Wireless Frequency: 868 MHz
• Detection Range: 12 meters
• Detection Angle: 90 degrees
• Power Supply: 1x CR123A 3V Lithium Battery
• Battery Life: Up to 3 years
• Installation Height: 2.2 - 2.5 meters
• Tamper Protection: Front and Rear Tamper Switch
• Operating Temperature: -10°C to +55°C
• Wireless Transmission Range: Up to 300 meters (open space)
• Compatibility: Genevo EVO Series Alarm Panels
• Security Grade: EN 50131 Grade 2
• Environmental Class: Class II
• Color: White
• LED Indicator: Yes (for alarm, tamper, low battery)
• Detection Zones: 78 zones / 7 layers
• Mounting Type: Wall or Corner Mount

Recommendations

For optimal performance, install the detector at the recommended height and avoid obstructions. Pair with a compatible Genevo EVO alarm panel for seamless integration. Test the wireless signal strength before final mounting.
