Gesipa 1571258 handmatig blindklinkmoer zetgereedschap, 217 mm, M3-M6

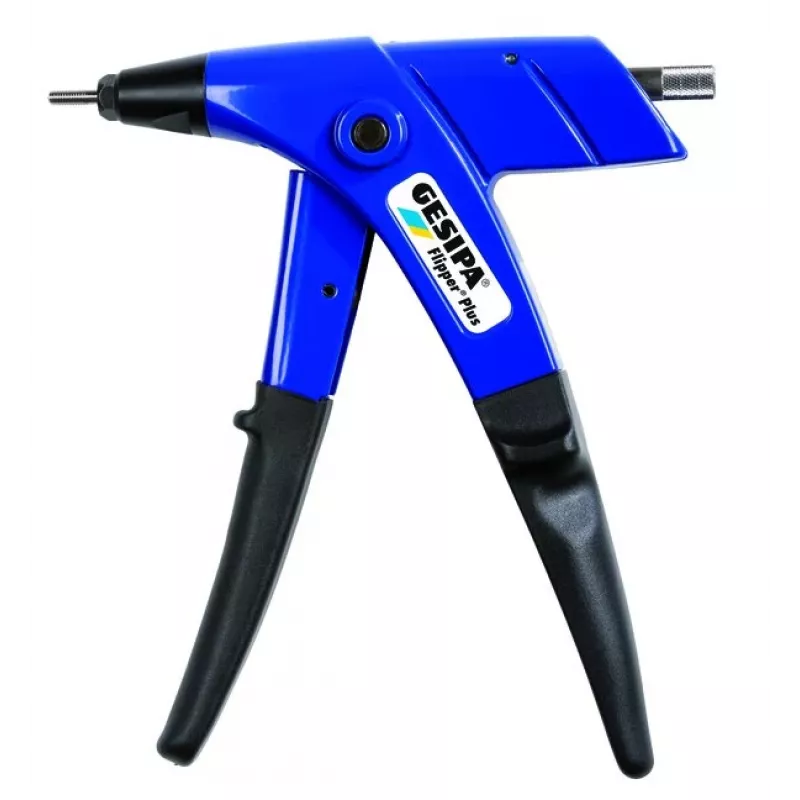

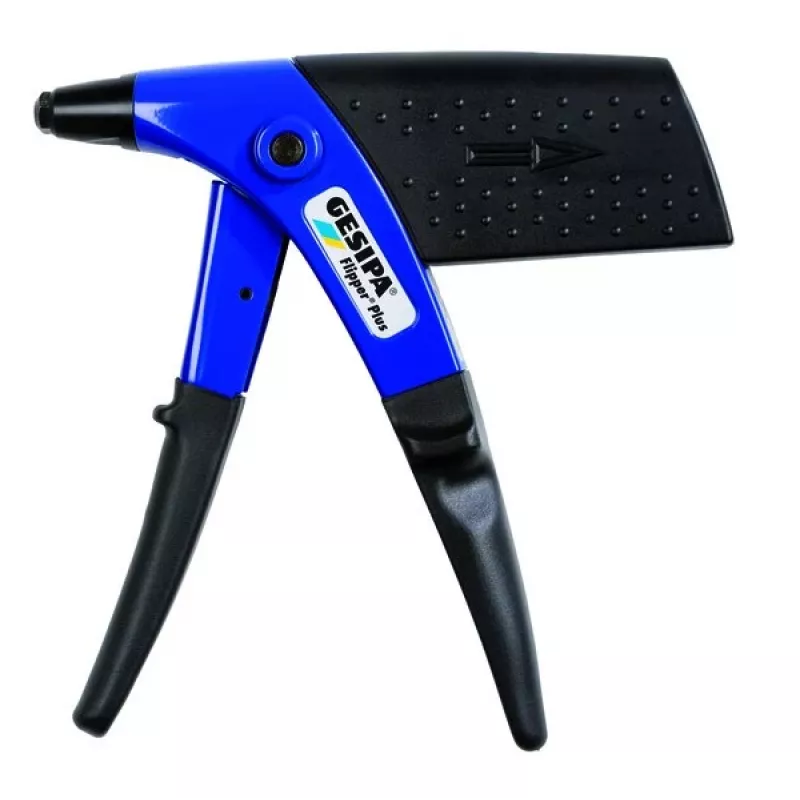

The Gesipa 1571258 sets blind rivet nuts from M3 to M6 with a single-hand lever mechanism, making it a practical choice for small series production, repair work, and prototyping where a power tool is unnecessary. The 217 mm body keeps the tool compact enough for tight spaces, while the high-strength steel construction and ergonomic plastic grips support repeated use.

Highlights

• Manual lever action for controlled setting of blind rivet nuts
• Handles aluminium and steel rivet nuts from M3 to M6, and stainless steel from M3 to M5
• Quick mandrel and nosepiece change without special tools
• Integrated hanging loop for storage

In daily use

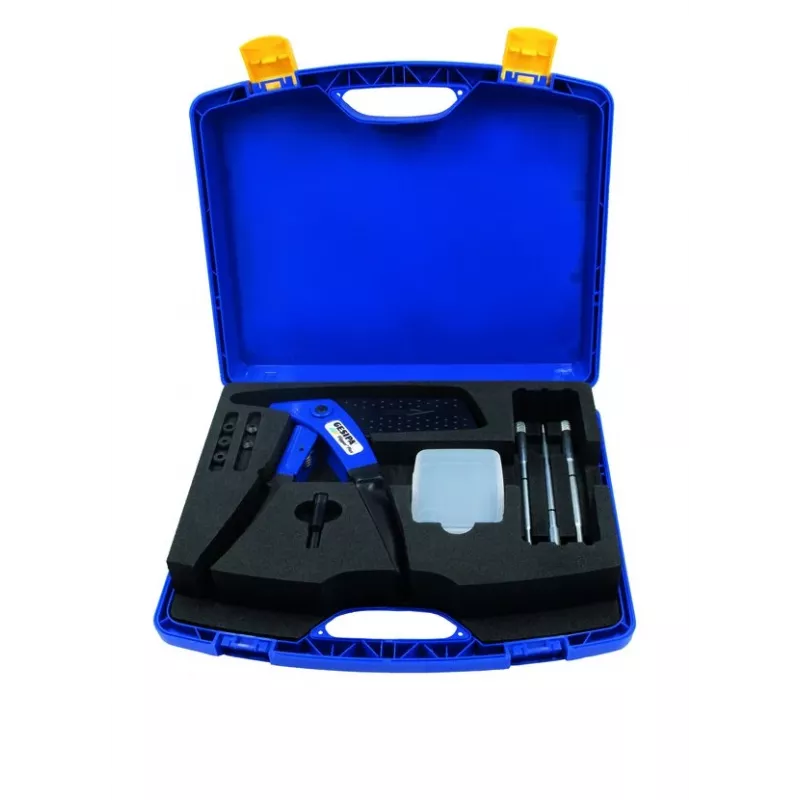

The tool is operated with one hand, leaving the other free to position the workpiece. Mandrels and nosepieces for M3, M4, M5, and M6 are included, so the tool is ready for common thread sizes out of the box. The lever mechanism provides enough force to set rivet nuts in aluminium, steel, and stainless steel within the specified capacity.

Full specifications

• Tool type: Manual blind rivet nut setting tool
• Operation mode: Single-hand operation
• Rivet nut capacity (aluminium/steel): M3, M4, M5, M6
• Rivet nut capacity (stainless steel): M3, M4, M5
• Tool length: 217 mm
• Body material: High-strength steel
• Handle material: Ergonomic plastic grips
• Included mandrels: M3, M4, M5, M6
• Included nosepieces: M3, M4, M5, M6
• Drive mechanism: Manual lever action
• Storage feature: Integrated hanging loop

Final note

The Gesipa 1571258 covers the most common blind rivet nut sizes in a single hand tool, with no air or battery supply required.
