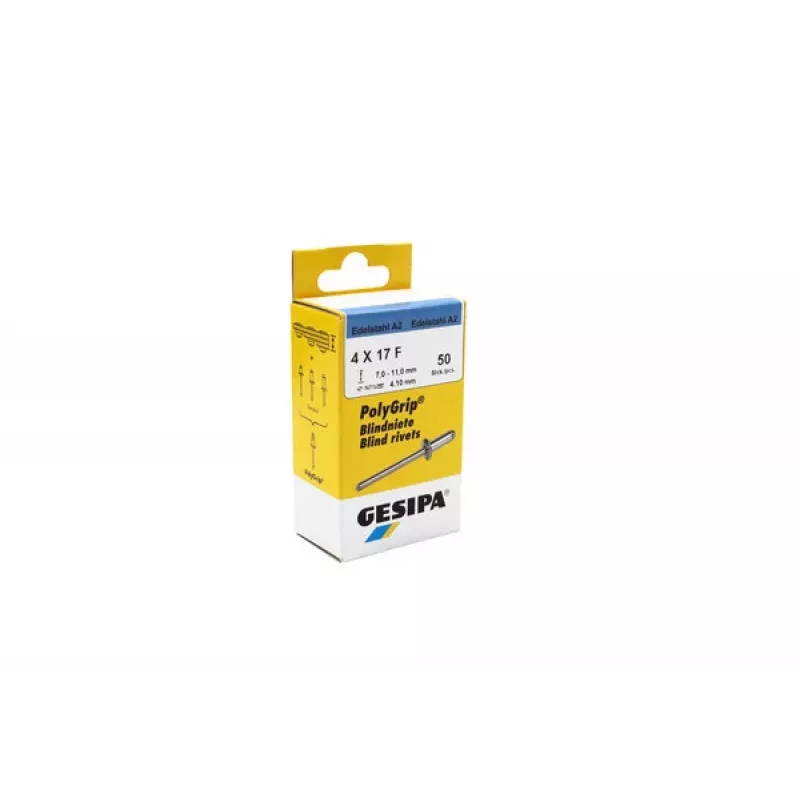

GESIPA PolyGrip® blindklinknagel RVS 4,0 x 17,0 mm, 50 stuks 1464826

The GESIPA PolyGrip® blind rivet in stainless steel offers multi-grip capability, allowing a single rivet size to securely join materials with varying thicknesses. Its 4.0 mm diameter and 17.0 mm length cover a grip range of 8.0 to 12.0 mm, making it ideal for applications where hole alignment is imperfect or oversized.

Highlights

• Multi-grip design reduces inventory by covering multiple material thicknesses with one rivet.
• Stainless steel construction provides high corrosion resistance for demanding environments.
• Dome head ensures a clean, finished appearance on the accessible side.
• Pack of 50 pieces for convenient workshop or production use.

In daily use

These rivets are suitable for joining different material thicknesses and bridging oversized or misaligned holes. The stainless steel mandrel and body deliver reliable setting performance and long-term joint integrity.

Full specifications

• Rivet type: Blind rivet
• Rivet series: PolyGrip®
• Material: Stainless steel (A2 / VA)
• Rivet diameter: 4.0 mm
• Rivet length: 17.0 mm
• Grip range: 8.0 - 12.0 mm
• Head type: Dome head
• Mandrel material: Stainless steel
• Quantity per pack: 50 pieces
• Recommended drill hole diameter: 4.1 - 4.2 mm
• Flange diameter (head diameter): 8.0 mm
• Corrosion resistance: High
• Application: Joining different material thicknesses, bridging oversized or misaligned holes
• Special feature: Multi-grip capability
• Standard compliance: DIN 7337 (similar)
• Tensile strength (approx.): 1.8 kN
• Shear strength (approx.): 2.5 kN
• Material grade: A2 (AISI 304 equivalent)

Final note

For reliable fastening in stainless steel applications, the PolyGrip® series delivers consistent performance across a wide grip range.
