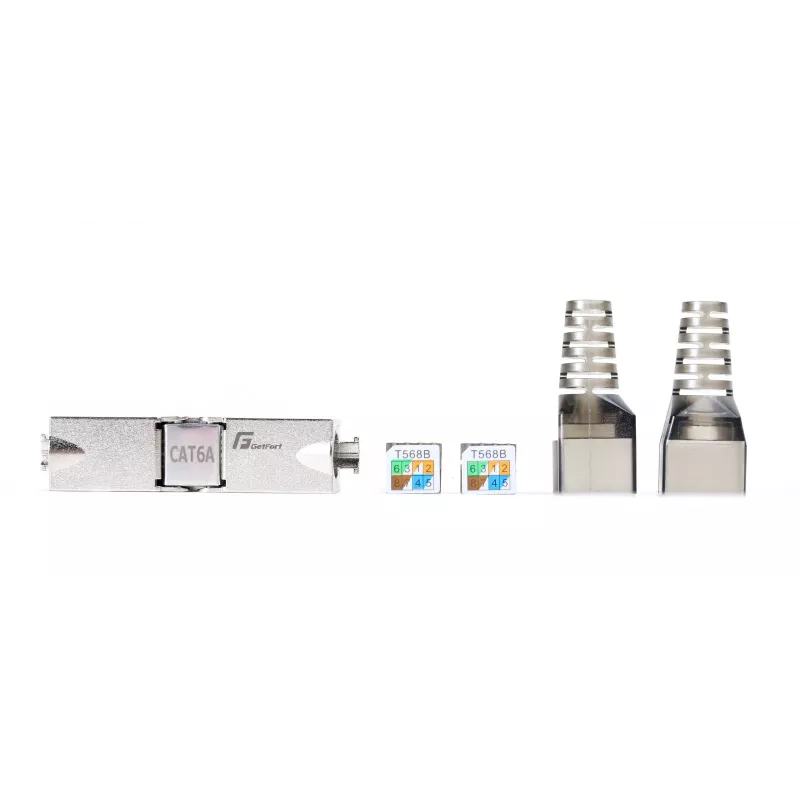

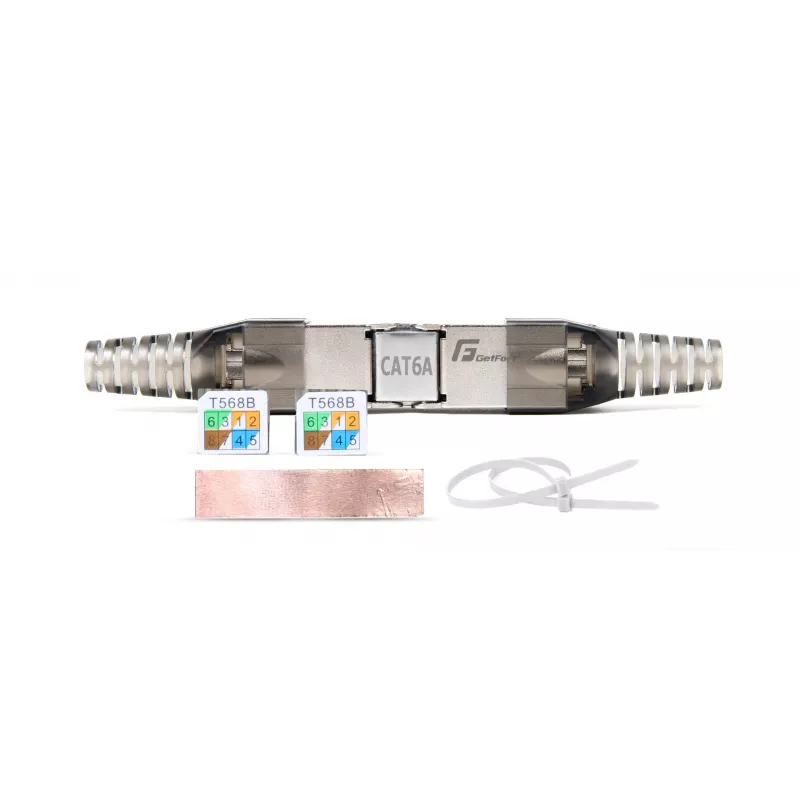

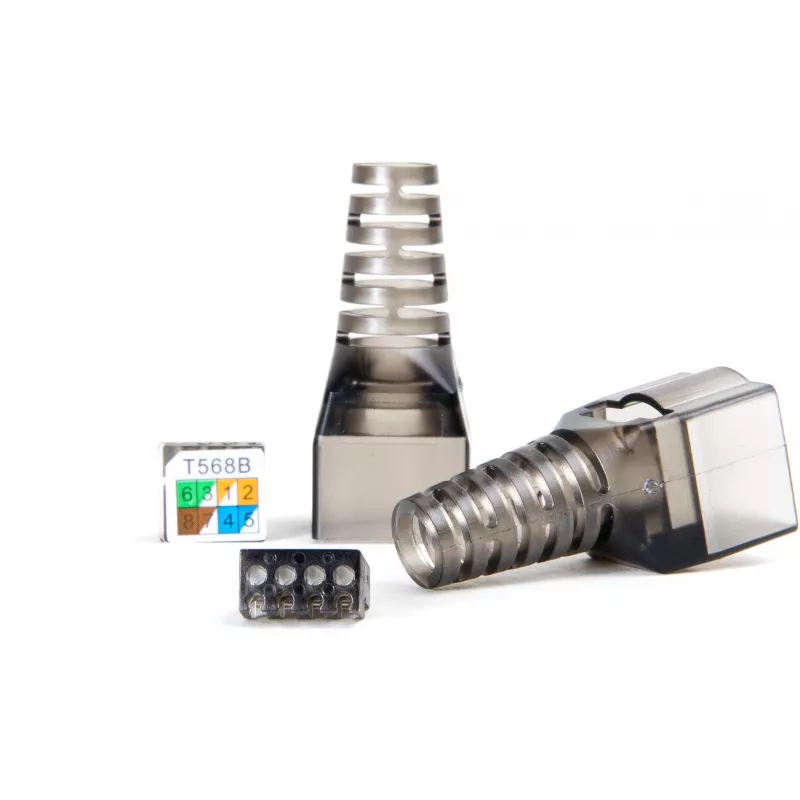

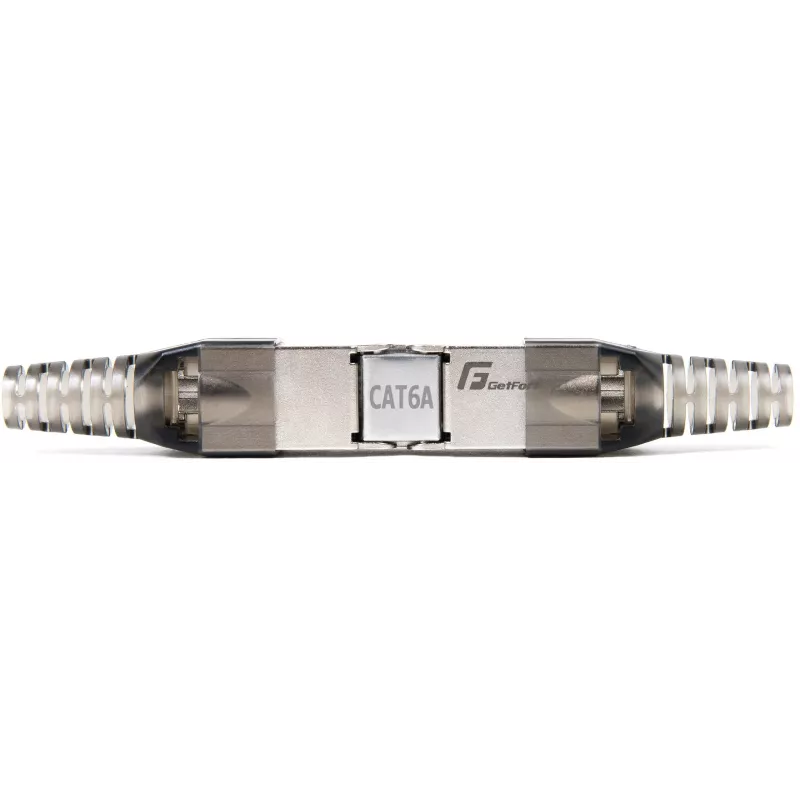

GETFORT 58460 CAT.6A gereedschapsloze afgeschermde RJ45 keystone jack module

The GETFORT 58460 stands apart from typical keystone jacks by combining true CAT.6A performance with a fully toolless termination—no punch-down tool required. Its zinc alloy shielded housing and 50µm gold-plated contacts ensure reliable 10 Gigabit Ethernet links even in electrically noisy environments, while the color-coded T568A/B wiring guide makes installation fast and error-free.

Highlights

• CAT.6A (Class EA) performance up to 500 MHz for 10GBASE-T networks
• Toolless IDC termination accepts 22–26 AWG solid or stranded conductors
• Shielded zinc alloy housing with FTP/STP cable support for EMI protection
• 50µm gold-plated phosphor bronze contacts for long-term corrosion resistance
• Supports PoE, PoE+, and PoE++ (IEEE 802.3af/at/bt) for powered devices
• Standard keystone footprint fits all common faceplates, patch panels, and surface boxes

In daily use

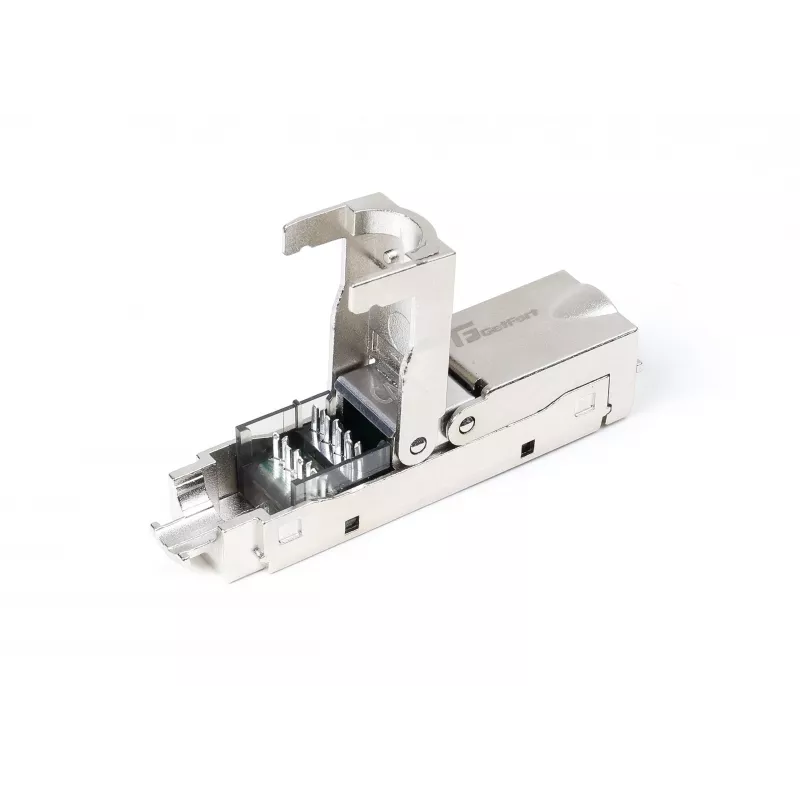

Installers will appreciate the speed of the toolless mechanism: strip the cable, lay the conductors into the clearly marked slots, and snap the cap closed. No special tools, no punch-down block, no re-terminations due to bent pins. The shielded die-cast body provides 360° grounding when used with shielded cable and connectors, maintaining signal integrity in industrial or high-density rack environments. For PoE applications, the robust contacts and thermal design handle up to 100W without degradation.

Full specifications

• Connector type: RJ45 female, 8P8C, unshielded or shielded cable compatible
• Category: CAT.6A (Class EA), backwards compatible with CAT.6, CAT.5e
• Shielding: FTP/STP, zinc alloy die-cast housing
• Termination: Toolless IDC, 22–26 AWG solid or stranded
• Frequency bandwidth: Up to 500 MHz
• PoE support: IEEE 802.3af (PoE), 802.3at (PoE+), 802.3bt (PoE++)
• Contact material: Phosphor bronze, 50µm gold plating
• Wiring scheme: T568A and T568B, color-coded
• Standards: TIA/EIA-568-C.2, ISO/IEC 11801, EN 50173
• Mounting: Standard keystone, 14.5 x 16 mm cutout
• Color: Silver / metallic
• Number of ports: 1

Final note

A future-proof, tool-free CAT.6A keystone jack that combines installer-friendly design with enterprise-grade shielding and PoE++ readiness—ideal for both new installations and retrofits.
