GETFORT BNC male naar schroefklem adapter 100 stuks

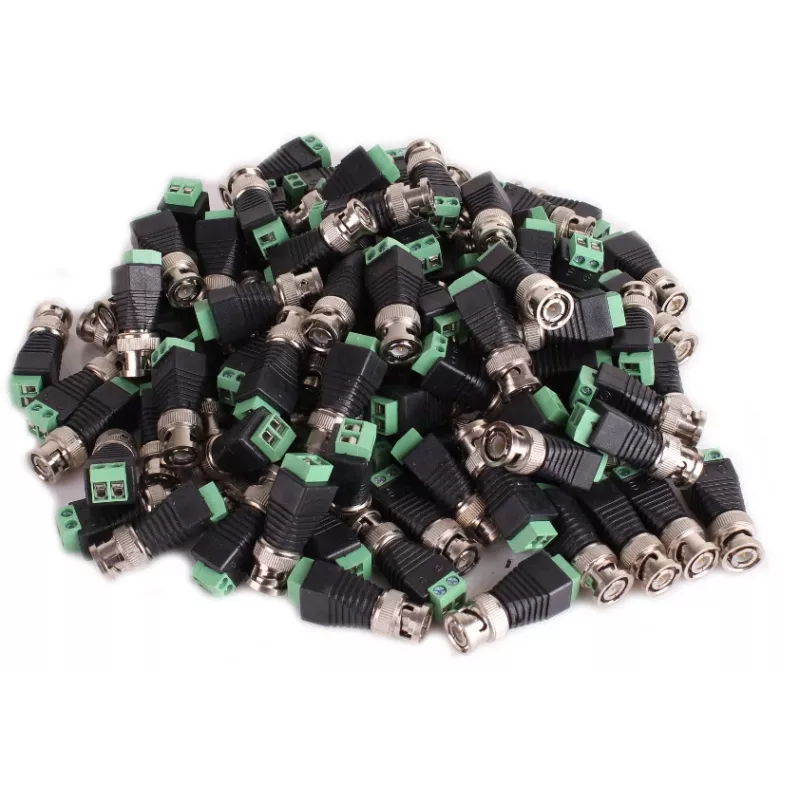

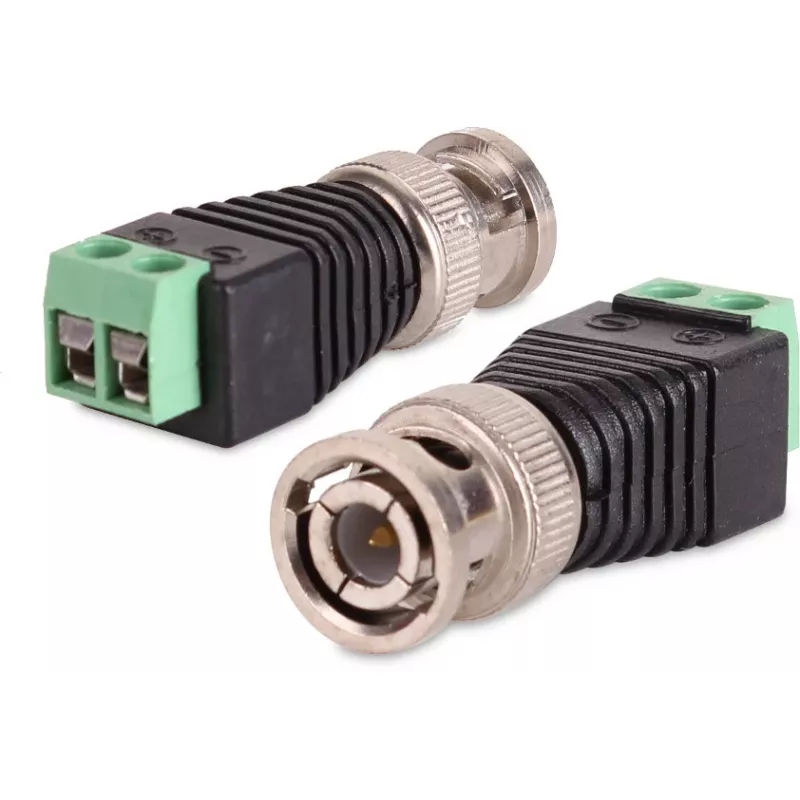

The GETFORT GF-BNC-W/S*P100 is a high-quality BNC male to screw terminal adapter, designed for quick and reliable connections in CCTV, video surveillance, and security systems. This pack contains 100 pieces, making it ideal for large installations or maintenance projects. The solderless, tool-free design allows for fast termination of coaxial cables such as RG59 and RG6, ensuring a secure connection without specialized tools.

Advantages

This adapter simplifies the installation process by eliminating the need for soldering or crimping. The screw terminal provides a robust and repeatable connection, reducing signal loss and ensuring long-term reliability. With a 75 Ohm impedance, it is perfectly matched for analog video signals. The nickel-plated zinc alloy body offers durability and corrosion resistance, while the PVC insulation ensures safe operation.

Suitable for

• CCTV and video surveillance systems
• Security camera installations
• Analog video signal transmission
• Coaxial cable termination in access control systems

Key specifications

• Connector Type: BNC Male
• Termination Method: Screw Terminal
• Quantity per Pack: 100 pieces
• Impedance: 75 Ohm
• Body Material: Zinc Alloy / Brass (Nickel Plated)
• Contact Plating: Nickel
• Insulation Material: PVC / Plastic
• Gender: Male
• Body Style: Straight
• Mounting Type: Cable Mount
• Signal Type: Analog Video
• Operating Temperature: -20°C to +70°C
• Voltage Rating: Low Voltage (up to 50V AC/DC)
• Durability: 500 Mating Cycles
• RoHS Compliant: Yes
• Color: Silver

Recommendations

For best performance, use with high-quality coaxial cables such as RG59 or RG6. Ensure the screw terminals are tightened securely to maintain signal integrity. This product is not suitable for digital video signals or high-frequency applications.
