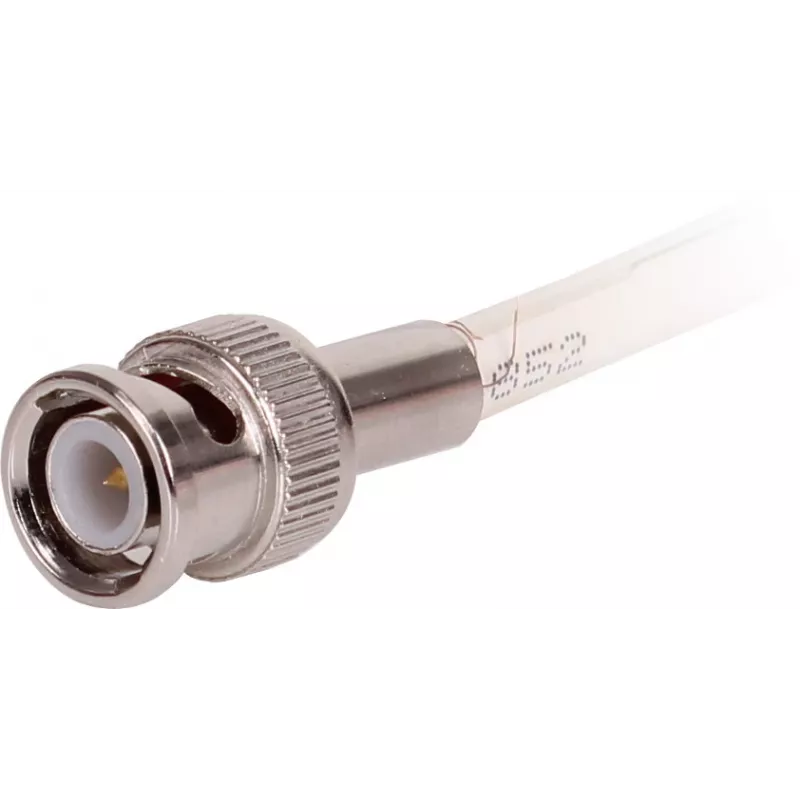

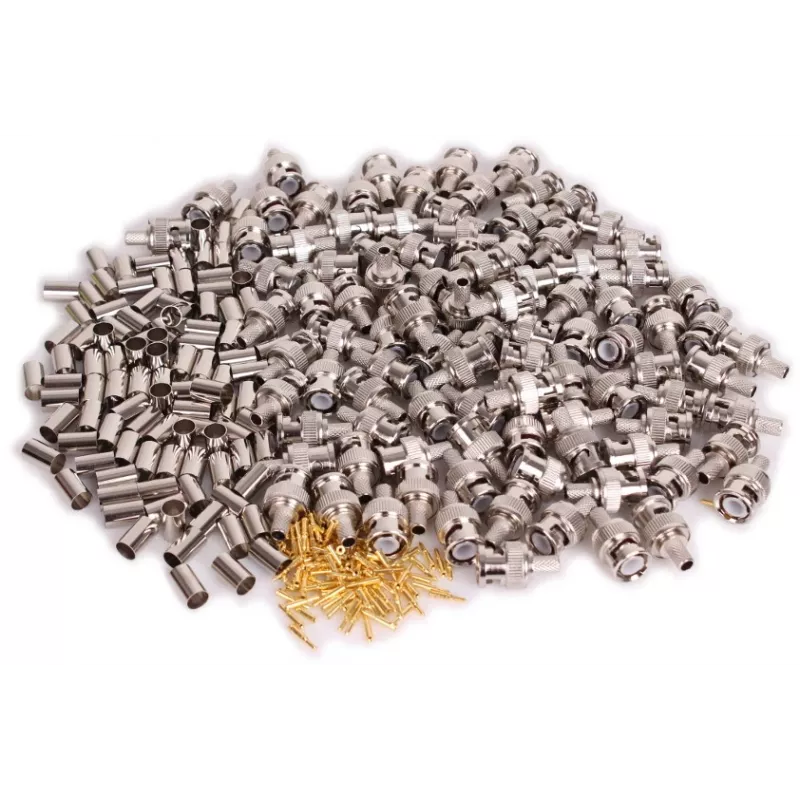

GETFORT BNC-Z RG59 krimp BNC male stekker voor RG59 coaxkabel, 100 stuks

The GETFORT BNC-Z RG59 Crimp BNC Male Plug is a high-quality connector designed for reliable termination of RG59 coaxial cables. Ideal for CCTV, video surveillance, and security systems, this connector ensures excellent signal transmission with 75 Ohm impedance and gold-plated center contact. Each pack contains 100 pieces, making it perfect for large installations.

Advantages

Gold-plated center contact for corrosion resistance and optimal conductivity. Nickel-plated brass body provides durability and shielding. PTFE insulator ensures stable performance across a wide temperature range. Easy crimp termination saves installation time.

Suitable for

• CCTV and video surveillance systems
• Security camera installations
• RG59 coaxial cable connections
• Professional and DIY cabling projects

Key specifications

• Connector Type: BNC Male Plug
• Cable Compatibility: RG59 Coaxial Cable
• Termination Method: Crimp
• Impedance: 75 Ohm
• Body Material: Brass, Nickel Plated
• Center Contact: Brass, Gold Plated
• Insulator: PTFE
• Frequency Range: DC - 1 GHz
• Voltage Rating: 500V Peak
• Durability: 500 Mating Cycles
• Operating Temperature: -40°C to +85°C
• Package Quantity: 100 pieces

Recommendations

For best performance, use with a compatible crimping tool designed for RG59 connectors. Ensure proper cable preparation and crimp pressure to maintain signal integrity.
