GETFORT Cat.5e F/UTP outdoor gelgevulde patchkabel 500m zwart

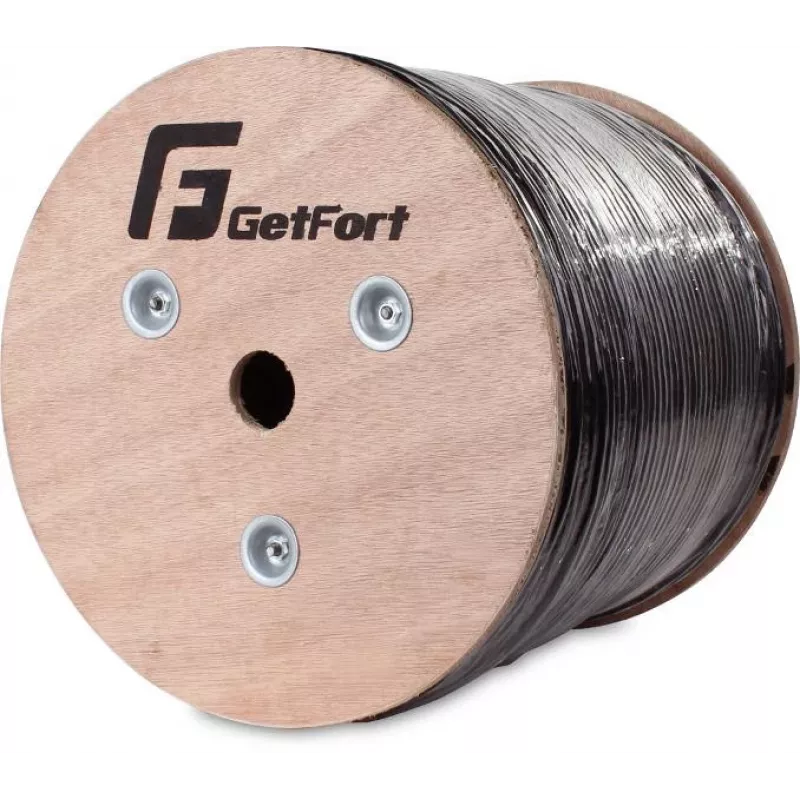

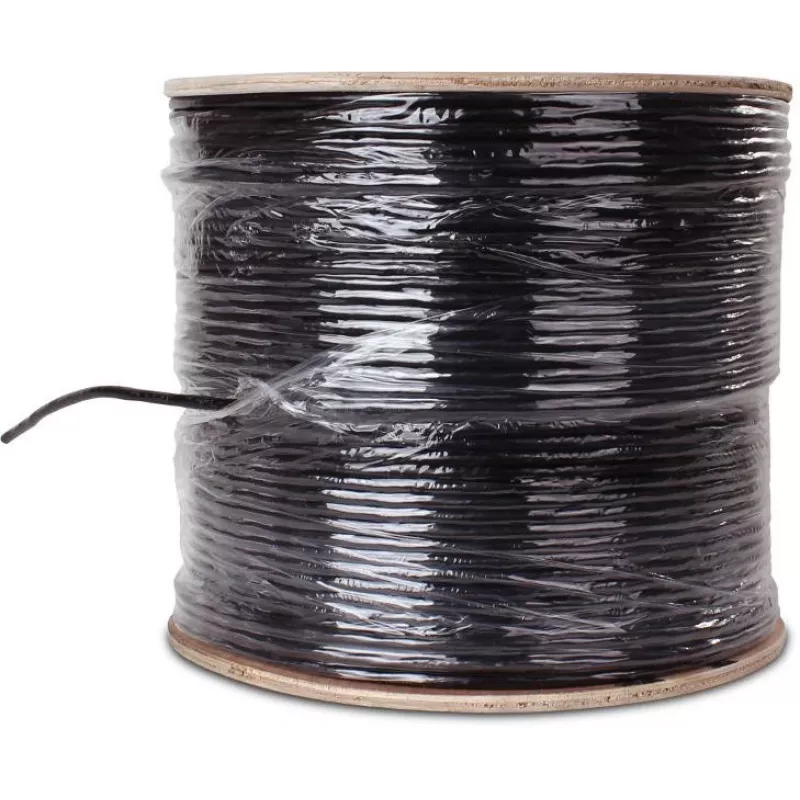

The GETFORT GF-5FTP-E-UVG-500 is a high-performance Cat.5e F/UTP outdoor cable, designed for reliable data transmission in harsh environments. With a length of 500 meters on a wooden reel, this solid cable features oxygen-free copper (OFC) conductors and a gel-filled PE jacket that provides excellent UV resistance and water blocking, making it ideal for direct burial and outdoor installations.

Advantages

This cable ensures stable Gigabit Ethernet performance up to 1000 Mbps with a bandwidth of 100 MHz. The F/UTP shielding reduces electromagnetic interference, while the gel-filled construction prevents moisture ingress, guaranteeing long-term reliability. The black PE jacket is UV-resistant, protecting against sun damage.

Suitable for

• Outdoor network installations
• Direct burial applications
• Industrial Ethernet environments
• Long-distance cabling up to 500m

Key specifications

• Cable Standard: Cat.5e (Category 5e)

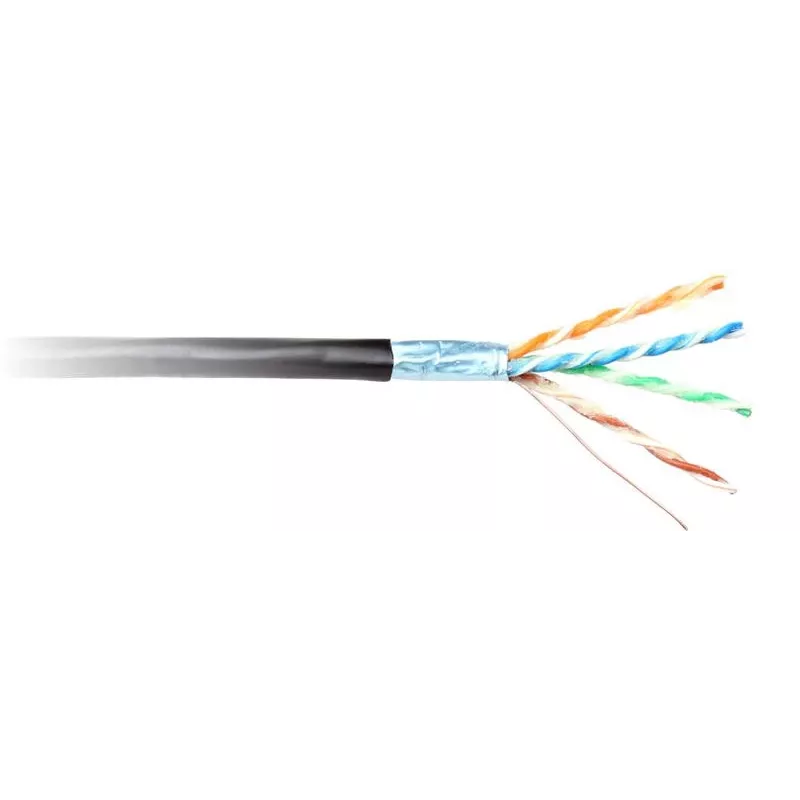

• Shielding Type: F/UTP (Foiled/Unshielded Twisted Pair)
• Conductor Material: OFC (Oxygen-Free Copper)
• Conductor Gauge: 24 AWG
• Number of Pairs: 4 Pairs
• Cable Construction: Solid
• Jacket Material: PE (Polyethylene)
• Jacket Color: Black
• UV Resistance: Yes
• Water Blocking: Gel-Filled
• Application Environment: Outdoor, Direct Burial
• Length: 500 meters
• Packaging: Wooden Reel
• Max Bandwidth: 100 MHz
• Data Transfer Rate: Up to 1000 Mbps (Gigabit Ethernet)
• Outer Diameter: ~6.2 mm
• Operating Temperature: -20°C to +60°C
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Recommendations

For optimal performance, use with appropriate RJ45 connectors and ensure proper grounding of the shield. Suitable for outdoor runs where moisture and UV exposure are concerns.
