GETFORT Cat.5e U/UTP outdoor gelgevulde twisted-pairkabel 500m zwart

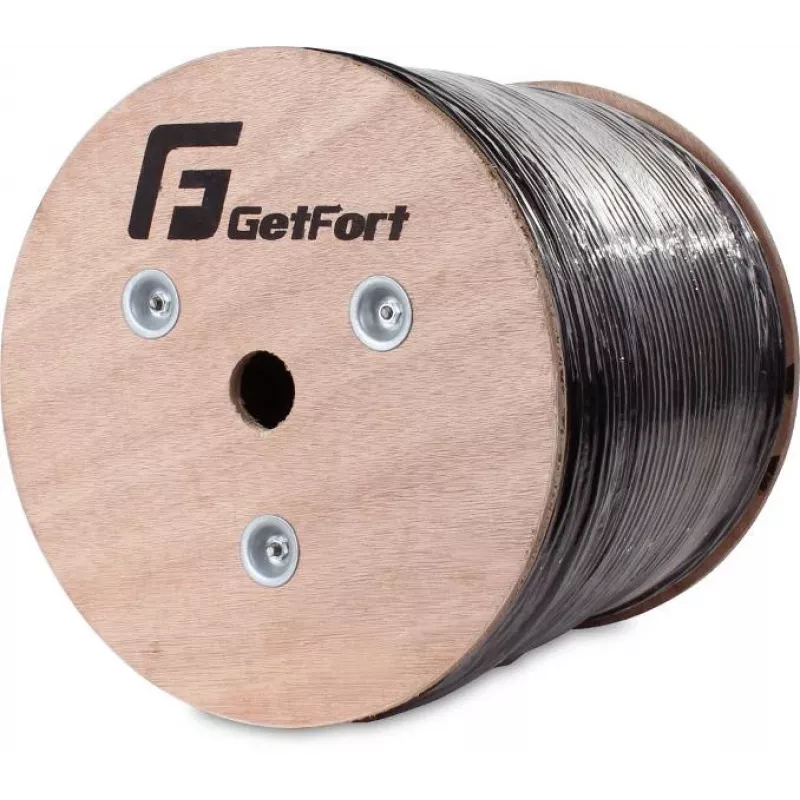

The GETFORT GF-5UTP-E-UVG-500 is a high-performance Cat.5e U/UTP outdoor twisted pair cable, specifically designed for direct burial and external installations. With a length of 500 meters on a wooden reel, this gel-filled cable offers superior protection against moisture and UV radiation, ensuring reliable data transmission in harsh environments.

Advantages

Gel-filled construction prevents water ingress and corrosion, making it ideal for outdoor and underground use. UV-resistant PE jacket withstands prolonged sun exposure. Solid bare copper conductors ensure excellent signal integrity and support Gigabit Ethernet speeds up to 1000BASE-T.

Suitable for

• Outdoor network installations
• Direct burial applications
• Connecting buildings or remote devices
• Long-distance horizontal cabling

Key specifications

• Category: Cat.5e
• Shielding: U/UTP (Unshielded Twisted Pair)

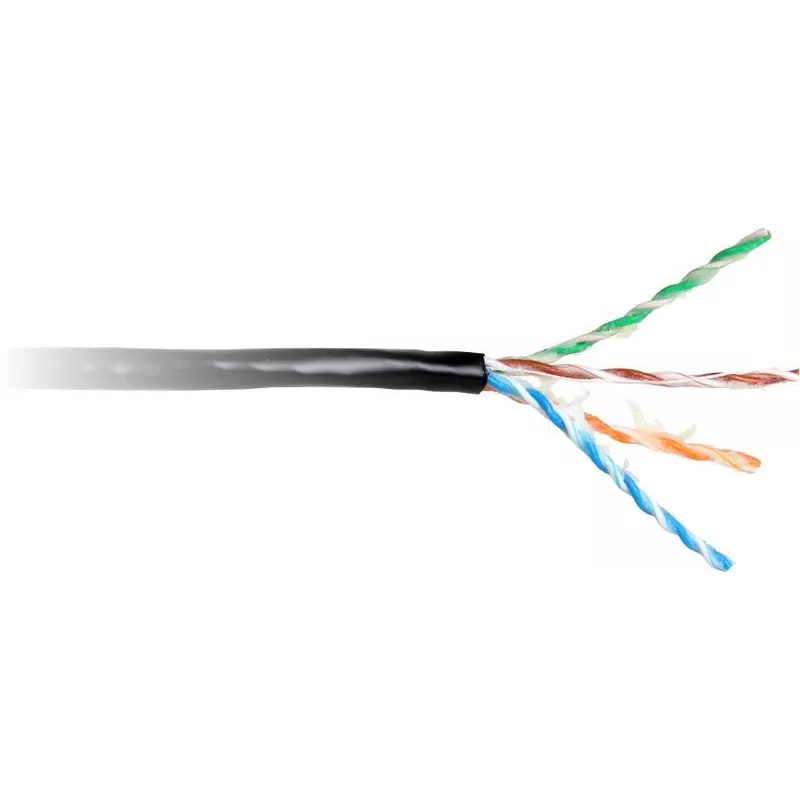

• Conductor: Solid Bare Copper, 24 AWG
• Number of Pairs: 4
• Jacket Material: PE (Polyethylene), Black
• Gel Filled: Yes
• UV Resistant: Yes
• Length: 500 m

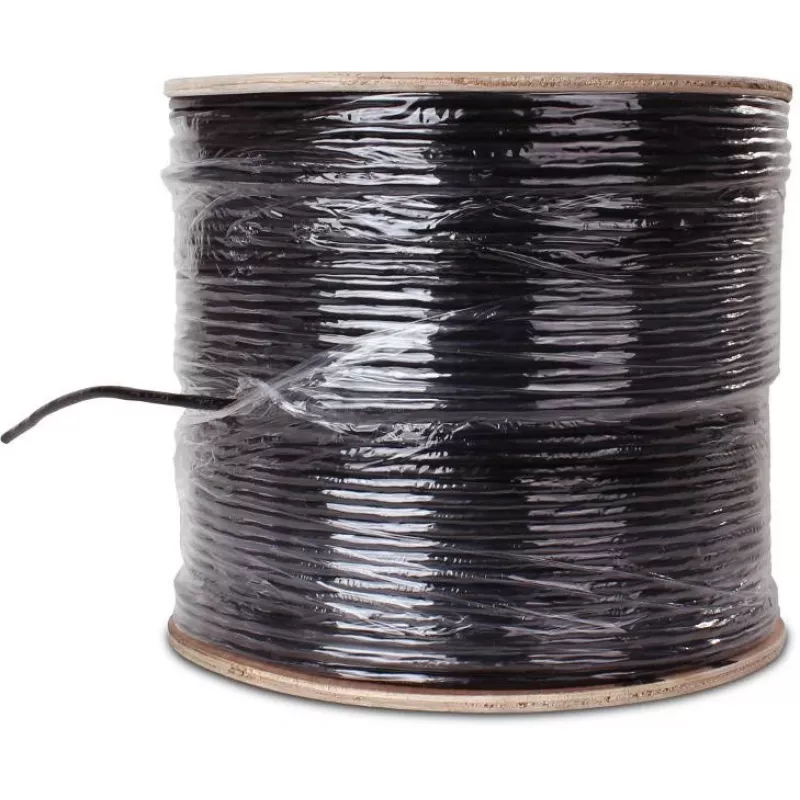

• Packaging: Wooden Reel
• Standards: TIA/EIA-568-C.2, ISO/IEC 11801, EN 50173
• Bandwidth: 100 MHz
• Data Rate: Up to 1 Gbps
• Outer Diameter: Approx. 6.2 mm
• Operating Temperature: -20°C to +60°C

Recommendations

For optimal performance, use with appropriate outdoor-rated connectors and ensure proper grounding. Avoid sharp bends and excessive tension during installation.
