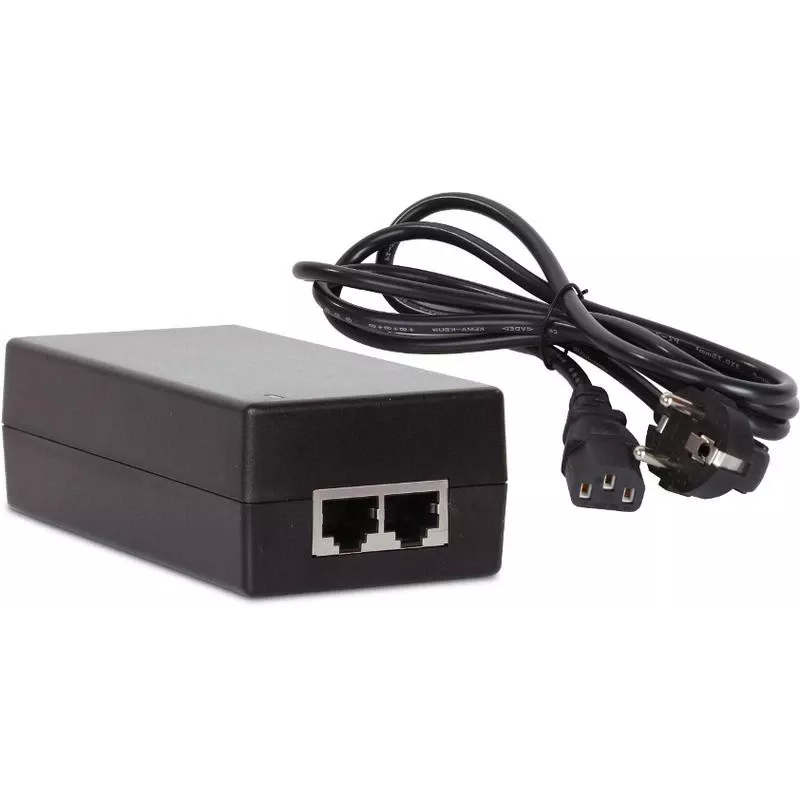

GETFORT GF-48D500 PoE-adapter 48V 0.5A 24W passieve PoE-injector

The GETFORT GF-48D500 is a high-quality passive PoE adapter designed to deliver reliable power and data to network devices such as IP cameras, VoIP phones, and wireless access points. With an output of 48V DC and 0.5A (500mA), it provides up to 24W of power over Ethernet, ensuring stable operation for your equipment. This compact and durable adapter features two RJ45 ports (Data In and PoE Out) and supports 10/100 Mbps data rates, making it an ideal solution for expanding your network infrastructure.

Advantages

• Reliable 48V passive PoE power delivery up to 24W
• Compact ABS plastic housing with black finish
• Built-in protection against overload, overvoltage, and short circuits
• LED indicator for power status

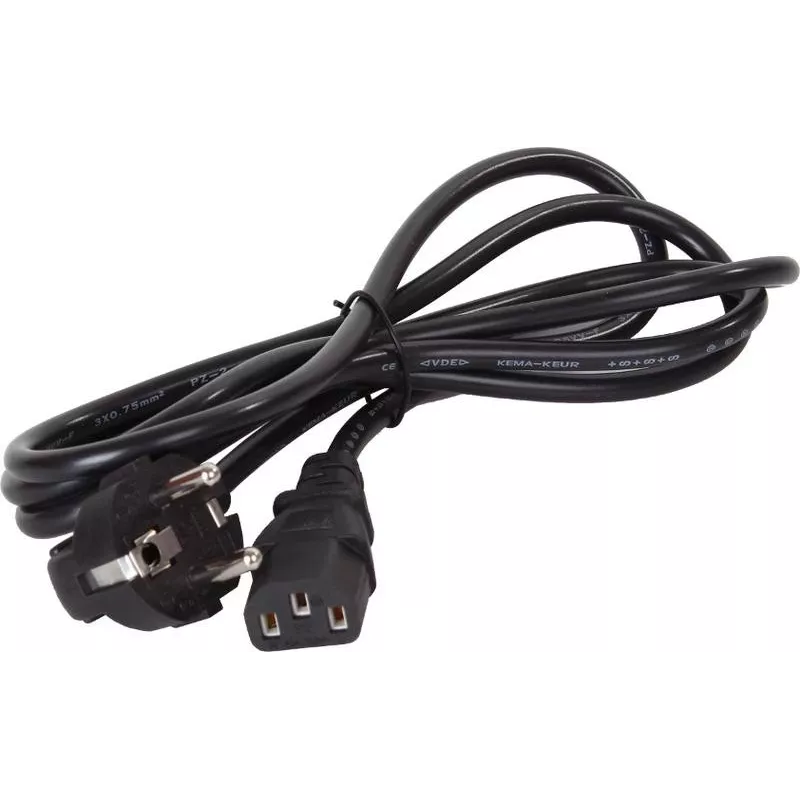

• Easy plug-and-play installation with included power cord

Suitable for

• IP cameras requiring 48V passive PoE
• VoIP phones
• Wireless access points
• Any network device compatible with 48V passive PoE

Key specifications

• Input: 100-240V AC, 50/60 Hz
• Output: 48V DC, 0.5A (500mA), 24W
• PoE Standard: Passive PoE
• Data Rate: 10/100 Mbps

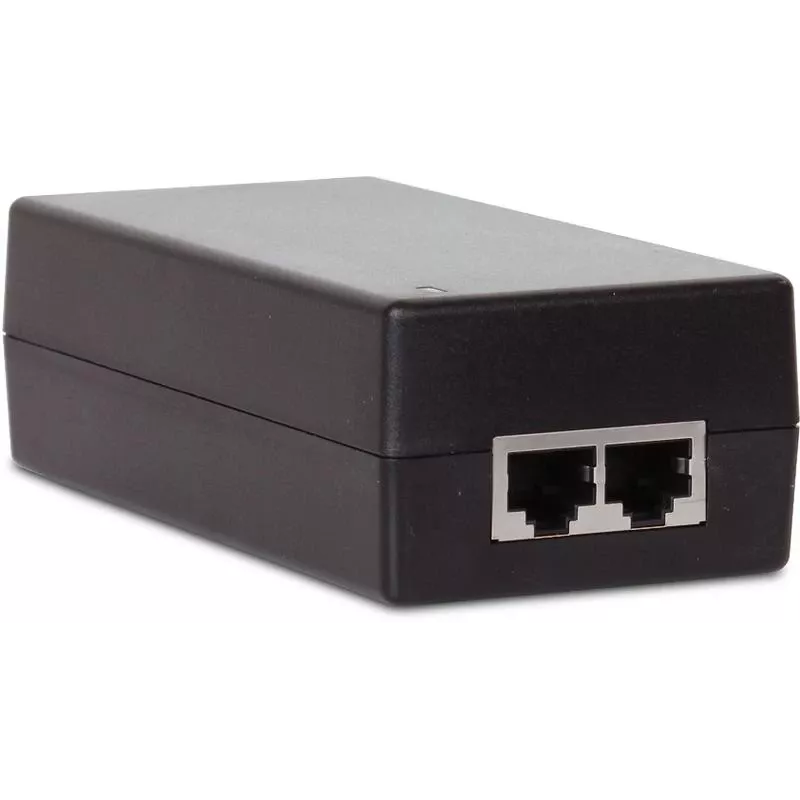

• Ports: 1x Data In (RJ45), 1x PoE Out (RJ45)

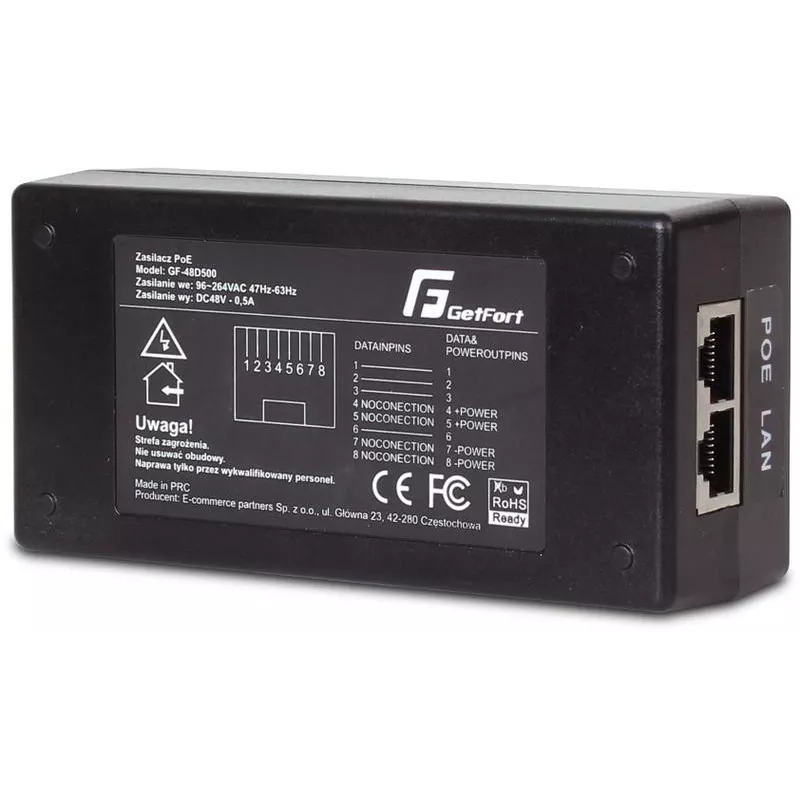

• PoE Pin Assignment: V+ (4,5), V- (7,8)

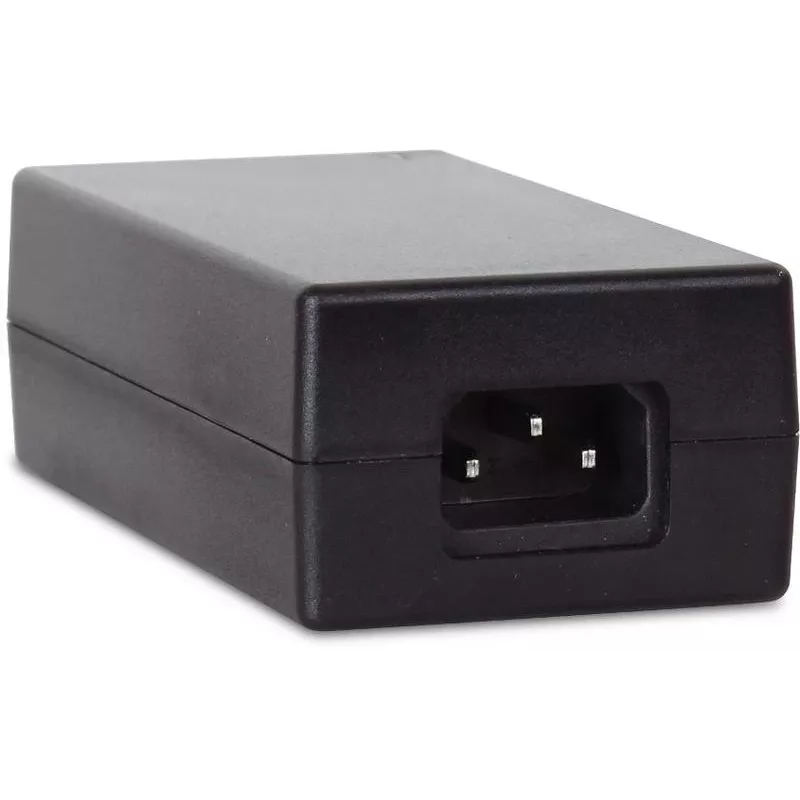

• AC Connector: IEC C8 (Figure-8)
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 85°C
• Humidity: 5% to 90% non-condensing
• Housing: ABS Plastic, Black

Recommendations

For optimal performance, use this adapter with devices that support 48V passive PoE. Ensure proper ventilation and avoid exposure to extreme temperatures or moisture.
