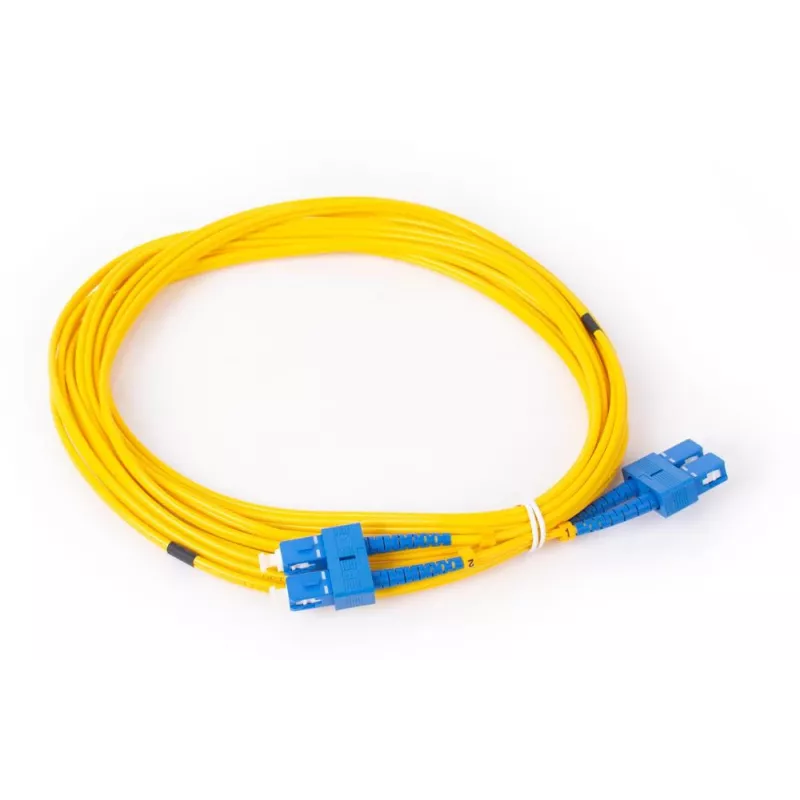

GETFORT GF-SUSUD5 singlemode SC/UPC naar SC/UPC duplex glasvezel-patchkabel 5m Geel

The GETFORT GF-SUSUD5 is a high-quality single-mode fiber optic patch cord designed for reliable, high-speed data transmission in data centers, telecommunications networks, LANs, and FTTH applications. This duplex cable features SC/UPC connectors on both ends, ensuring low insertion loss and high return loss for optimal signal integrity.

Advantages

Engineered with precision ceramic ferrules and UPC polish, this patch cord delivers typical insertion loss ≤0.3 dB and return loss ≥50 dB, minimizing signal degradation. The duplex configuration supports bidirectional communication, while the yellow PVC jacket provides durability and easy identification for single-mode cabling.

Suitable for

• Data center interconnects
• Telecommunications networks
• Local area networks (LAN)
• Fiber to the home (FTTH) installations
• Active equipment patching

Key specifications

• Fiber Type: Single-Mode (SM) 9/125 µm

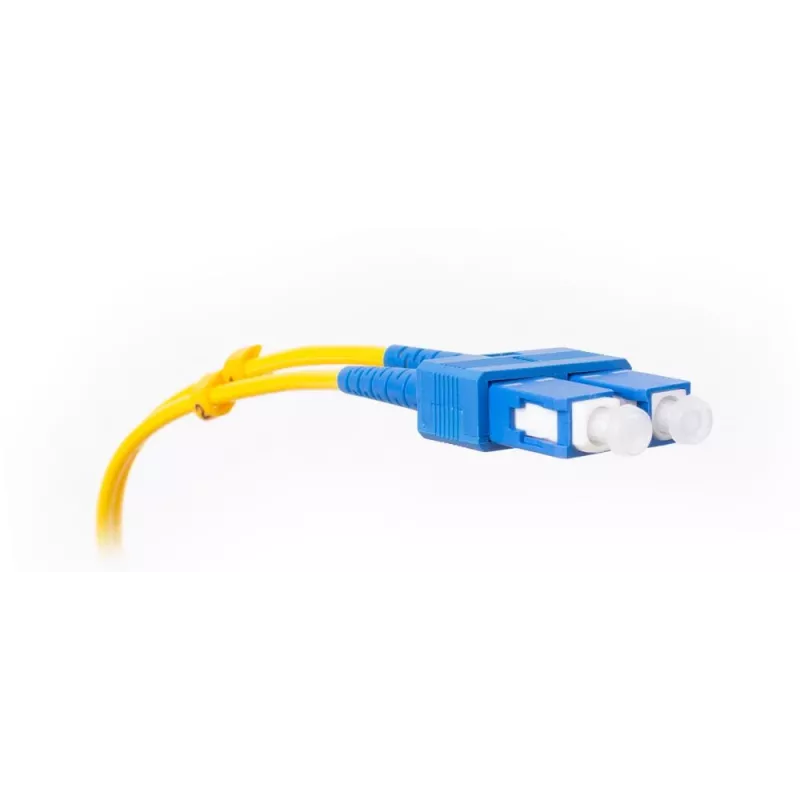

• Connectors: SC/UPC to SC/UPC, Duplex
• Length: 5 meters
• Jacket: PVC, Yellow, 3.0 mm diameter
• Insertion Loss: ≤0.3 dB (typical)
• Return Loss: ≥50 dB (typical)
• Operating Wavelengths: 1310 nm, 1550 nm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Minimum Bend Radius: 10D (dynamic), 20D (static)
• Compliance: RoHS

Recommendations

For optimal performance, ensure connectors are clean before mating. Avoid sharp bends and excessive tension during installation. This patch cord is ideal for high-speed networks requiring reliable single-mode connections.
