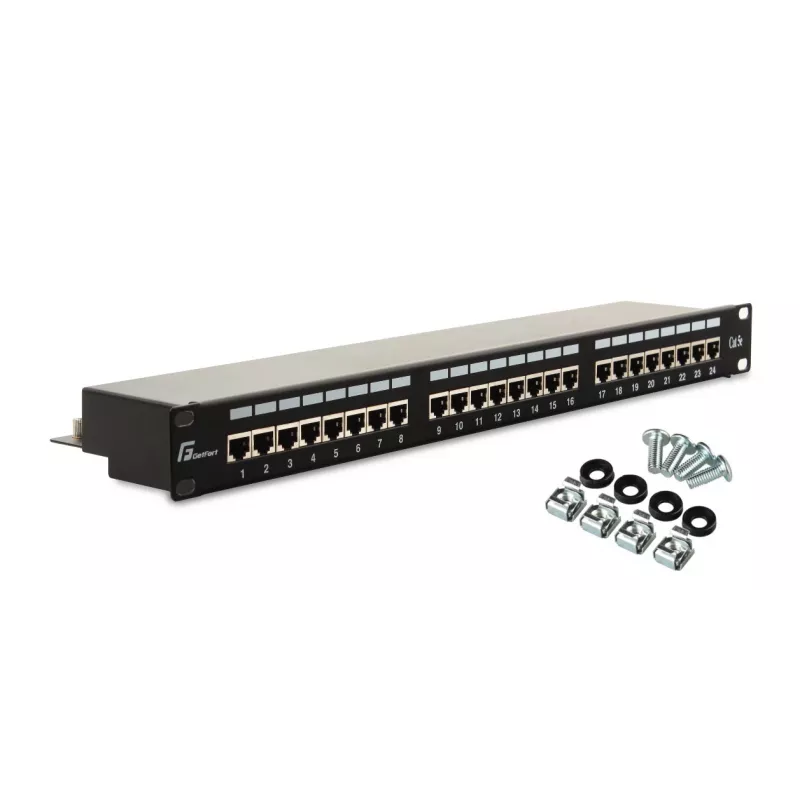

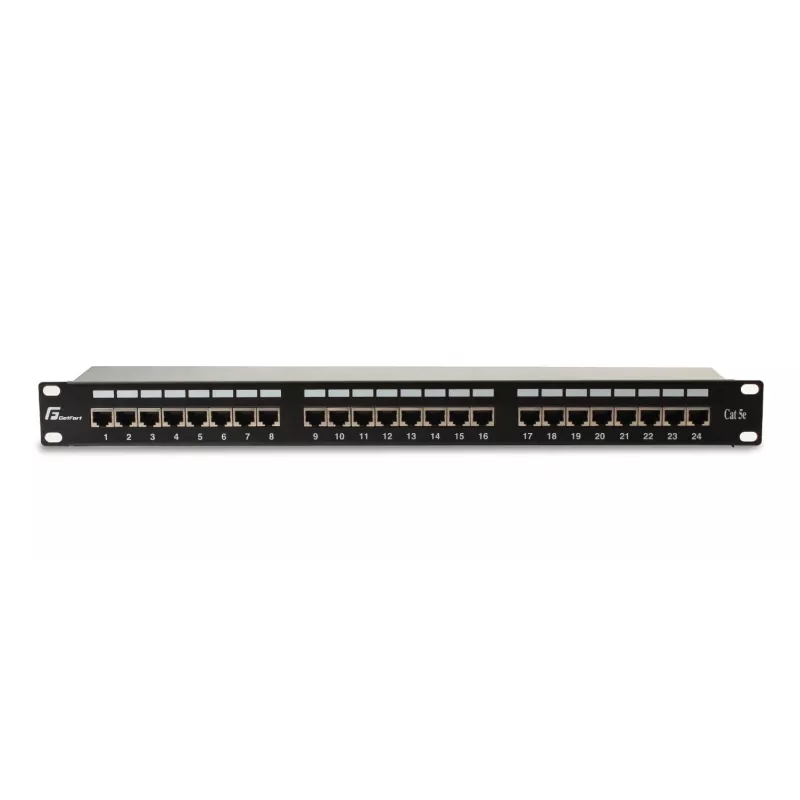

GETFORT PGF-5EFTP24-B6 patchpanel FTP Cat.5e 24 poorts 1U zwart

The GETFORT PGF-5EFTP24-B6 is a high-performance FTP (Foiled Twisted Pair) patch panel designed for structured cabling in data centers, server rooms, and network cabinets. With 24 RJ45 ports and Category 5e compliance, it supports 10/100/1000BASE-T Ethernet networks, ensuring reliable data transmission. The 1U rackmount design and black SPCC steel housing provide durability and easy integration into standard 19-inch racks.

Advantages

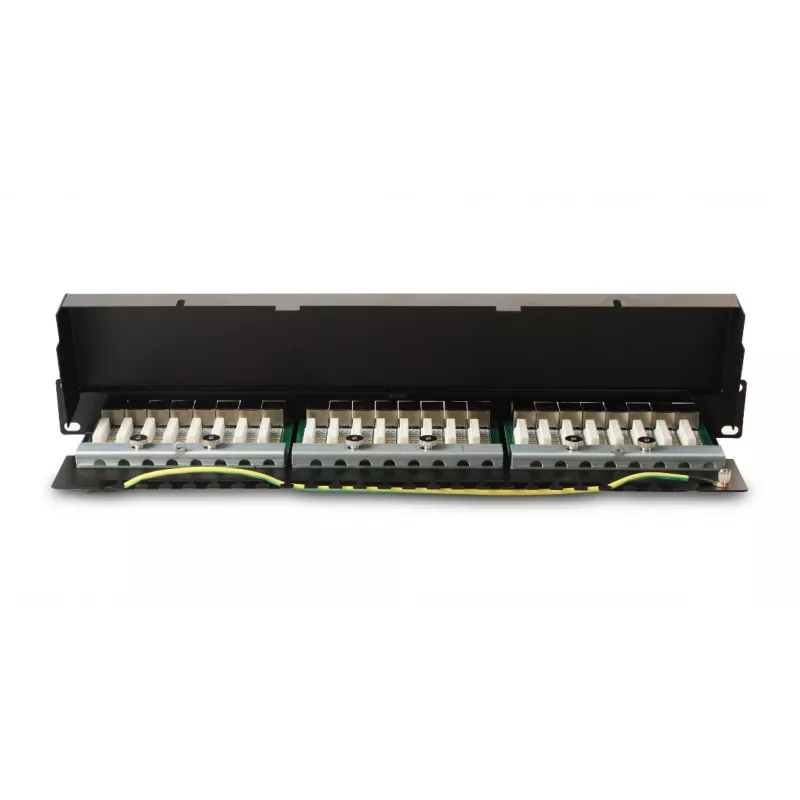

This patch panel offers excellent signal integrity and noise protection thanks to its FTP shielding and gold-plated phosphor bronze contacts. The IDC termination supports TIA/EIA 568 A/B wiring standards, making installation quick and efficient. Built-in grounding wire ensures safety and performance.

Suitable for

• Data centers requiring organized cable management
• Server rooms with high-density network connections
• Network cabinets in enterprise environments

Key specifications

• Product Type: Patch Panel
• Number of Ports: 24
• Network Standard: Category 5e (Cat.5e)
• Shielding Type: FTP (Foiled Twisted Pair)
• Mounting Type: Rackmount
• Rack Unit Size: 1U
• Connector Type: RJ45
• Termination Type: IDC
• Wiring Standard: TIA/EIA 568 A/B
• Housing Material: SPCC Steel
• Contact Material: Phosphor Bronze with Gold Plating
• Color: Black
• Grounding: Yes, with grounding wire
• Compatibility: 10/100/1000BASE-T Ethernet
• Certifications: RoHS, CE
• Operating Temperature: -10°C to 60°C
• Humidity Range: 10% to 90% RH (non-condensing)

Recommendations

For optimal performance, use with Cat.5e or higher FTP cables and ensure proper grounding. Ideal for structured cabling in professional network installations.
