GETFORT SM LC/APC naar LC/APC duplex glasvezel-patchkabel 5m

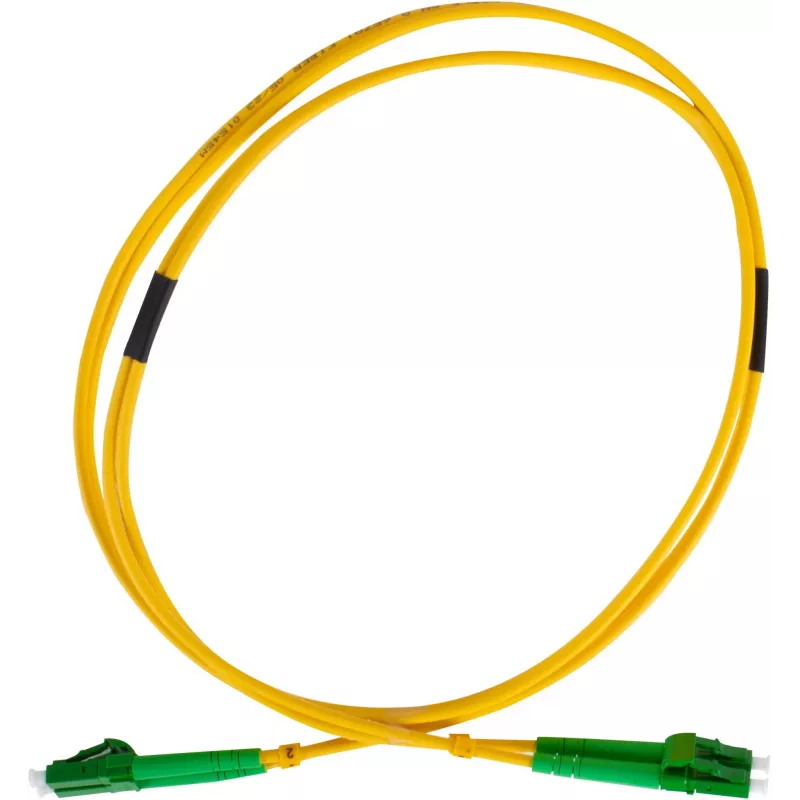

The GETFORT GF-LALAD5 is a high-quality single-mode fiber optic patch cable designed for reliable and high-speed data transmission. Featuring LC/APC connectors on both ends with a duplex configuration, this 5-meter cable is ideal for FTTH, data centers, and telecommunications networks. The yellow LSZH jacket ensures safety and easy identification.

Advantages

Low insertion loss (≤0.2 dB) and high return loss (≥60 dB) ensure excellent signal integrity. The APC polish minimizes back reflection, making it suitable for high-precision applications. LSZH jacket provides fire safety and low smoke emission.

Suitable for

• Data centers
• Telecommunications networks
• FTTH (Fiber to the Home)
• LAN and WAN infrastructure

Key specifications

• Fiber mode: Single-Mode (9/125 µm)

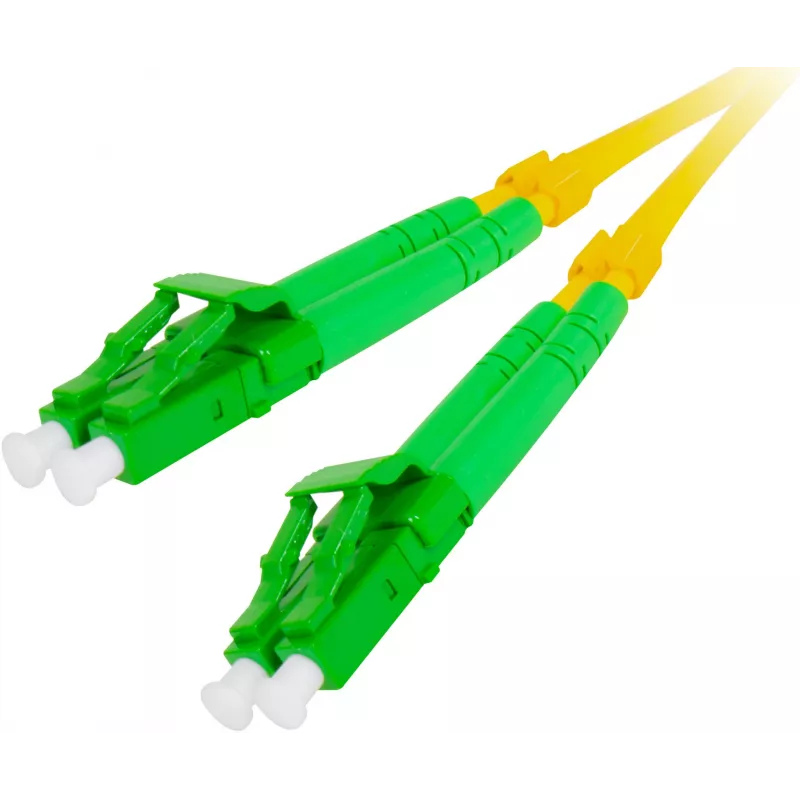

• Connectors: LC/APC to LC/APC Duplex
• Cable length: 5 meters
• Jacket material: LSZH, yellow
• Insertion loss: ≤0.2 dB
• Return loss: ≥60 dB
• Compliance: RoHS, CE, TIA/EIA-568-C.3

Recommendations

For optimal performance, avoid sharp bends and maintain the minimum bend radius of 30 mm. Use appropriate cable management to prevent damage.
