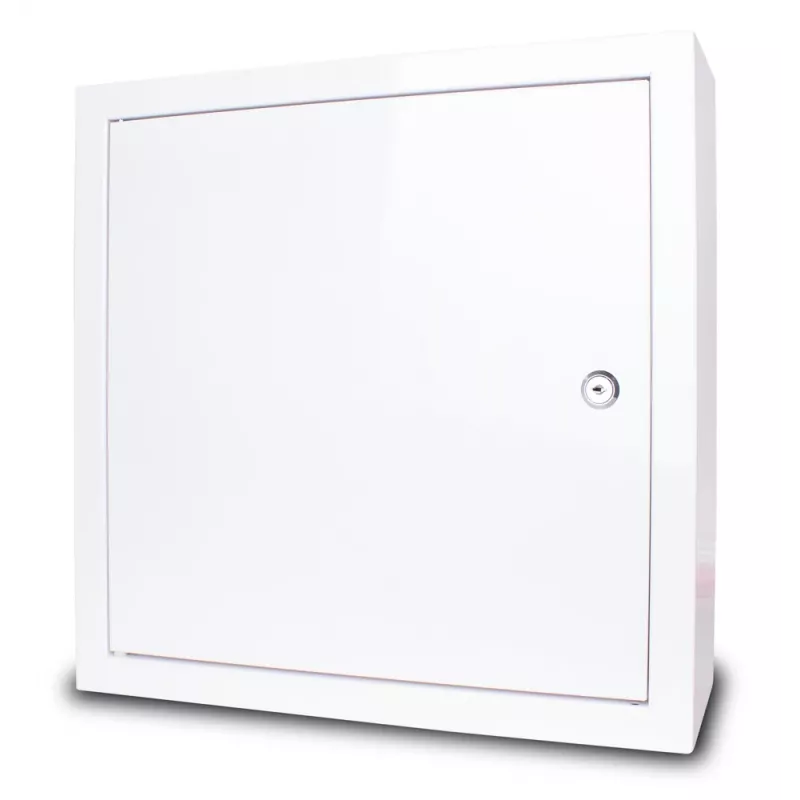

Getfort TPR-4 metalen behuizing 400x400x140 mm v2 grijs IP54

The Getfort TPR-4 Metal Enclosure is a robust and reliable solution for housing sensitive electronic equipment in demanding environments. Designed for wall-mounted installation, this hermetic enclosure offers excellent protection against dust and water ingress with an IP54 rating. Its powder-coated steel construction ensures durability and longevity, making it ideal for CCTV, alarm systems, IT, and industrial automation applications.

Advantages

This enclosure features a single hinged door with a 180° opening angle, providing easy access for installation and maintenance. The cylinder lock with two keys secures your equipment, while the internal mounting plate (galvanized steel) simplifies component mounting. Earthing studs on both door and body ensure proper grounding. Cable management is facilitated by four gland plates on top and bottom.

Suitable for

• CCTV systems
• Alarm systems
• IT equipment
• Industrial automation
• Electrical distribution

Key specifications

• External dimensions (W x H x D): 400 x 400 x 140 mm
• Material: Powder-coated steel
• Colour: Grey (RAL 7035)
• Protection rating: IP54

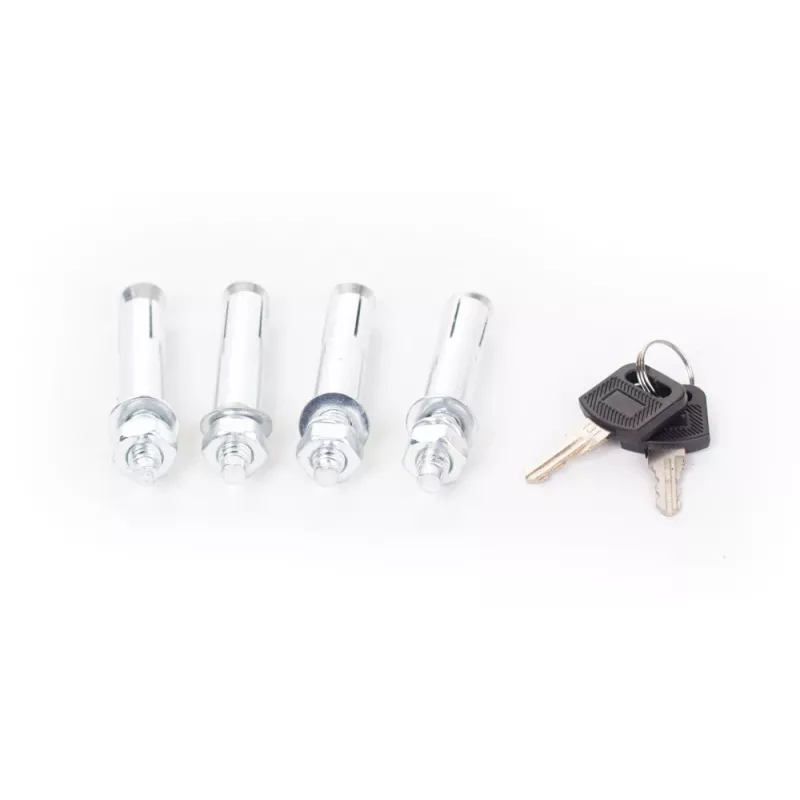

• Lock type: Cylinder lock with 2 keys
• Mounting: Wall-mounted
• Door: Single hinged, 180° opening
• Body thickness: 0.8 mm
• Door thickness: 1.0 mm
• Internal mounting plate: Yes (galvanized steel)
• Cable entries: 4 gland plates (top/bottom)
• Earthing: Yes (studs on door and body)
• Version: v2

Recommendations

For optimal performance, ensure proper cable gland selection and sealing. The enclosure is suitable for indoor and outdoor use where IP54 protection is sufficient. Always follow local electrical codes for installation.
