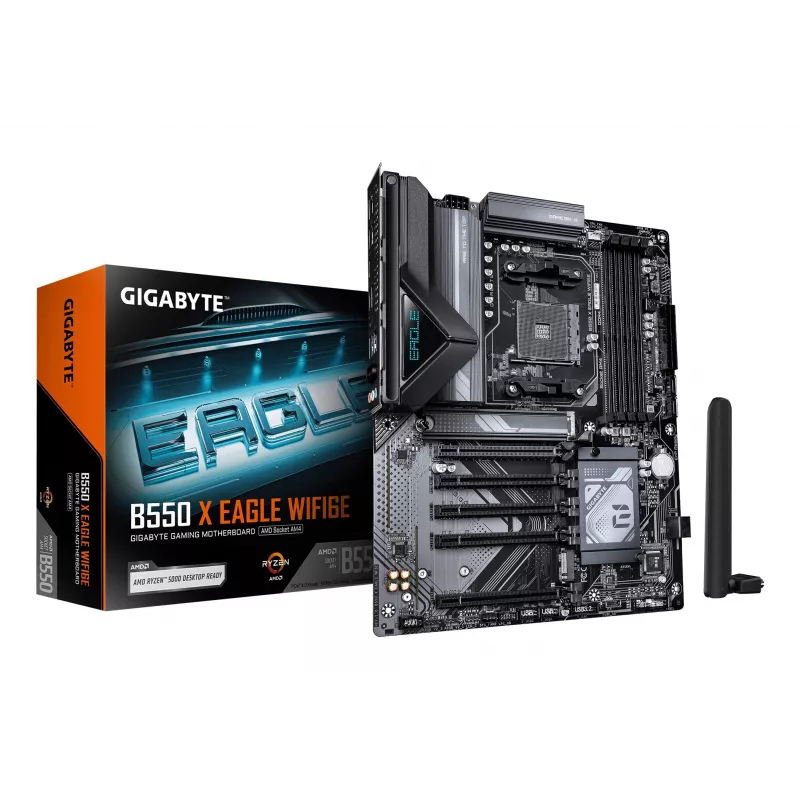

Gigabyte B550 X Eagle WiFi6E ATX-moederbord, AM4, DDR4

The Gigabyte B550 X Eagle WiFi6E is an ATX motherboard for the AMD Socket AM4 platform, supporting AMD Ryzen 5000, 4000, and 3000 Series processors. It features the AMD B550 chipset, dual-channel DDR4 memory with four DIMM slots, and integrated Wi-Fi 6E and Bluetooth 5.3.

Key features

• AMD Socket AM4, AMD B550 chipset
• Supports AMD Ryzen 5000, 4000, and 3000 Series processors
• Dual Channel DDR4, 4 DIMM slots, up to 128 GB
• Wi-Fi 6E (802.11ax) and Bluetooth 5.3
• 2.5 Gigabit Ethernet (Realtek RTL8125)
• 2 M.2 slots, including 1 PCIe 4.0 x4
• 4 SATA 6Gb/s connectors, RAID 0/1/10 support
• HDMI port, max resolution 4096 x 2160 @ 60 Hz
• Realtek Audio CODEC, High Definition Audio 2/4/5.1/7.1-channel

Specifications

• Brand: Gigabyte
• Model: B550 X EAGLE WF6E
• Form factor: ATX
• CPU socket: Socket AM4
• Chipset: AMD B550
• Memory type: DDR4
• Number of DDR4 slots: 4
• Maximum memory: 128 GB
• Memory bus frequencies: 2133 MHz, 2400 MHz, 2667 MHz, 2933 MHz, 3200 MHz
• Expansion slots: 1 x PCIe x16, 4 x PCIe x16, 2 x M.2
• Storage interfaces: M.2, NVMe, PCI Express 3.0, PCI Express 4.0, SATA
• RAID levels: 0, 1, 10
• Ethernet: 2.5 Gigabit Ethernet, Realtek RTL8125
• Wi-Fi: Wi-Fi 6E (802.11ax), MediaTek Wi-Fi 6E MT7902, 2.4/5/6 GHz
• Bluetooth: 5.3
• Audio: Realtek Audio CODEC, 2/4/5.1/7.1-channel
• Back panel USB ports: 8
• Onboard USB ports: 7
• USB 3.0/3.1 Gen 1/3.2 Gen 1 ports: 6
• External connectors: 1 x USB 3.2 Gen 2 Type-A, 1 x RJ-45, 1 x Q-Flash Plus button, 2 x USB 3.2 Gen 1 Type-A, 1 x Line In, 2 x SMA, 4 x USB 2.0, 1 x HDMI, 1 x Line Out
