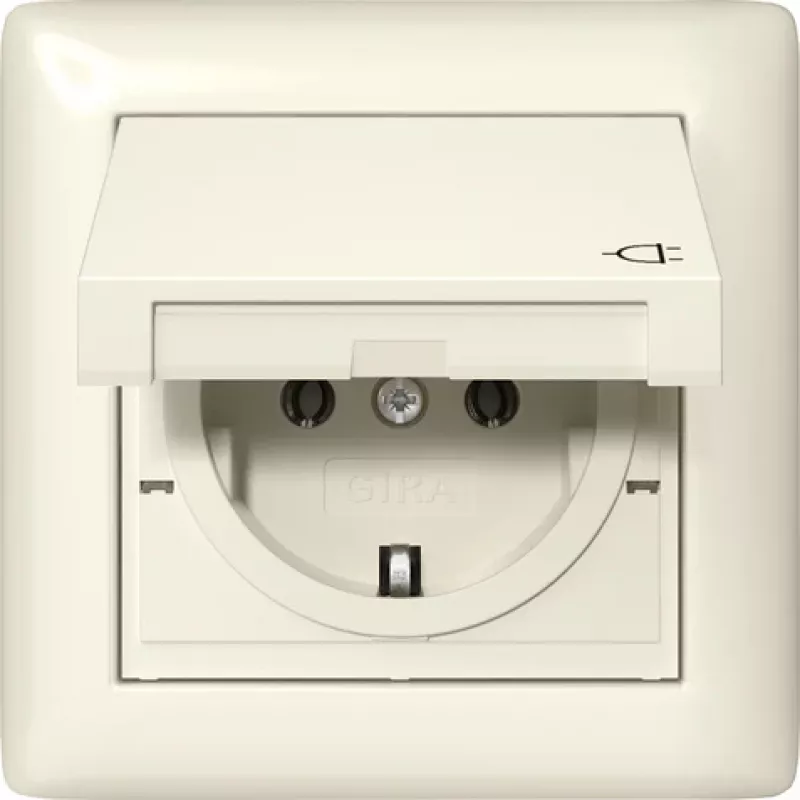

Gira 415701 SCHUKO-stopcontact met klapdeksel, IP44, zuiverwit

In damp rooms and sheltered outdoor areas, standard sockets can be unsafe. The Gira 415701 SCHUKO socket outlet with hinged lid solves this by providing IP44 protection against splashing water and foreign objects. The integrated child protection prevents accidental contact, making it suitable for households with children.

Who is it for

Electricians and homeowners who need a reliable, splash-proof socket for bathrooms, utility rooms, covered terraces, or garages. It fits standard flush-mounted boxes and integrates seamlessly with the Gira System 55 design range, allowing you to match your existing switches and frames.

Main features

• IP44 rated: protected against splashing water and solid objects over 1 mm.
• Hinged lid keeps the socket sealed when not in use.
• Integrated child protection: shutters block access to live parts.
• Rated for 250 V AC, 16 A, 50/60 Hz.
• Screw terminals accept up to 2.5 mm² rigid conductors.
• Single frame included, compatible with Gira System 55.
• Made of UV-resistant thermoplastic in pure white (RAL 9010).

Specifications

• Socket type: SCHUKO (Type F, CEE 7/3)
• Sockets quantity: 1
• Mounting type: Flush-mounted
• Connection type: Screw terminals
• Rated voltage: 250 V AC
• Rated current: 16 A
• Frequency: 50/60 Hz
• Ingress protection: IP44
• Material: Thermoplastic, UV-resistant
• Colour: Pure white (RAL 9010)
• Operating temperature: -25°C to +40°C
• Installation depth: 32 mm
• Standards compliance: DIN VDE 0620-1

Tips

For outdoor use, ensure the socket is installed in a protected location and the hinged lid is closed when not in use. Combine with a matching Gira System 55 frame for a uniform look.
