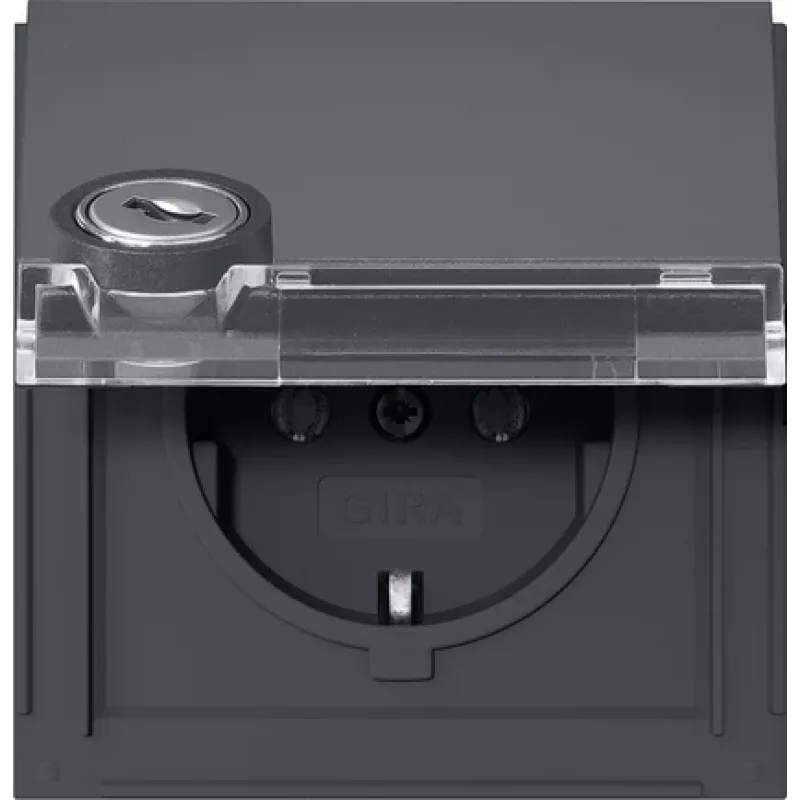

GIRA 446767 SCHUKO-stopcontact met sleutelslot, individuele sluiting, 16 A, 250 V, inbouw, thermoplast

Unauthorized use of electrical outlets can pose safety risks in public or semi-public areas. The GIRA 446767 SCHUKO socket outlet with key lock prevents access by locking the socket mechanism, ensuring only authorized personnel can connect devices.

Who is it for

This socket outlet is ideal for facilities where power access needs to be controlled, such as schools, hospitals, offices, or public buildings. It suits electricians and facility managers who require a reliable, key-operated solution within the Gira System 55 range.

Main features

• SCHUKO socket outlet (Type F) with integrated key lock
• Keyed different locking: each lock has a unique key, preventing unauthorized duplication
• Rated voltage: 250 V AC; rated current: 16 A
• Flush-mounted installation for a clean, integrated look
• Thermoplastic housing for durability and impact resistance
• Compatible with Gira System 55, E2, Event, Esprit, ClassiX, S-Color, and F100 design lines
• Includes 2 keys per lock

Specifications

• Socket type: SCHUKO (Type F)
• Functionality: With key lock
• Keying type: Keyed different
• Rated voltage: 250 V AC
• Rated current: 16 A
• Connection terminals: Screw terminals
• Mounting type: Flush-mounted
• Number of poles: 2P+E
• Material: Thermoplastic
• Protection rating: IP20
• Conductor cross-section: up to 2.5 mm² rigid conductors
• Number of keys included: 2
• Certification: VDE

Tips

For a complete installation, pair this socket insert with a compatible Gira cover plate that features a keyhole opening. The keyed different locking ensures each socket has a unique key, enhancing security in multi-user environments.
