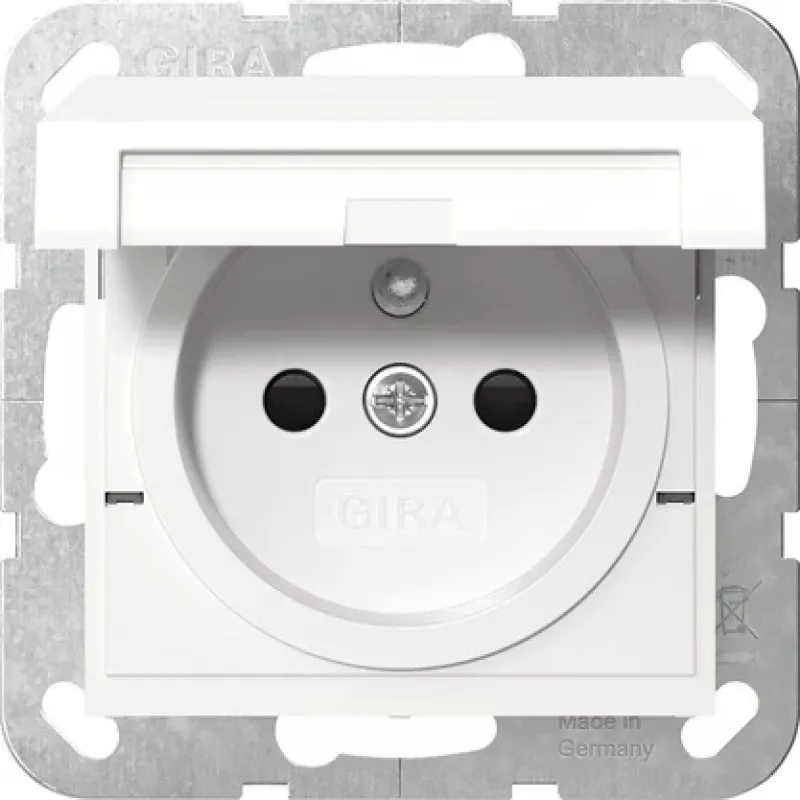

Gira 448803 Schuko-stopcontact met klepdeksel, randaarde, System 55, reinwit glanzend

Designed for flush-mounted installation, this Gira System 55 socket outlet combines a Schuko socket with an integrated hinged lid and increased touch protection. The earthing pin ensures safe operation, while the lid provides IP44 protection when closed. Rated for 250 V AC and 16 A, it features screw terminals and a halogen-free thermoplastic construction in pure white glossy.

Overview

The Gira 448803 is a single Schuko socket outlet with earthing pin, part of the System 55 range. It is intended for flush-mounted installation in standard wall boxes. The socket includes a hinged lid (Klappdeckel) that, when closed, provides protection against splashing water (IP44). With the lid open, the protection rating is IP20. The socket also features increased touch protection, which helps prevent accidental contact with live parts, making it suitable for use in homes and offices.

What stands out

• Hinged lid for IP44 protection when closed
• Increased touch protection (child safety)
• Compatible with Gira System 55 cover frames
• Halogen-free thermoplastic material
• VDE certified

Technical details

• Socket type: Schuko (Type F)
• Earthing type: Earthing pin
• Rated voltage: 250 V AC
• Rated current: 16 A
• Mounting type: Flush-mounted
• Connection type: Screw terminals
• IP rating: IP44 (lid closed), IP20 (lid open)
• Number of sockets: 1
• Material: Thermoplastic
• Colour: Pure white glossy
• Halogen-free: Yes
• Operating temperature: -5 °C to +40 °C
• Terminal capacity: Up to 2.5 mm² rigid conductors
• Installation depth: Approx. 32 mm
• Certification: VDE

Our verdict

A reliable Schuko socket with added safety features, ideal for flush-mounted installations in Gira System 55 environments.
