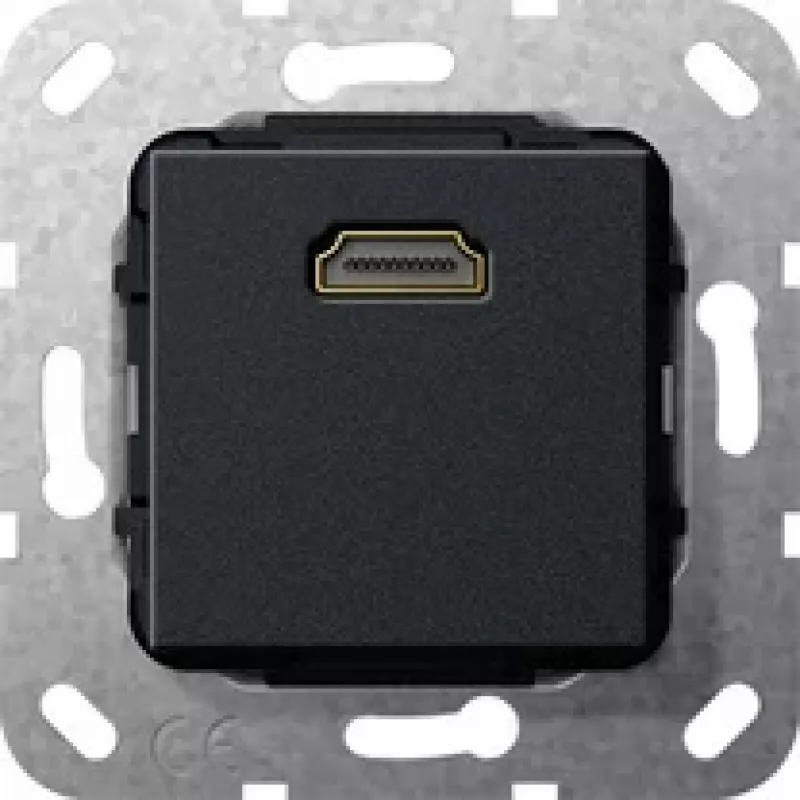

Gira HDMI wandplaatinzet 2.0a+ HDR, 1-poort, matzwart 567010

Flush-mounted HDMI connections often suffer from signal loss and unsightly cable clutter. This Gira insert solves both by providing a clean, fixed HDMI port that supports high-bandwidth 4K HDR signals, ensuring reliable audio/video transmission through your wall.

Who is it for

This insert is ideal for integrators and homeowners who want a permanent, professional HDMI connection point in a wall, compatible with Gira System 55 frames and other standard flush boxes. It suits home theater setups, conference rooms, and any installation requiring a durable, high-performance HDMI pass-through.

Main features

• HDMI 2.0a+ with HDR support for 4K UHD at 60 Hz
• HDCP 2.2 compliant for protected content
• 18 Gbit/s maximum data rate
• Single HDMI Type A female connector on front
• Rear integrated cable with HDMI Type A male connector, approx. 15 cm
• Matte black thermoplastic construction
• Flush-mounted for standard flush boxes
• Supports ARC, CEC, and Deep Color (up to 48-bit)

Specifications

• Product type: HDMI wall plate insert
• HDMI version: 2.0a+
• HDR support: Yes
• HDCP support: 2.2
• Maximum resolution: 4K UHD (2160p)
• Maximum refresh rate at 4K: 60 Hz
• Maximum data transfer rate: 18 Gbit/s
• Number of ports: 1
• Front connector: HDMI Type A female
• Rear connector: HDMI Type A male (integrated cable)
• Rear cable length: 15 cm
• Colour: Matte black
• Material: Thermoplastic
• Mounting type: Flush-mounted
• Compatibility: Gira System 55, E2, Event, Esprit, S-Color, F100 (requires specific cover frame)
• Audio Return Channel (ARC): Yes
• Consumer Electronics Control (CEC): Yes
• Deep Color: Yes (up to 48-bit)
• Application: Audio/video signal transmission

Tips

Pair this insert with a matching Gira cover frame from the System 55 range for a seamless look. Ensure the flush box depth accommodates the rear cable and connector. For installations requiring longer cable runs, use a high-quality HDMI extension cable rated for 18 Gbit/s.
