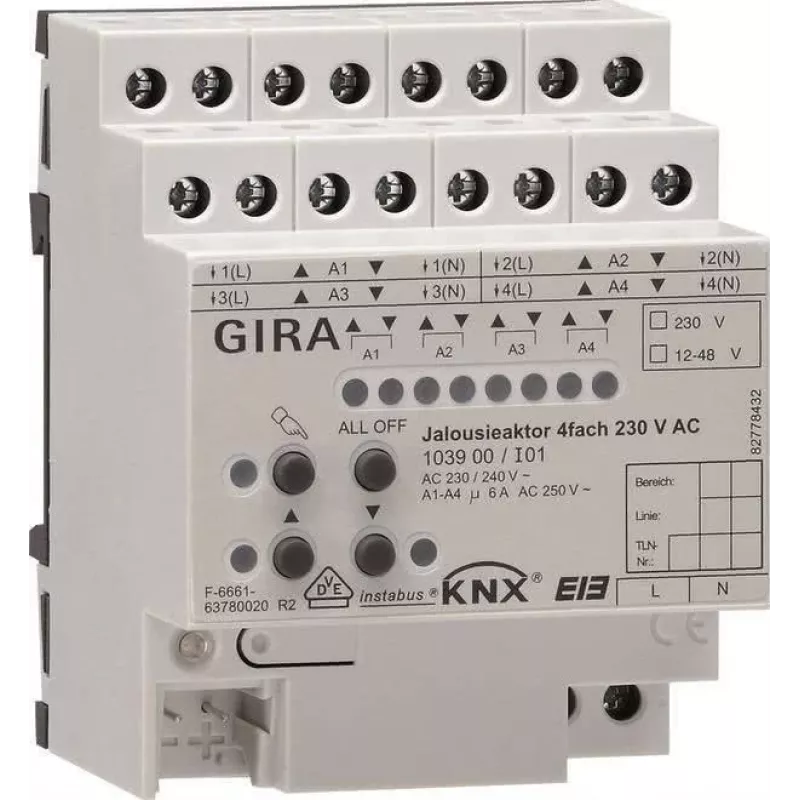

GIRA jaloezieactor 4-voudig REG KNX/EIB 230V AC 103900

KNX shutter/blind actuator with four independent channels for controlling 230 V AC drives. Each channel provides up/down, stop, and slat adjustment, with manual operation via buttons on the device and position feedback for precise automation.

Advantages

DIN rail mounting (4 TE) saves space in distribution boards. Potential-free relay outputs switch up to 6 A per channel (cos φ = 0.6), suitable for a wide range of shutter and blind motors. Integrated scene control and safety functions for wind, rain, frost, and sun protection enhance building automation.

Suitable for

• KNX building automation projects
• Controlling 230 V AC shutter, blind, and awning drives
• Residential and commercial installations requiring multi-channel blind control

Key specifications

• Product type: KNX Shutter/Blind Actuator
• Number of channels: 4
• Mounting type: DIN Rail (REG)
• Bus system: KNX (EIB)
• Operating voltage (load): 230 V AC
• Switching current per channel: 6 A (cos φ = 0.6)
• Output type: Relay (potential-free)
• Control functions: Up/Down, Stop, Slat Adjustment
• Power supply (device): KNX Bus Voltage (24-30 V DC)
• Width (DIN rail units): 4 TE
• Protection class: IP20
• Ambient temperature: 0 to +45 °C
• Storage/transport temperature: -25 to +70 °C
• Connection type: Screw terminals
• Programming software: ETS
• Manual operation: Yes (via buttons on device)
• Integrated scene control: Yes
• Position feedback: Yes
• Safety functions: Wind, Rain, Frost, Sun Protection

Recommendations

For reliable KNX blind control, ensure proper bus power supply and use ETS for commissioning. Verify motor load does not exceed 6 A per channel.
