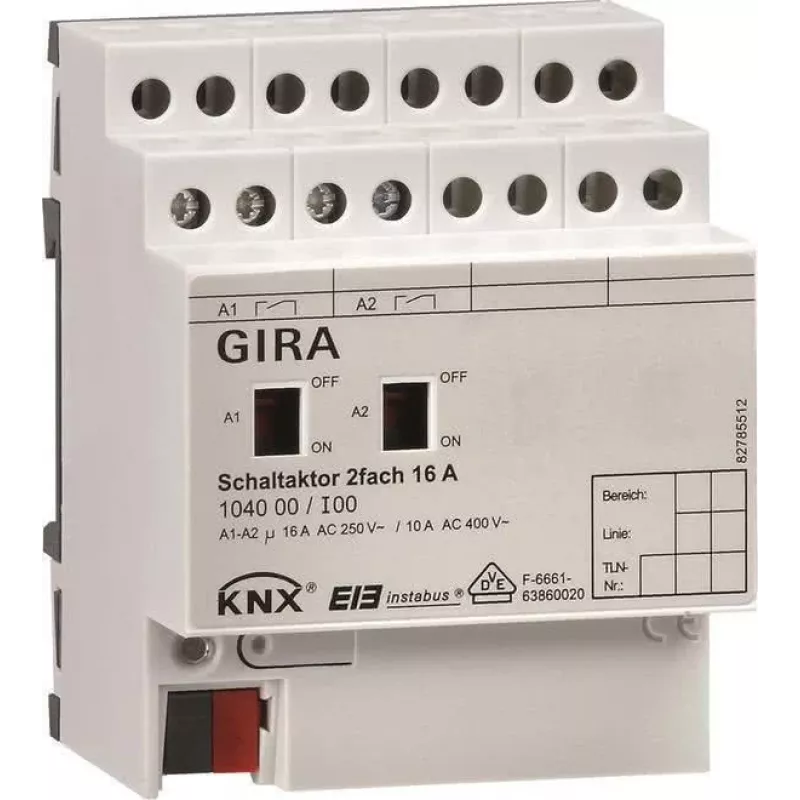

GIRA KNX schakelactor 2-kanaals 16A DIN-rail 104000

For KNX installations that demand compact, high-current switching without compromise, the GIRA 104000 two-channel actuator delivers 16 A per channel in a slim 2-module DIN rail housing. Unlike bulkier multi-channel units, it keeps cabinet footprint minimal while offering manual override and integrated logic — a practical choice for lighting and load control in residential and commercial projects.

Highlights

• Two independent 16 A switching channels for ohmic, inductive, and capacitive loads
• Manual push-button operation and status feedback for on-site testing
• Integrated logic (AND, OR, XOR, gate) and time functions (delays, staircase light)
• Scene functionality for flexible lighting scenarios
• Bus-powered (21–30 V DC) — no auxiliary supply needed

In daily use

Each channel handles up to 3680 W of resistive load, 1380 VA inductive, or 400 W LED, making it suitable for lighting circuits, socket outlets, and small motors. Screw terminals accept solid or stranded conductors up to 2.5 mm², and the IP20 enclosure is intended for distribution boards. The actuator responds to KNX telegrams and can be configured via ETS; manual buttons allow direct switching even before commissioning.

Full specifications

• Product type: KNX switching actuator
• Bus system: KNX (TP)
• Number of channels: 2
• Switching current per channel: 16 A
• Switching voltage: 250 V AC
• Mounting: DIN rail (REG), width 2 TE (approx. 36 mm)
• Power supply: KNX bus, 21–30 V DC
• Supported load types: ohmic, inductive, capacitive
• Max. ohmic load per channel: 3680 W
• Max. inductive load per channel: 1380 VA
• Max. LED load per channel: 400 W
• Manual operation: yes, via push buttons
• Status feedback: yes
• Protection class: IP20
• Operating temperature: -5 °C to +45 °C
• Connection type: screw terminals
• Integrated logic functions: AND, OR, XOR, gate
• Integrated time functions: switch-on/off delay, staircase light
• Scene functionality: yes

Final note

With its compact form, robust switching capacity, and advanced KNX features, the GIRA 104000 is a reliable building block for modern automation — engineered to perform consistently in demanding environments.
