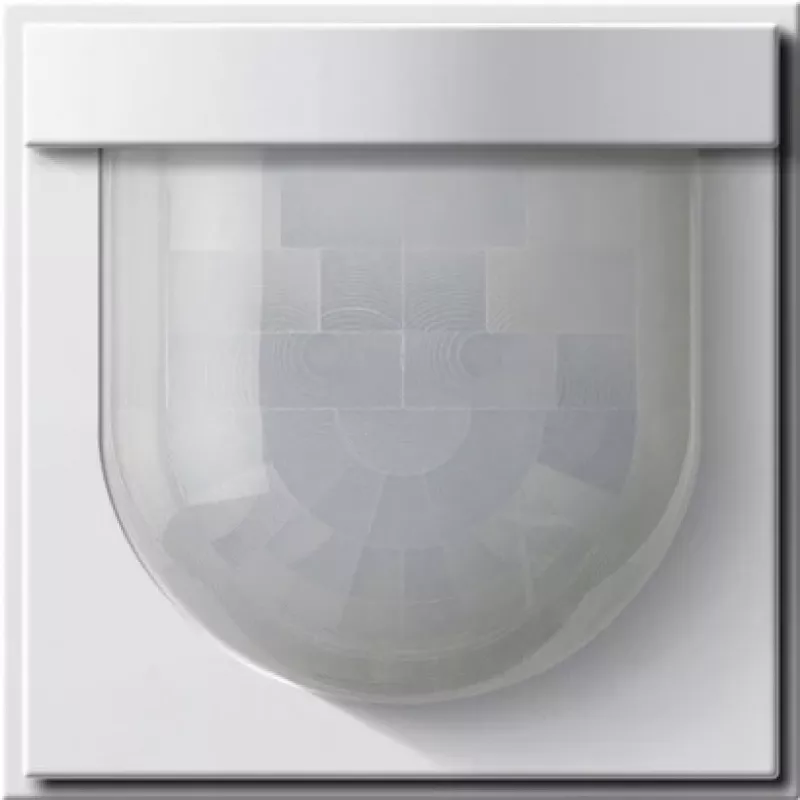

Gira S3000 bewegingsmelder 2,20 m TX_44 zuiverwit 537566

Motion detector for flush-mounted installation in the Gira TX_44 design line, with a standard mounting height of 2.20 m and a detection angle of 180°. It offers a detection range of approximately 12 m in diameter and is suitable for switching lighting loads up to 2300 W (resistive) or 180 W for LED lamps above 2 W.

Advantages

Teach-in function allows the current brightness to be stored as the switching threshold. Short-term operation mode is available for special applications. The twilight sensor is adjustable from about 1 to 1000 lux, and the switch-off delay can be set from about 10 seconds to 30 minutes.

Suitable for

• Indoor and protected outdoor areas with flush-mounted boxes
• Automatic lighting control in corridors, stairwells, and entrance areas
• Use with Gira TX_44 cover frames for a uniform appearance

Key specifications

• Operating voltage: 230 V AC, 50/60 Hz
• Switching capacity: 2300 W resistive, 180 W LED (>2 W)
• Protection class: IP44 with TX_44 cover frame
• Material: thermoplastic, shatter-proof
• Standby power consumption: approx. 0.5 W
• Operating temperature: -20 °C to +45 °C

Recommendations

Combine with Gira TX_44 cover frames in pure white for a consistent look. Ensure the mounting height of 2.20 m is maintained for optimal detection performance.
