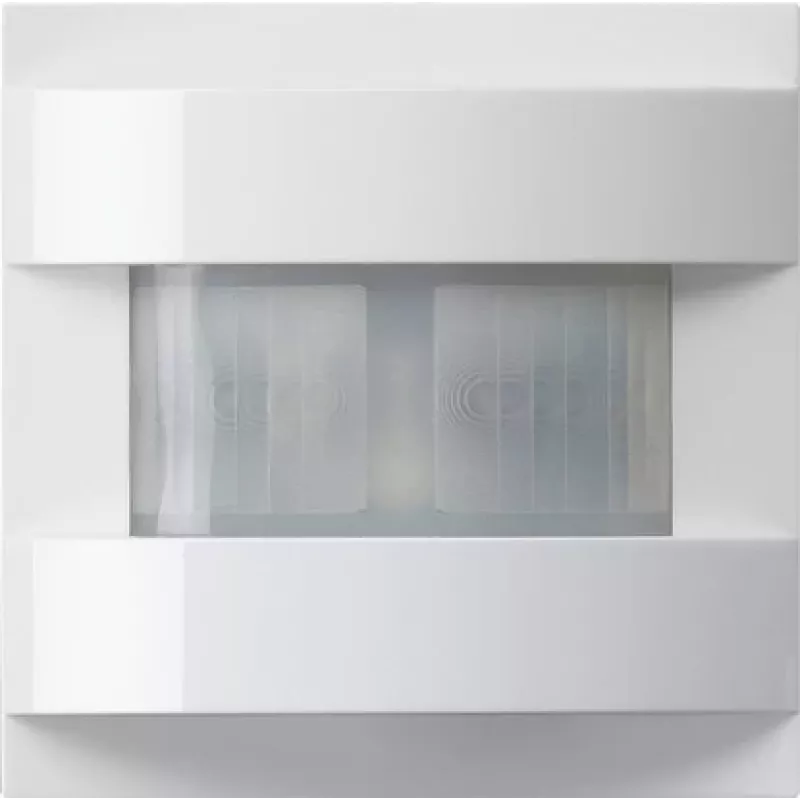

Gira S3000 bewegingsmelder-opzet, reinwit 5373112

Automatic lighting control often fails because sensors are either too sensitive or not sensitive enough, leaving rooms dark or lights burning unnecessarily. The Gira S3000 Motion Detector Attachment solves this by combining precise motion detection with adjustable brightness and time settings, ensuring lights switch on only when needed and off after a set delay.

Who is it for

This attachment is for electricians and homeowners using the Gira System 55 flush-mounted range who want to add motion-activated switching to their lighting circuits. It suits hallways, staircases, bathrooms, and other areas where hands-free operation and energy savings are desired.

Main features

• 180° detection angle with a forward range of approximately 12 m and side range of 6 m
• Adjustable brightness threshold from 0 to 1000 lux, with teach-in function for current light level
• Adjustable time delay from 10 seconds to 30 minutes
• Switching capacity up to 2300 W for incandescent/halogen and 400 W for LED loads
• Designed for mounting at a standard height of 1.10 m on a flush-mounted insert (sold separately)
• Pure white (RAL 9010) thermoplastic housing, shatter-proof

Specifications

• Product type: Motion detector attachment
• Series: Gira S3000
• Mounting type: Flush-mounted insert (insert not included)
• Standard mounting height: 1.10 m
• Colour: Pure white (RAL 9010)
• Detection angle: 180°
• Detection range forward: approx. 12 m
• Detection range side: approx. 6 m
• Brightness threshold: approx. 0–1000 lux, adjustable
• Time delay: approx. 10 s – 30 min, adjustable
• Switching capacity incandescent/halogen: 2300 W
• Switching capacity LED: 400 W (RC)
• Operating voltage: 230 V AC, 50/60 Hz (via insert)
• Protection class: IP20
• Material: Thermoplastic, shatter-proof
• Compatibility: Gira System 55
• Functions: Automatic light switching, short-term operation, teach-in, test mode

Tips

For optimal coverage, install the detector at the recommended height of 1.10 m and avoid placing it near heat sources or air currents that could cause false triggers. Use the teach-in function to set the brightness threshold to the current ambient light level for precise control.
