Gira System 3000 S3000 bewegingsmelder-opzet 2,20 m Comfort Bluetooth TX_44 zuiverwit 537666

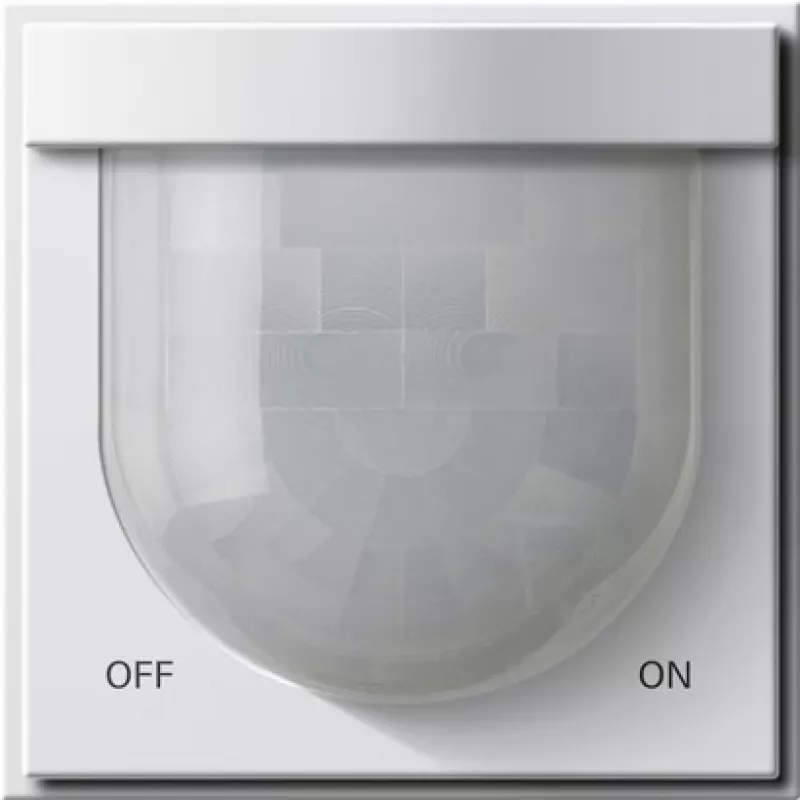

Automate lighting in indoor and protected outdoor areas with the Gira System 3000 S3000 motion detector attachment. This flush-mounted unit detects movement and ambient light, switching connected loads based on presence and brightness. Configure via Bluetooth using the Gira System 3000 app for tailored automation.

Who is it for

Electricians and homeowners seeking reliable, app-configurable motion detection for Gira System 3000 inserts. Ideal for hallways, bathrooms, and covered outdoor spaces.

Main features

• 360° detection angle with up to 12 m diameter range at 2.20 m mounting height
• Comfort operating mode with adjustable brightness threshold (1–1000 Lux) and follow-up time (10 s – 30 min)
• Bluetooth connectivity for configuration via Gira System 3000 app
• Functions: automatic switching, presence simulation, brightness-dependent switching, teach-in, sensitivity adjustment, short-term operation, test mode
• Pure white (RAL 9010) thermoplastic, UV-resistant
• Compatible with Gira System 3000 switching, push-button, and auxiliary inserts

Specifications

• Product type: Motion detector attachment
• Series: Gira System 3000
• Design line: Gira TX_44
• Mounting type: Flush-mounted
• Detection angle: 360°
• Detection range: approx. 12 m diameter at 2.20 m height
• Recommended mounting height: 2.20 m
• Brightness threshold: adjustable, approx. 1–1000 Lux
• Follow-up time: adjustable, approx. 10 s – 30 min
• Material: thermoplastic (PC), UV-resistant
• Colour: pure white (RAL 9010)

Tips

For outdoor use, ensure installation with TX_44 sealing set and frame to achieve IP44 protection. Pair with a compatible Gira System 3000 insert for full functionality.
