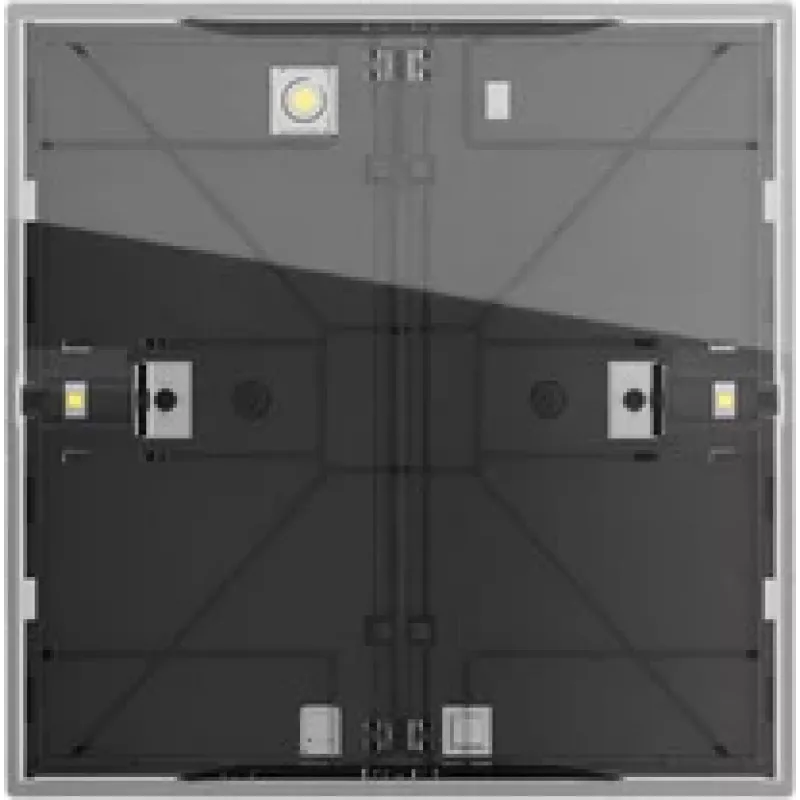

Gira tastsensor 4 Comfort 1-voudig OneKNX KNX tastsensor met display, antraciet 534100

The Gira Tastsensor 4 Komfort 1-gang OneKNX is a KNX push-button sensor with a high-resolution color graphic display. It integrates temperature, humidity, proximity, and brightness sensors, enabling intelligent building control and automation.

Advantages

Capacitive touch operation with a configurable rocker for one or two functions. The display shows temperature, humidity, time, date, status, and text messages. Backlit display and operating surfaces ensure visibility in low light. Powered directly via the KNX bus, requiring no additional power supply.

Suitable for

• KNX smart home and building automation
• Control of lighting, blinds, heating, and scenes
• Flush-mounted installation in standard boxes
• Compatible with Gira System 55, E2, E3, Event, and Esprit design lines

Key specifications

• Product type: KNX push-button sensor with display
• Series: Gira Tastsensor 4 Komfort
• Operating surfaces: 1-gang (configurable for 1 or 2 functions)
• Display: high-resolution color graphic display
• Integrated sensors: temperature, humidity, proximity, brightness
• Operating principle: capacitive touch
• Configurable functions: switching, dimming, blind control, value transmitter, scene recall, temperature control, fan control
• Power supply: via KNX bus
• Mounting: flush-mounted
• Backlight: yes
• Configuration: ETS (Engineering Tool Software)
• Material: high-quality plastic
• Color: anthracite
• Operating temperature: 0 °C to +45 °C

Recommendations

For a complete installation, pair with a compatible Gira frame and rocker from the System 55, E2, E3, Event, or Esprit ranges.
